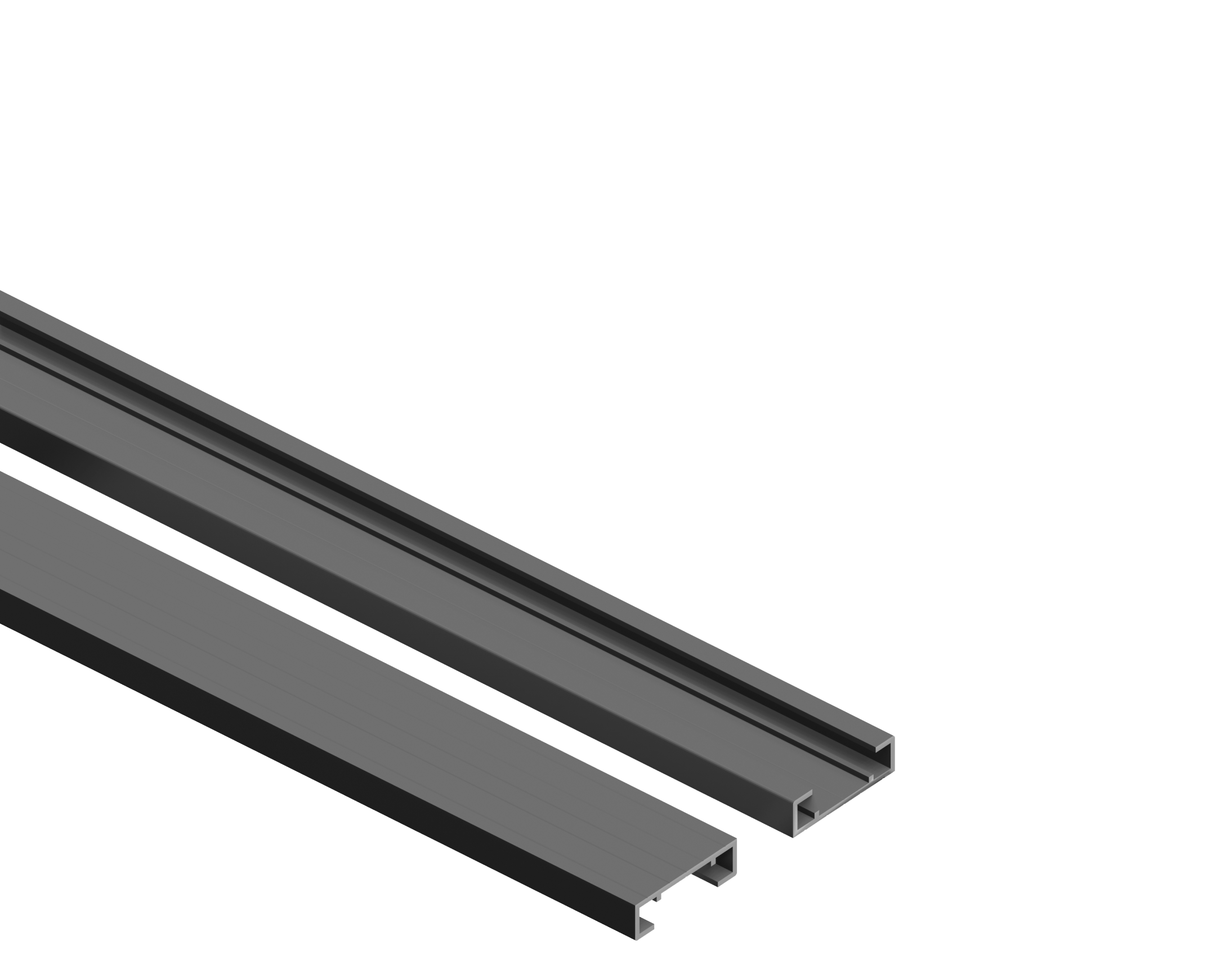

A100
Joist-Beam
2 X 1/2" X 20'
item# A100-20-58
item# A100-20-58
A110
Joist-Beam
2 X 1" X 20'
item# A110-20-58

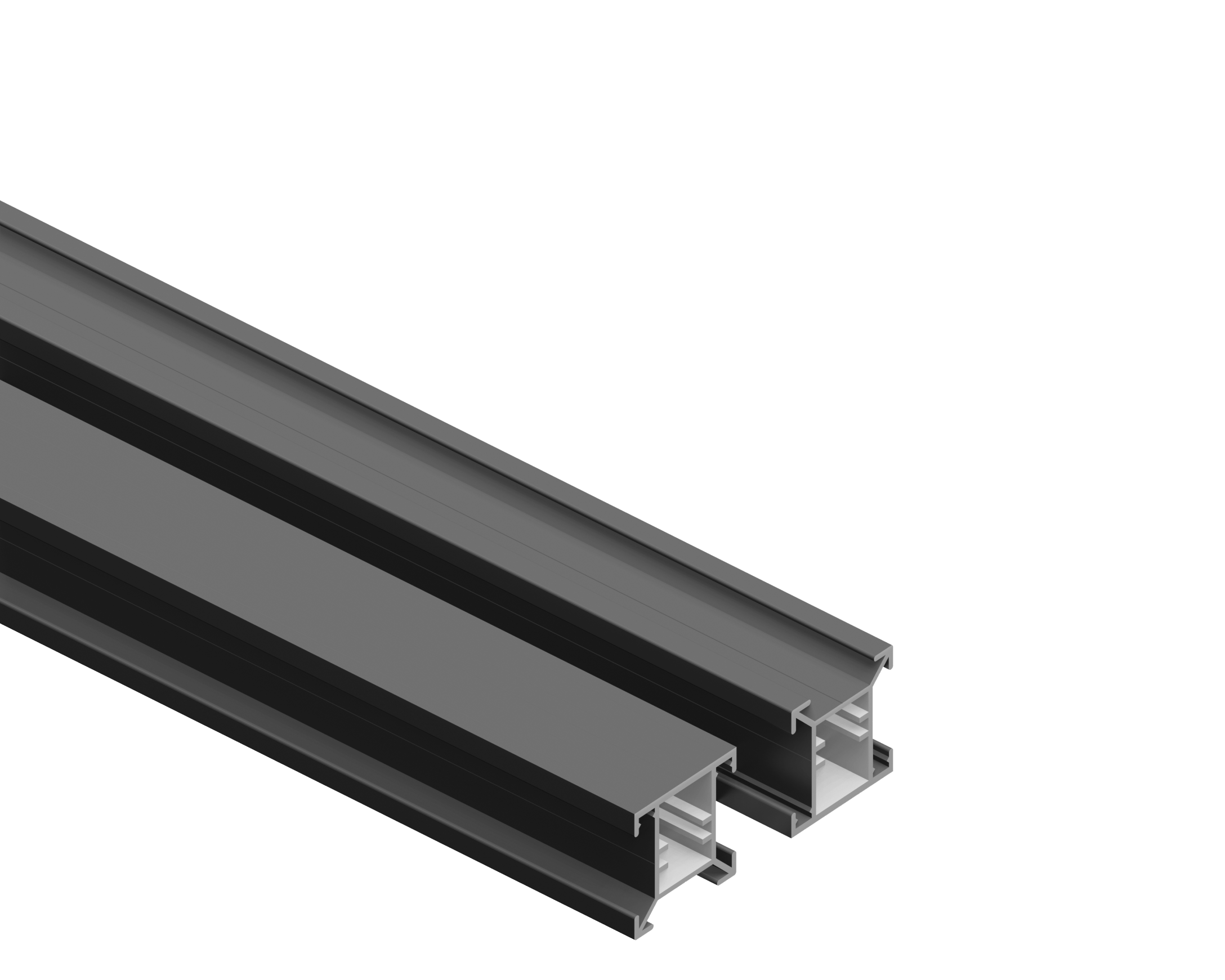

A120
Joist-Beam
2 X 2" X 20'
item# A120-20-58

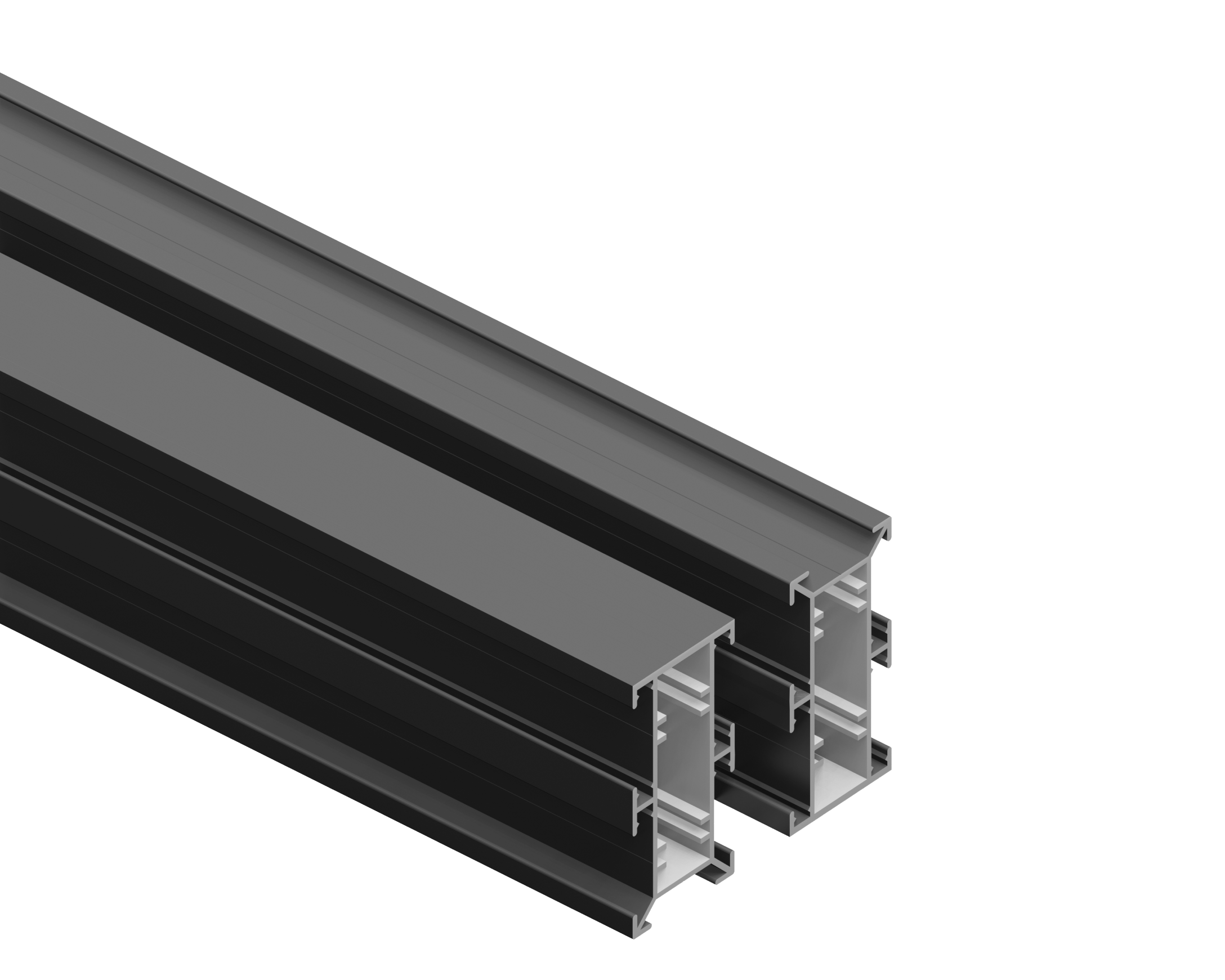

A130
Joist-Beam
2 X 4" X 20'
item# A130-20-58

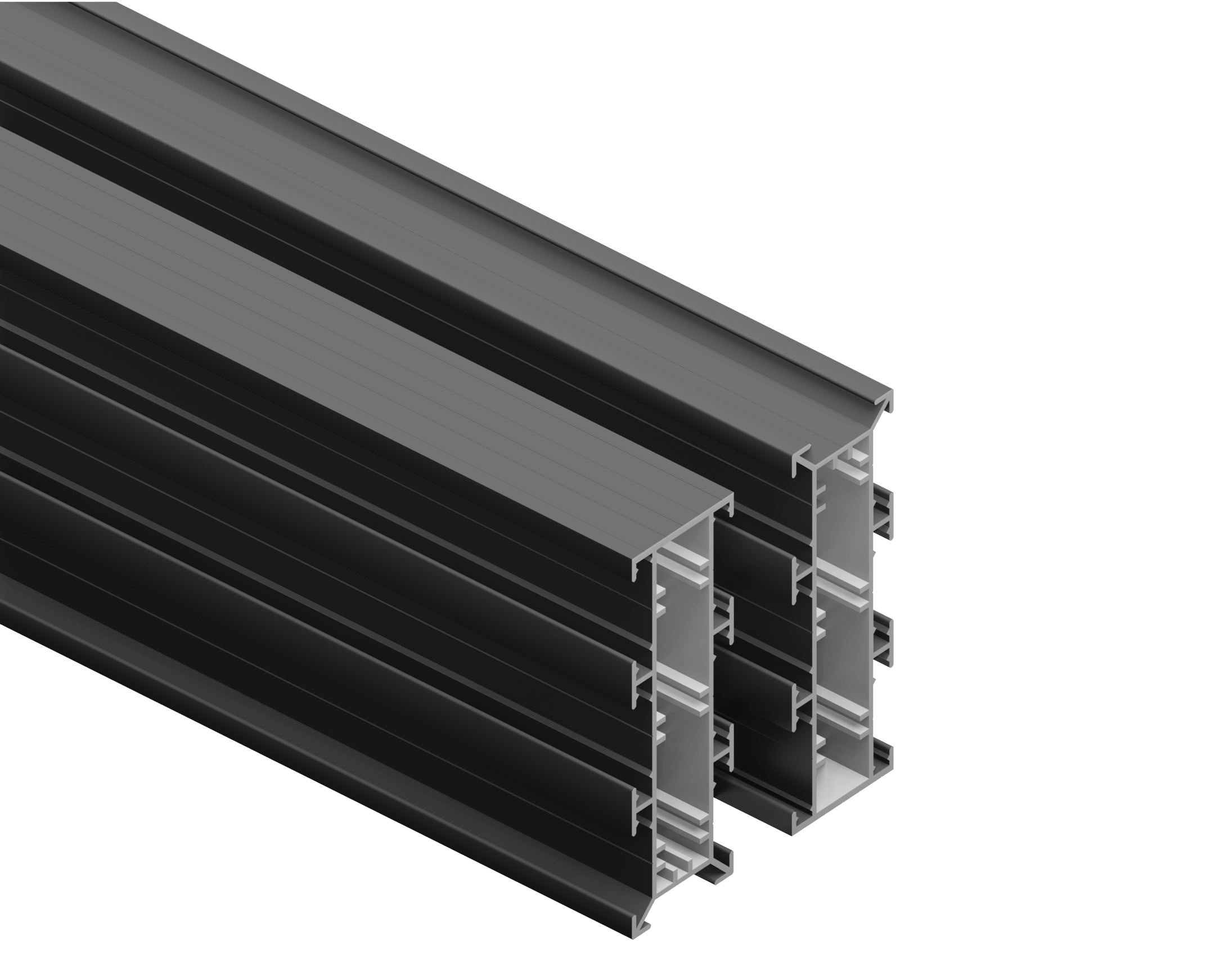

A140
Joist-Beam
2 X 6" X 20'
item# A140-20-58

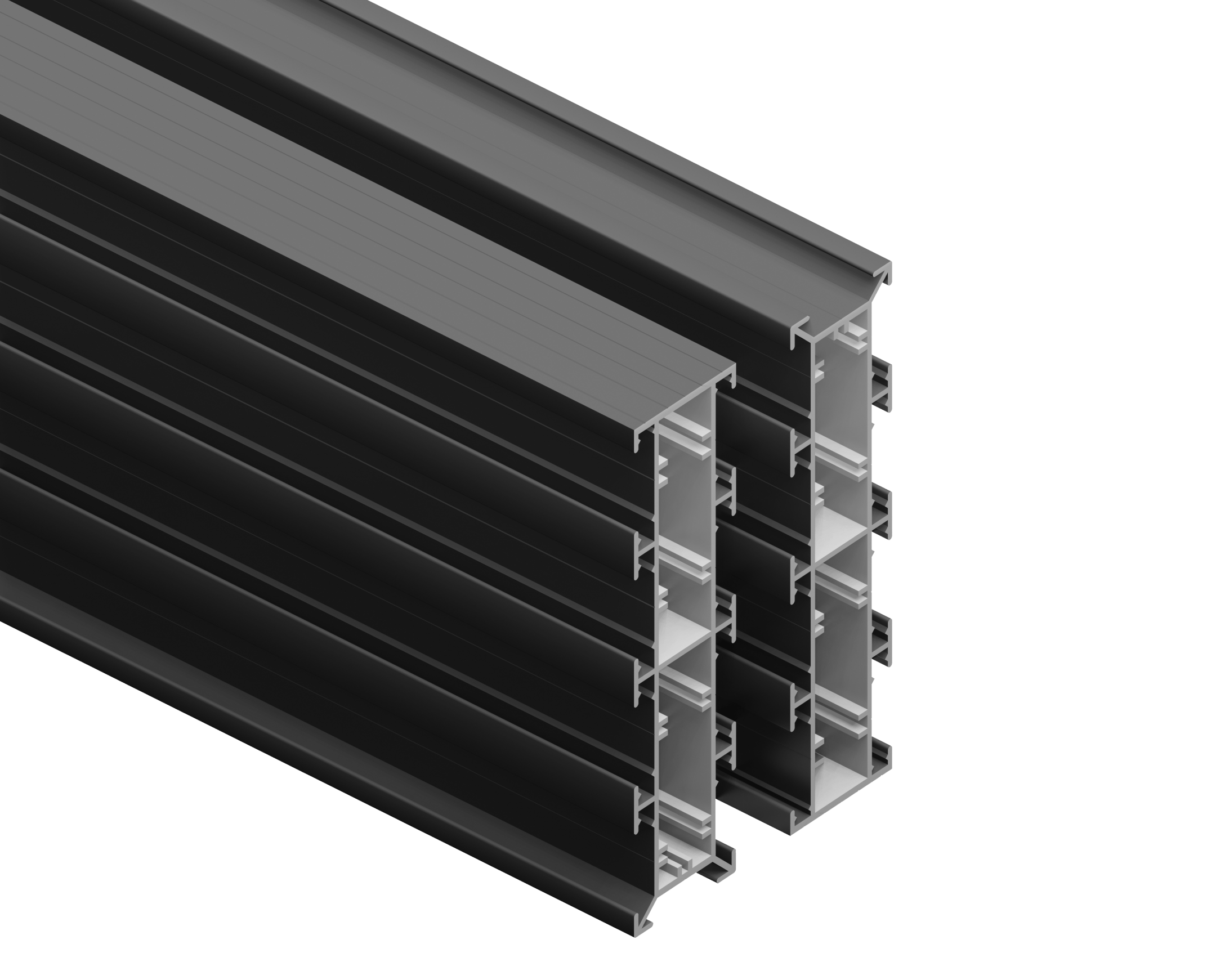

A150
Joist-Beam
2 X 8" X 20'
item# A150-20-58
A194
Post
6 X 6" X 10'
item# A194-10-28
A195
Post
6 X 6" X 20'
item# A195-20-58
A201
QWICKBUILD 90° BRACKET
A multi-purpose bracket for connecting profiles
Included: A401-50X Screws
item# A201-10X

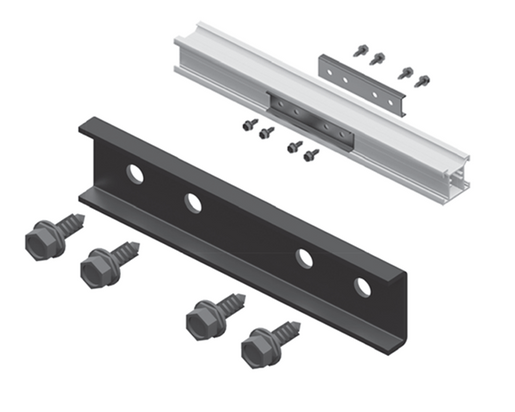

A202
QWICKBUILD JOINER BRACKET
A bracket for connecting profiles end-to-end
Included: A401-50X Screws
item# A202-10X

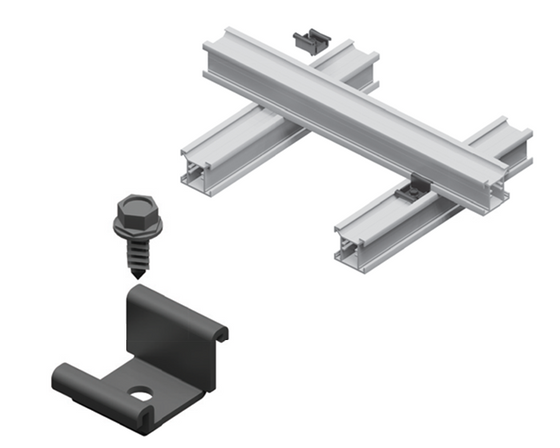

A203
QWICKBUILD JOIST ANCHOR BRACKET
A bracket for connecting joists to beams
Included: A401-50X Screwsitem# A203-25X

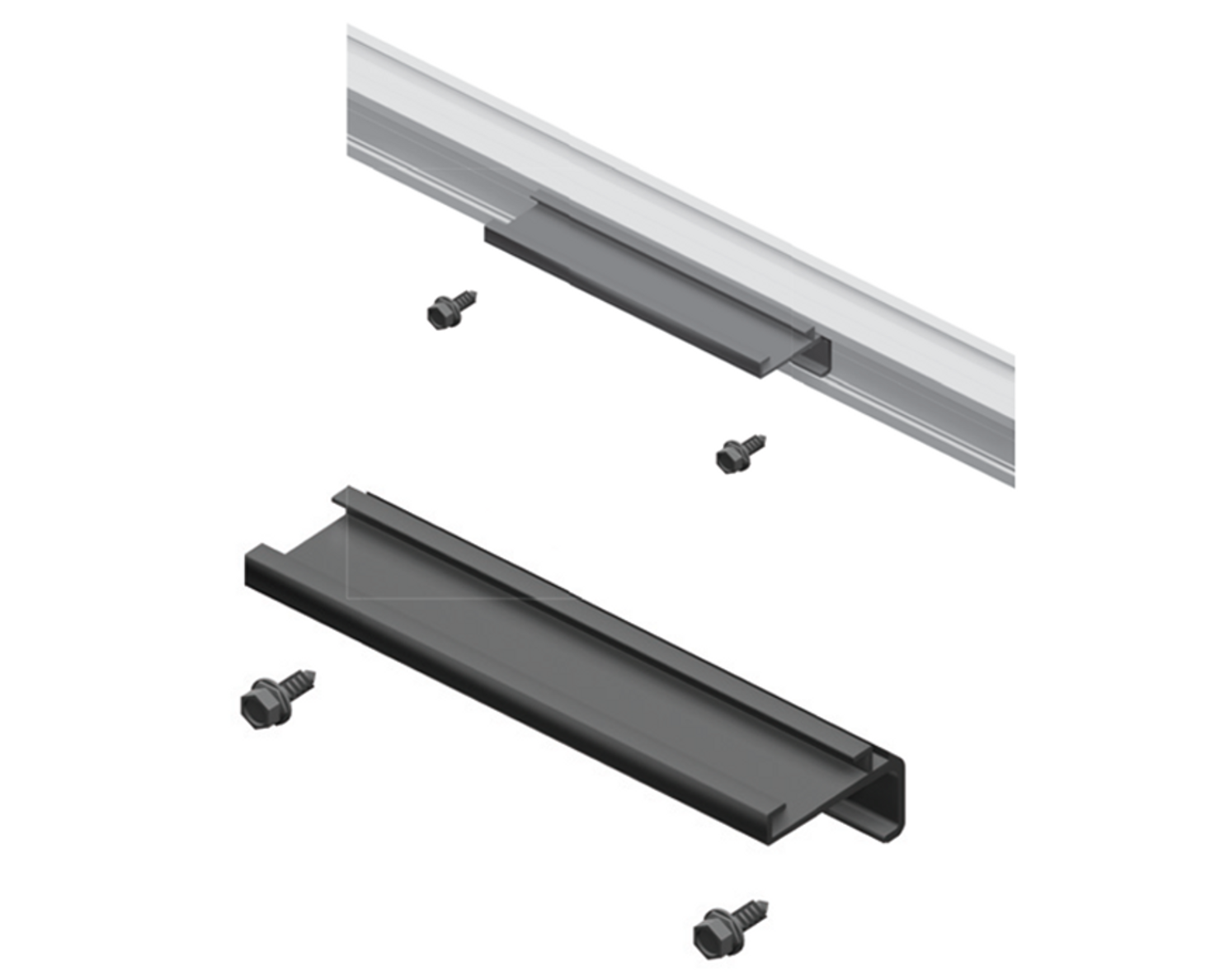

A205
QWICKBUILD DOUBLE JOIST BRACKET
A bracket that creates a double joist to support board-ends when using TwistClips
Included: A401-50X Screws
item# A205-20X

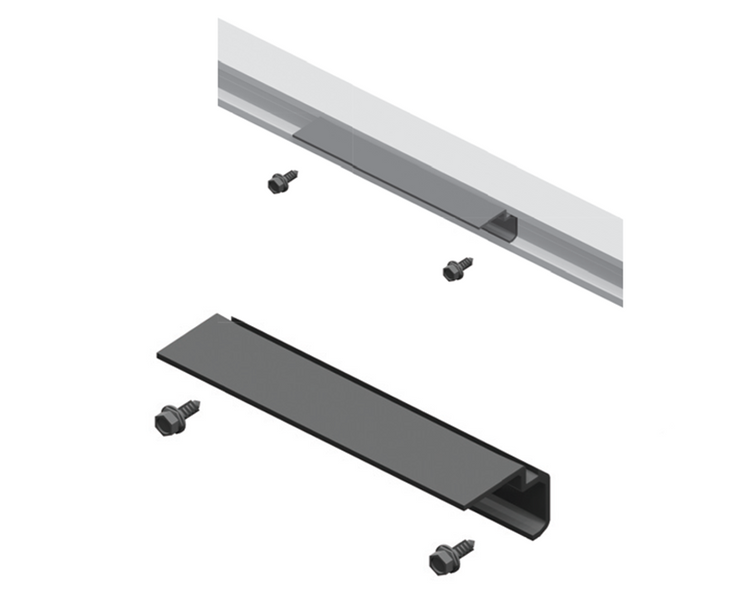

A206
QWICKBUILD DOUBLE JOIST BRACKET
A bracket that creates a double joist to support board-ends &/or for fixing trim under a rim joist
Included: A401-50X Screws
item# A206-20X
A207
QWICKBUILD BRACE PLATE BRACKET
A bracket for connecting profiles top-to-bottom in parallel
Included: A401-50X Screws
item# A207-10X
A208
QWICKBUILD TRIM BRACKET
A bracket that supports a trim board
item# A208-10X

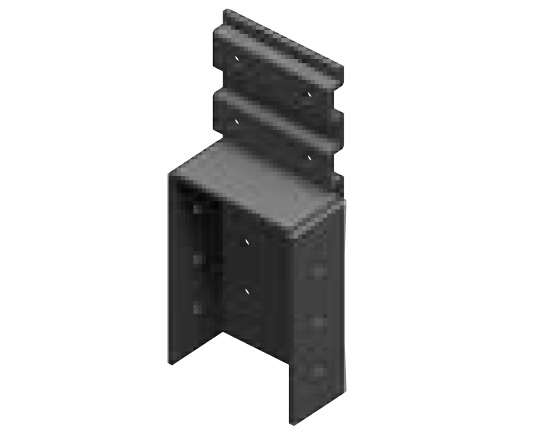

A210
QWICKBUILD BEAM TO A194 POST
4 x 4"
item# A210

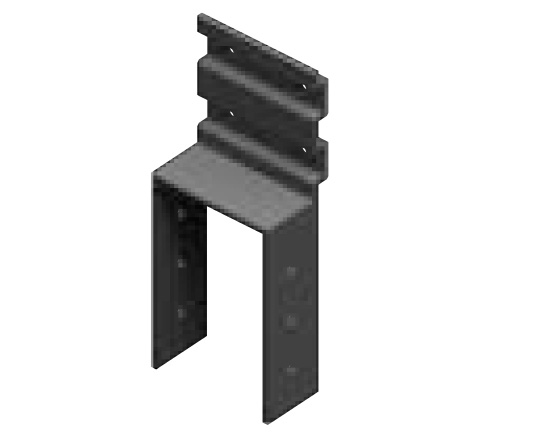

A211
QWICKBUILD BRACKET B FOR BEAM TO A194 POST
4 x 4"
item# A211

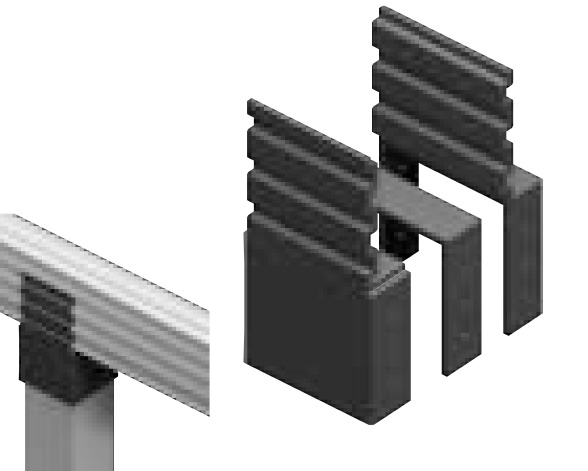

A212
QWICKBUILD BRACKET KIT FOR BEAM TO A195 POST
6 x 6"
item# A212

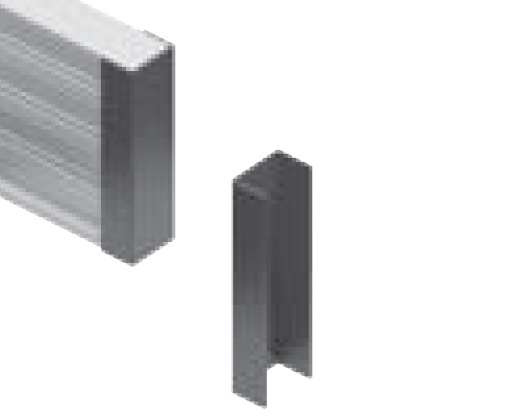

A220
QWICKBUILD BEAM END CAP
Finishing over open-ends of beams
item# A220

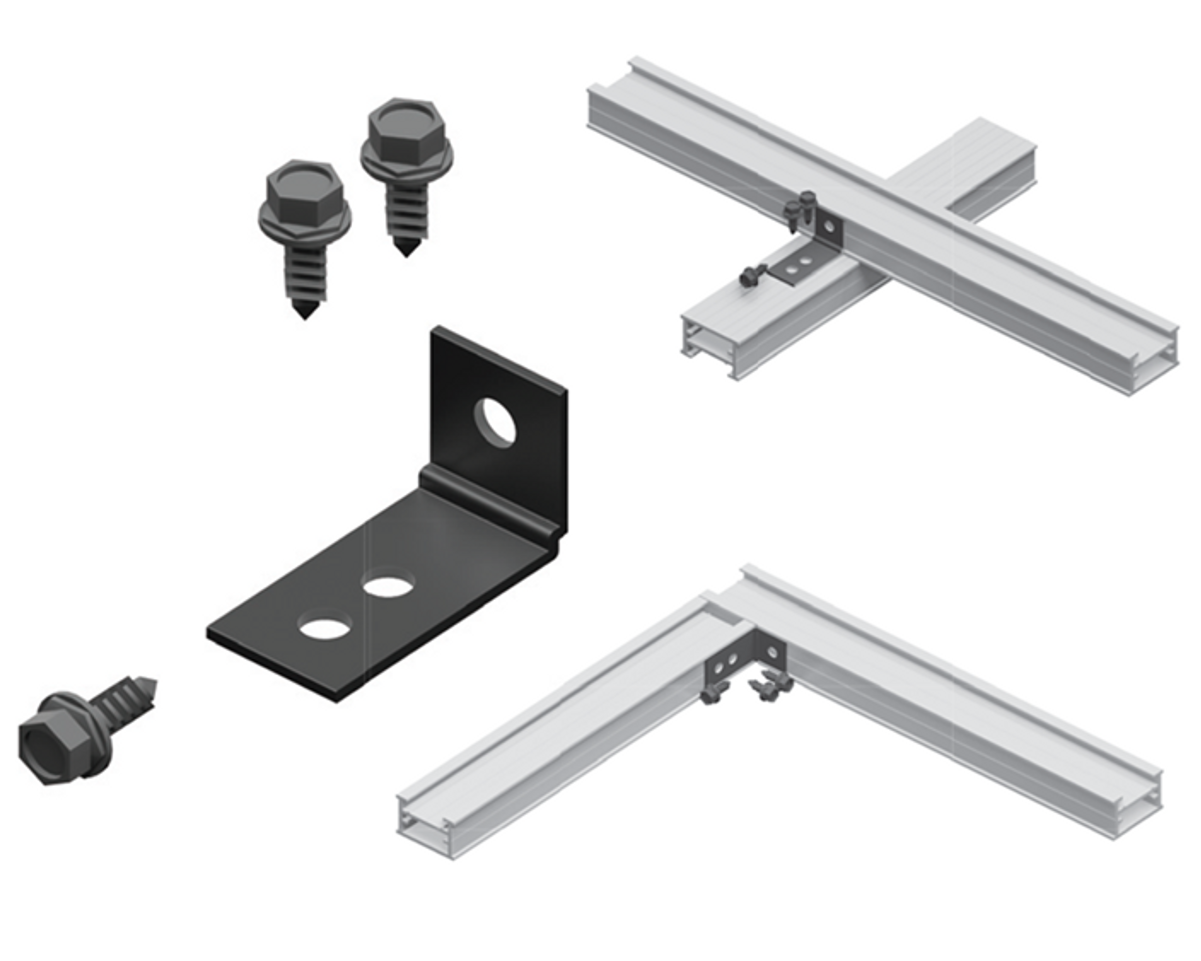

A301
QWICKBUILD 90° BRACKET & JOIST ANCHOR - FOR A110
A multi-purpose bracket for A110 profiles corner connections & joist-beam connections
Included: A401-50X Screws
item# A301-10X

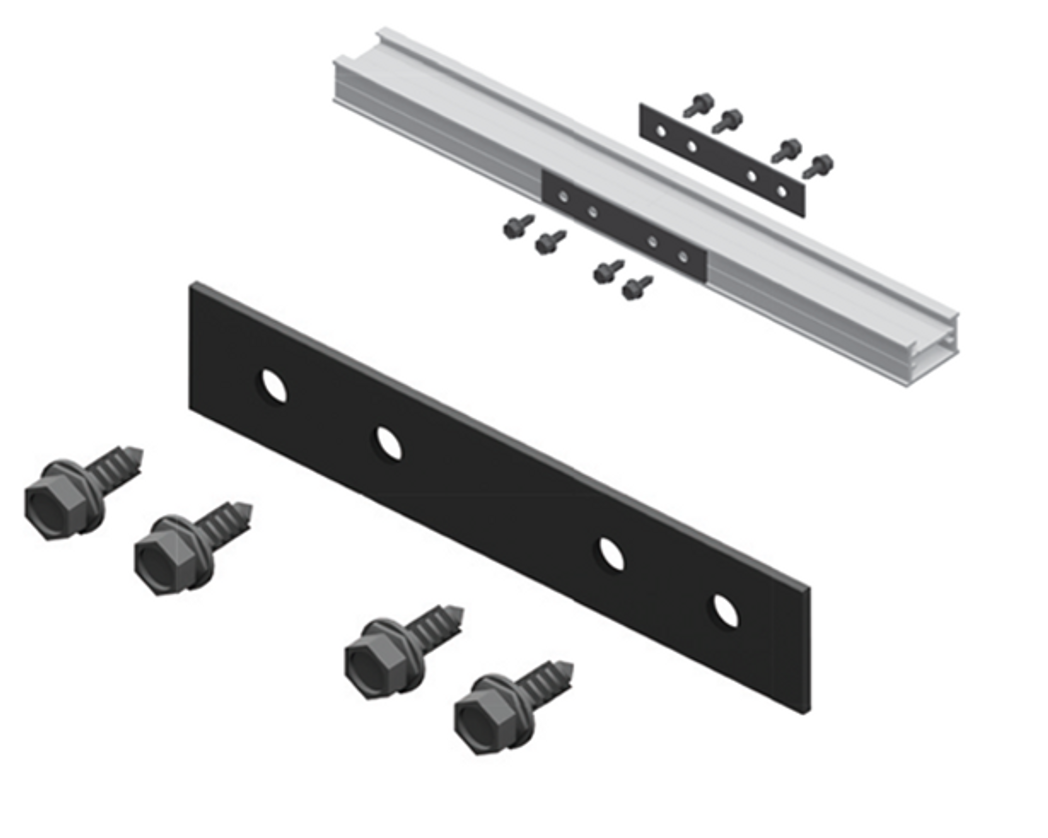

A302
QWICKBUILD JOINER BRACKET FOR A110
A bracket for connecting A110 profiles end-to-end
Included: A401-50X Screws
item# A302-10X

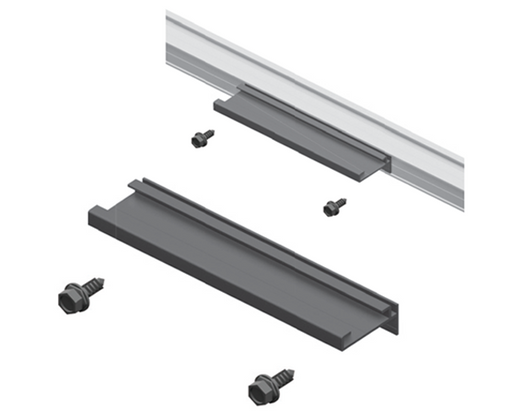

A306
QWICKBUILD DOUBLE JOIST BRACKET FOR A110
A bracket that creates a double joist to support board-ends when using TwistClips
Included: A401-50X Screws
item# A306-20X

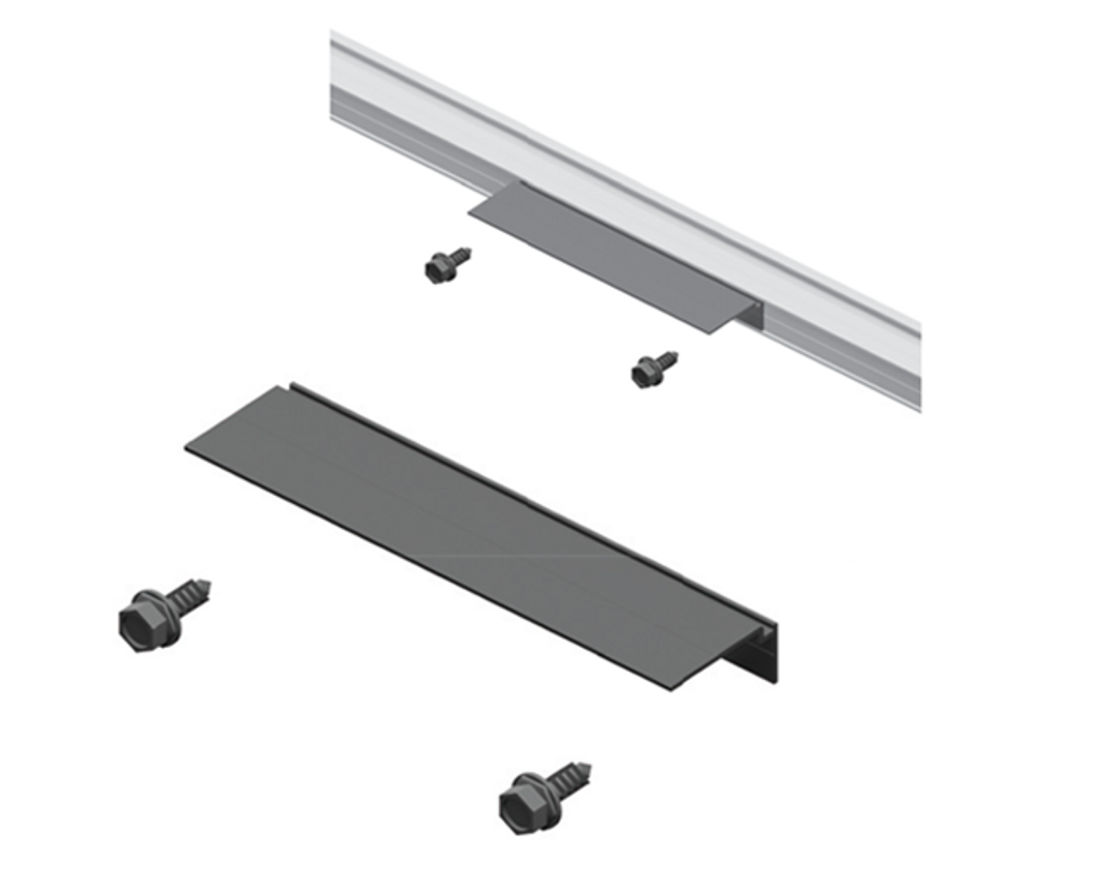

A307
QWICKBUILD DOUBLE JOIST BRACKET FLAT FOR A110
A bracket that creates a double joist to support board-ends &/or for fixing trim under a rim joist
Included: A401-50X Screws
item# A307-20X
A401
Self-drilling screw 5/8", 16mm
Included with most components
Length: 5/8", Head: Hex, Driver: 3/8”
item# A401-50X

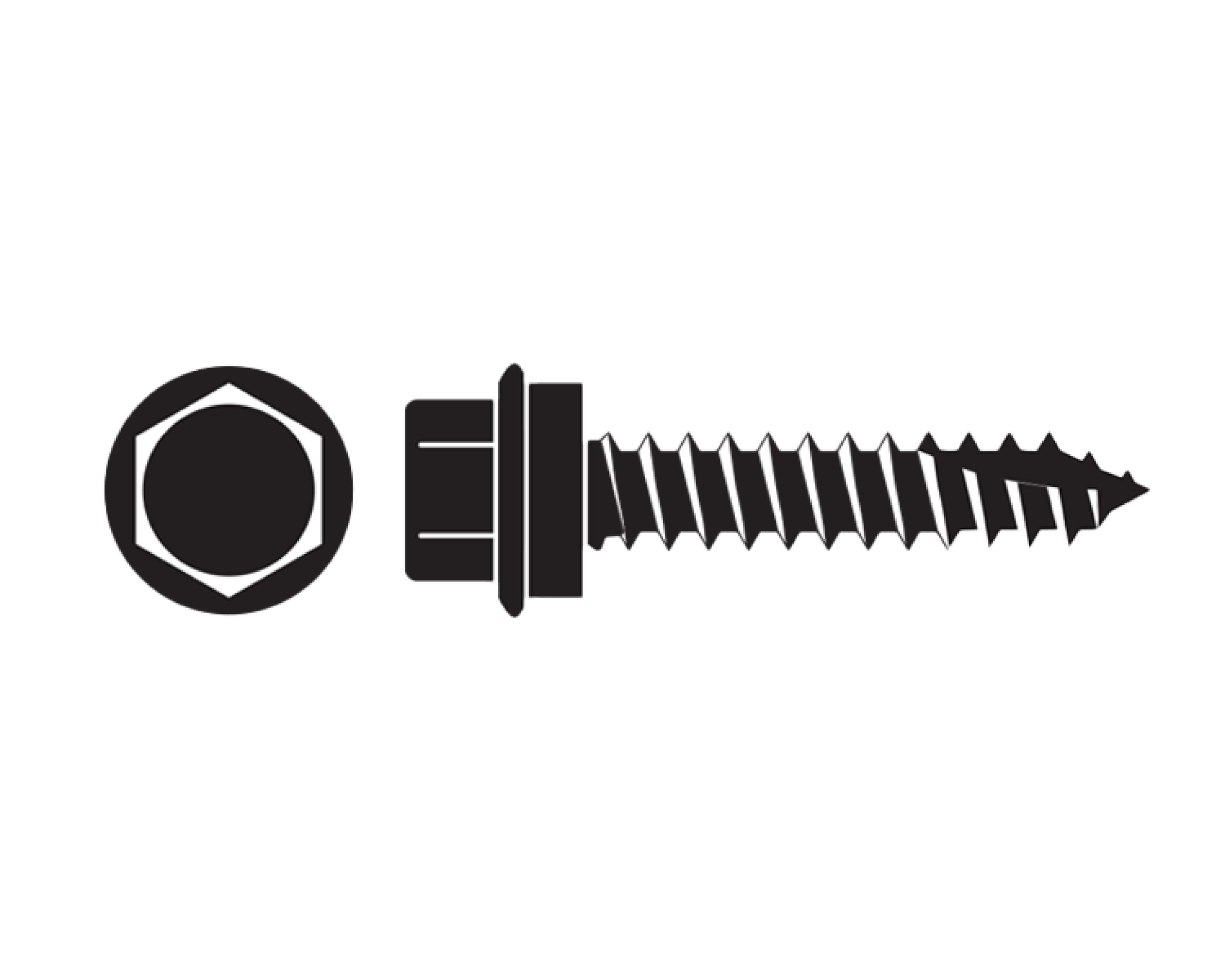

A402
Self-drilling screw 1 1/4"
With a coarse thread for wood
Length: 1 1/4", Head: Hex, Driver: 3/8”
item# A402-50X

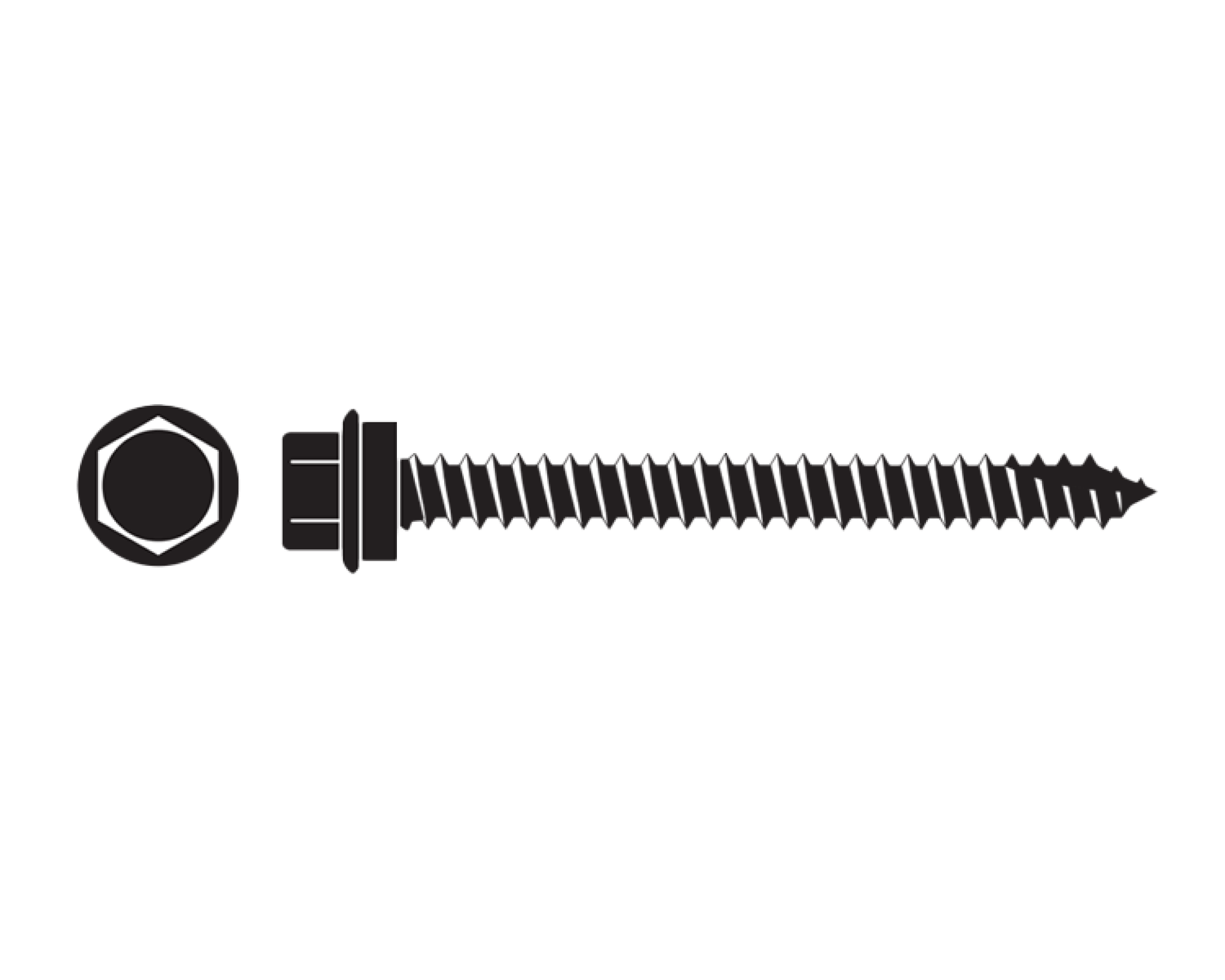

A403
Type 17 screw 2 1/2", 65mm
With a coarse thread for wood
Length: 2 1/2", Head: Hex, Driver: 3/8”
item# A403-50X

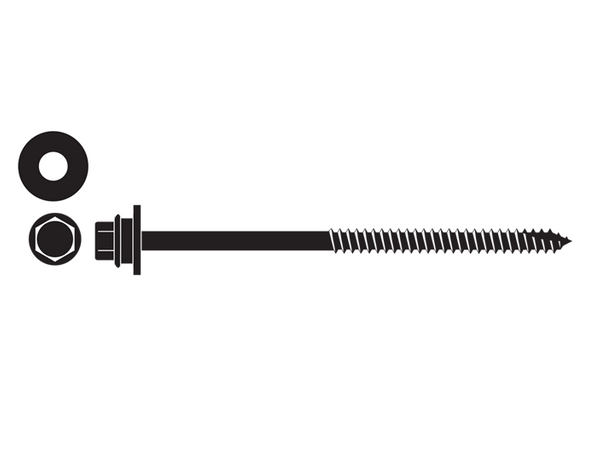

A404
Type 17 screw 5"
With a coarse thread primarily for solid blocking (railing)
Length: 5", Head: Hex, Driver: 3/8”
Included: Washer. Material: SS304 Electrophoresis - Black
item# A404-50X

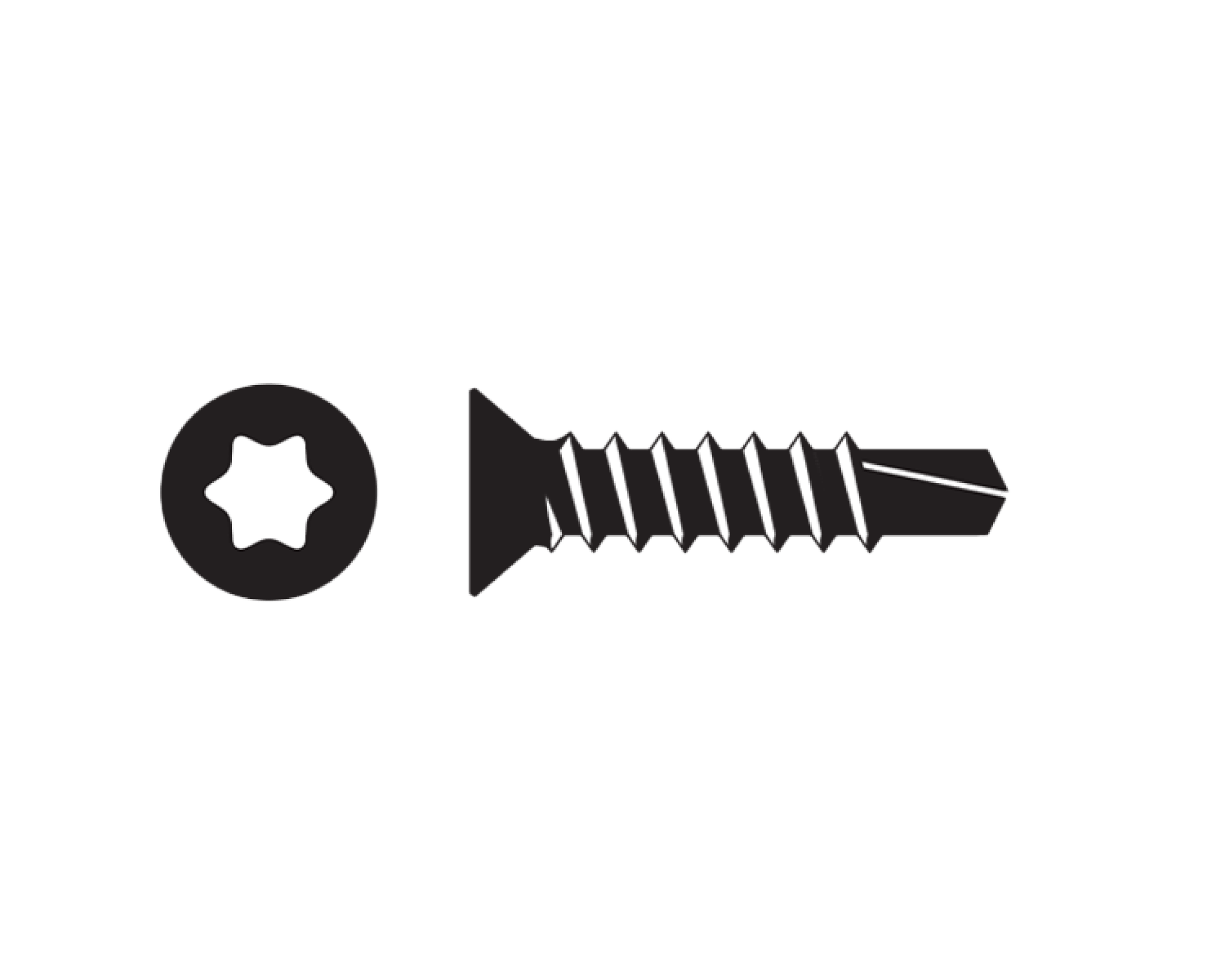

A409
Self-drilling screw 3/4"
For securing A510-A580 TwistClips in channel &/or in to control board expansion/contraction
Length: 3/4", Head: CSK, Driver: Torx 15
item# A409-50X

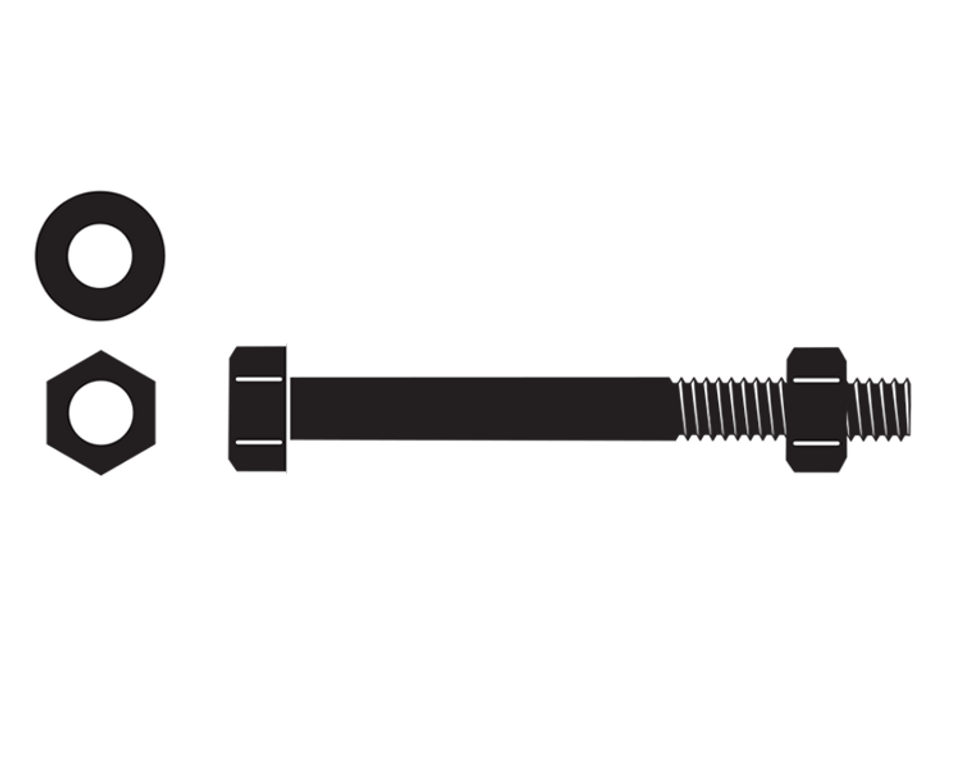

A410
M12 Bolt 1/2 X 4"
For QwickBuild connections, typically bearer to post
Length: 4", Thread Diameter: 1/2", Head: Hex
Included: 1X Locking Nut, 2X Washers
item# A410-10X

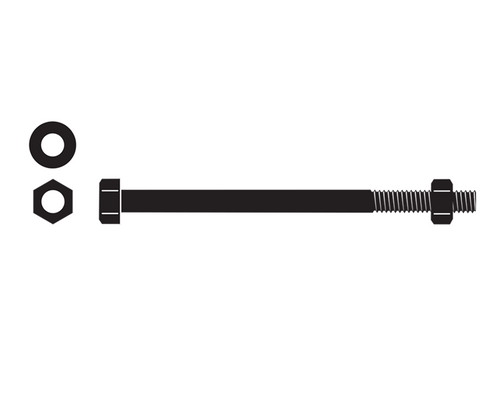

A411
M12 Bolt 1/2 X 6"
For QwickBuild connections, typically bearer to post
Length: 6", Thread Diameter: 1/2", Head: Hex
Included: 1X Locking Nut, 2X Washers
item# A411-10X

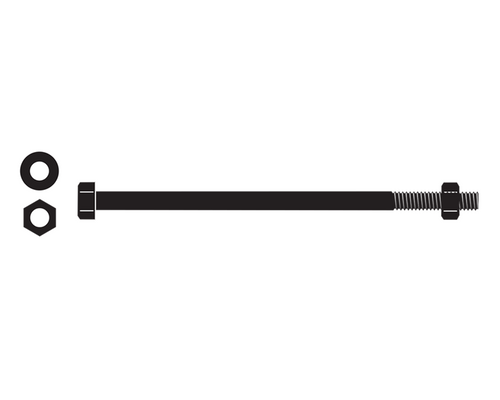

A412
M12 Bolt 1/2 X 8"
For QwickBuild connections, typically bearer to post
Length: 8", Thread Diameter: 1/2", Head: Hex
Included: 1X Locking Nut, 2X Washers
item# A412-10X
A413
M12 Bolt 1/2 X 10"
For QwickBuild connections, typically bearer to post
Length: 10", Thread Diameter: 1/2", Head: Hex
Included: 1X Locking Nut, 2X Washers
item# A413-10X
A420
Driver Pack
Hex 3/8" Length: 3"
Hex 3/8" Length: 2"
Torx 20 - 2x
Torx 15 - 2x
item# A420

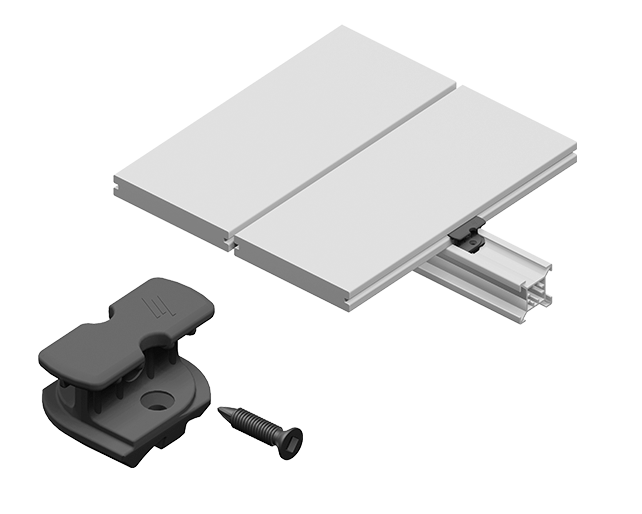

A510
TwistClip"
Hidden fasteners to interlock QwickBuild joist with: NewTechWood Magellan, NewTechWood Voyager, ResortDeck, CasaDeck, A801, A840
Gap: 1/4"
Included: A409-50X Screws
item# A510-50X

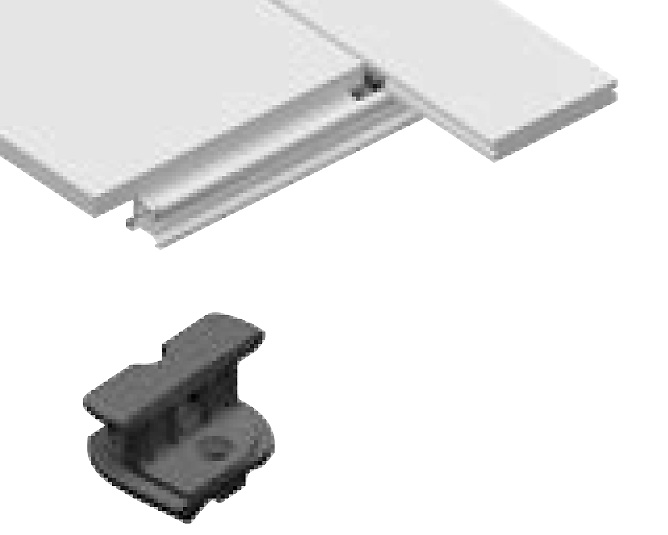

A511
TwistClip HALF"
Hidden fastener for the transition between tiles and decking boards
Gap: 1/4"
item# A511-50X

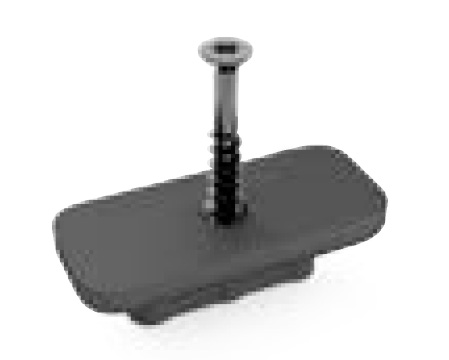

A512
T-Clip
Hidden fastener for composite decking between tiles and decking boards
Gap: 1/4"
item# A512-50X

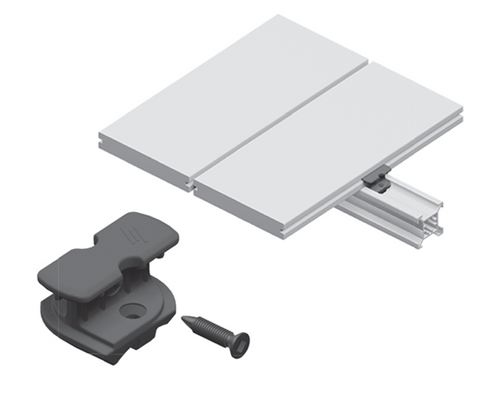

A520
Twist Clip
Hidden fixings to interlock QwickBuild joist with: Trex Transcend, TimberTech Azek Reserve, TimberTech Terrain, TimberTech Vintage
Gap: 1/4"
Included: A409-50X Screws
item# A520-50X
A550
Twist Clip
Hidden fixings to interlock QwickBuild joist with: Fiberon Paramount, Fiberon Sanctuary, Fiberon Promenade
Gap: 1/4"
Included: A409-50X Screws
item# A550-50X

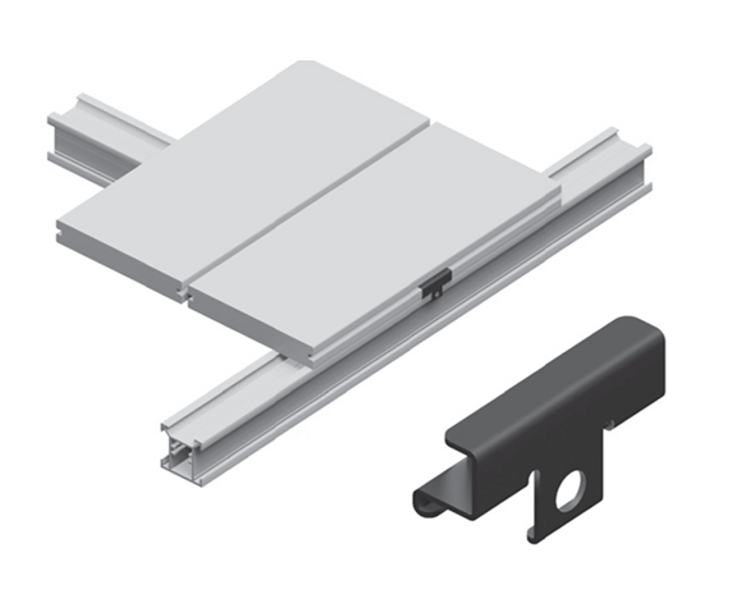

A590
Starter Clip
Hidden fastener for the starting composite decking board, A801, A840 to the rim joist
item# A590-25X

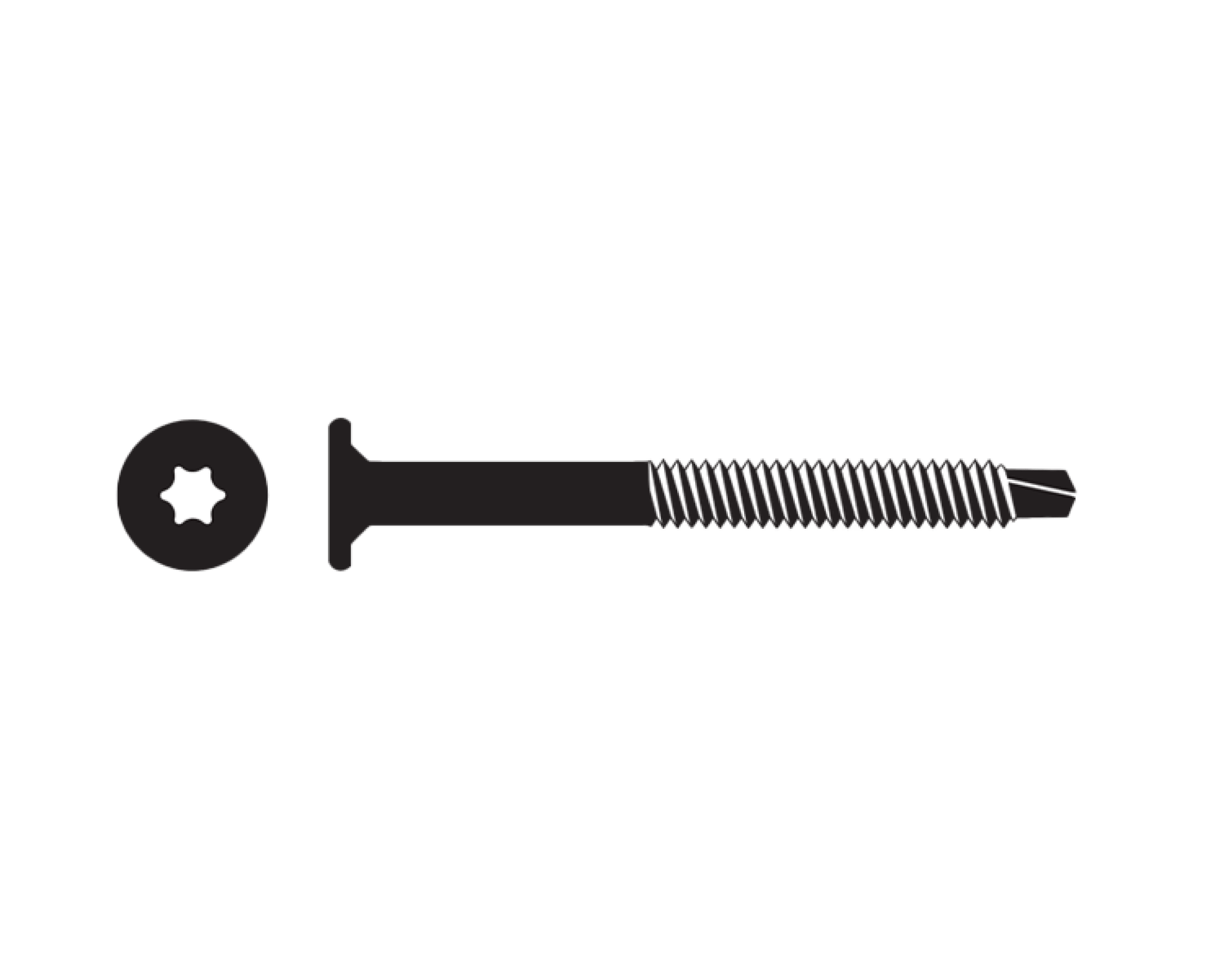

A595
QWICKBUILD SCREW FOR COMPOSITE DECKING (2") 45mm - GREY
Self-drilling screw to fix composite decking boards to QwickBuild joists
Length: 2", Head: Flat, Driver: Torx 20
item# A595-50X
A596
QWICKBUILD SCREW FOR COMPOSITE DECKING (2") 45mm - BROWN
Self-drilling screw to fix composite decking boards to QwickBuild joists
Length: 2", Head: Flat, Driver: Torx 20
item# A596-50X
A610
QWICKBUILD SCREW FOR HARDWOOD (1 1/2") 36mm - T20
Self-drilling screw for fixing hardwood timber boards, of thickness: less than 1" to QwickBuild joists
Length: 1 1/2", Head: CSK, Head Diameter: 3/8", Driver: Torx 20.
item# A610-50X

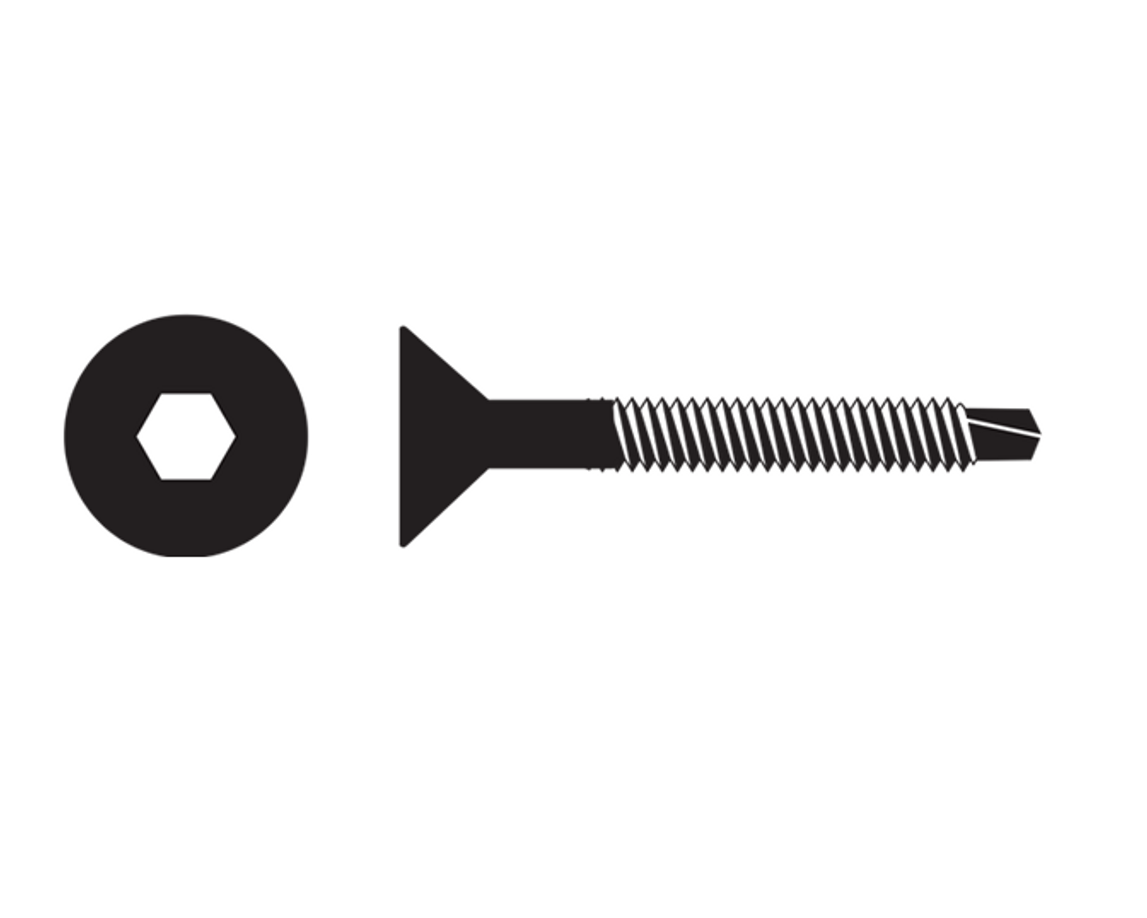

A611
QWICKBUILD SCREW FOR HARDWOOD (1 1/2") 36mm - H4
Self-drilling screw for fixing hardwood timber boards, of thickness: less than 1" to QwickBuild joists
Length: 1 1/2", Head: CSK, Head Diameter: 1/2", Driver: H4.
item# A611-50X

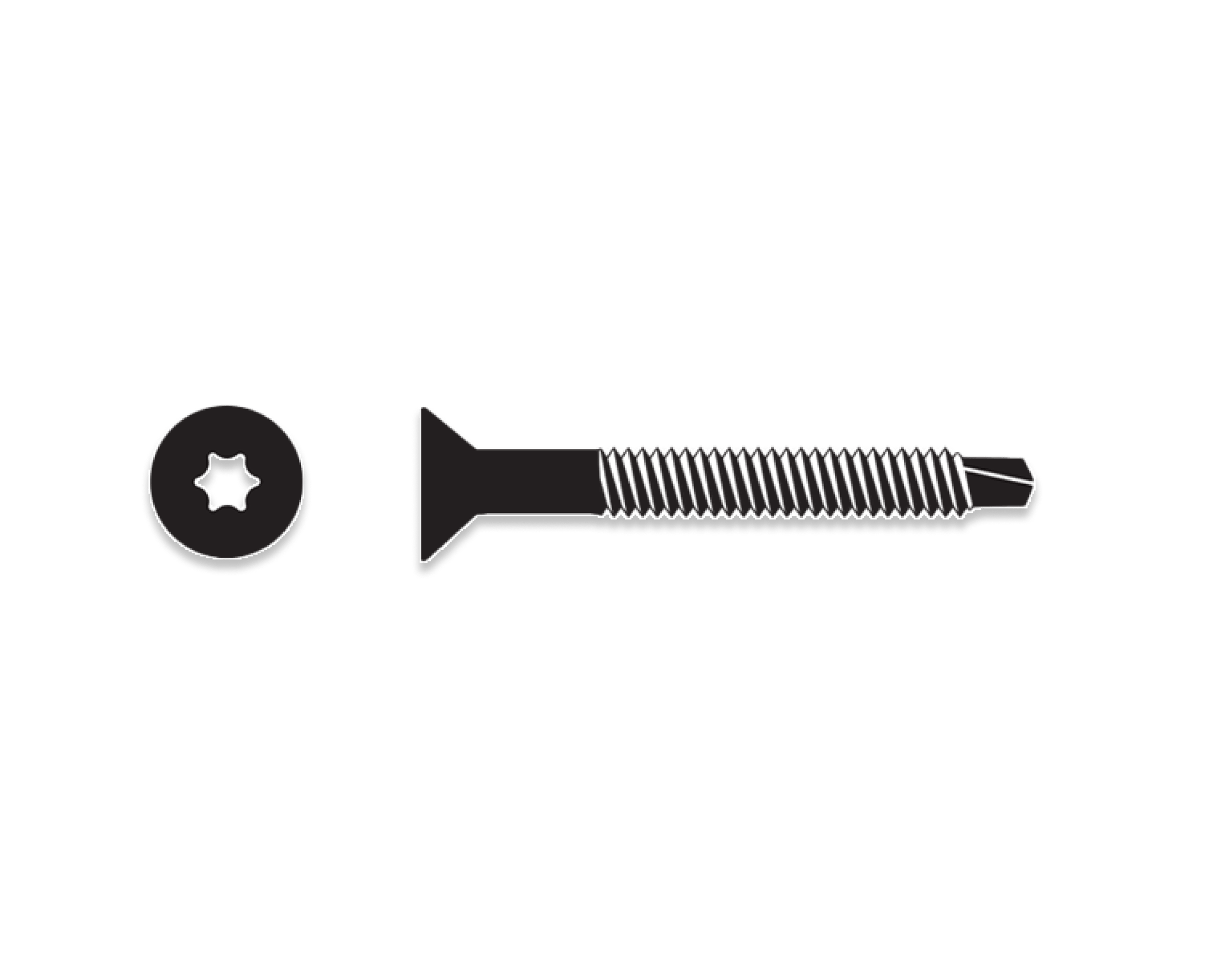

A620
QWICKBUILD SCREW FOR HARDWOOD (1 3/4") 45mm - T20
Self-drilling screw for fixing hardwood timber boards, of thickness: 1 - 1 1/2" to QwickBuild joists
Length: 1 3/4", Head: CSK, Head Diameter: 3/8", Driver: Torx 20.
item# A620-50X

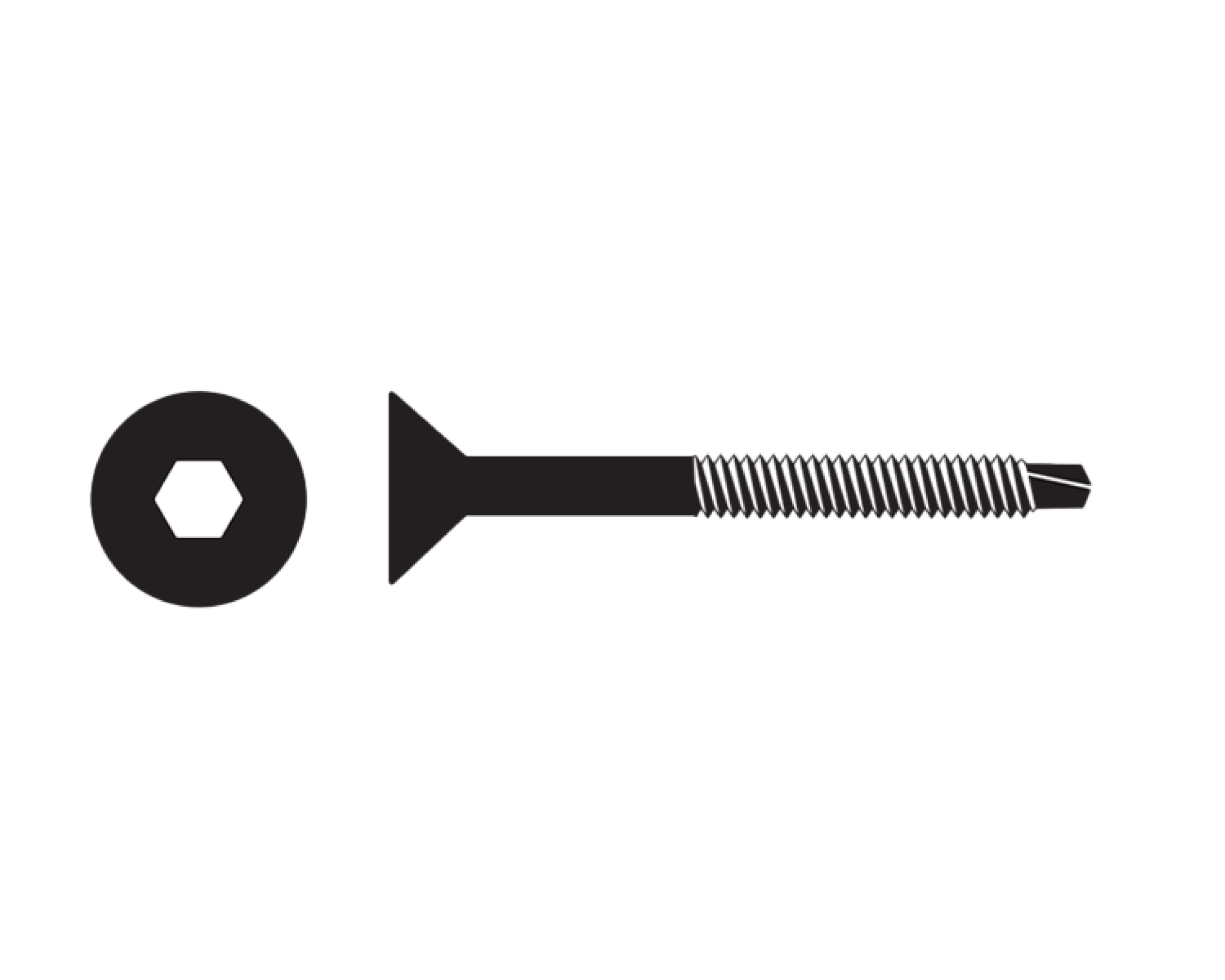

A621
QWICKBUILD SCREW FOR HARDWOOD (1 3/4") 45mm - H4
Self-drilling screw for fixing hardwood timber boards, of thickness: 1 - 1 1/2" to QwickBuild joists
Length: 1 3/4", Head: CSK, Head Diameter: 1/2", Driver: H4.
item# A621-50X

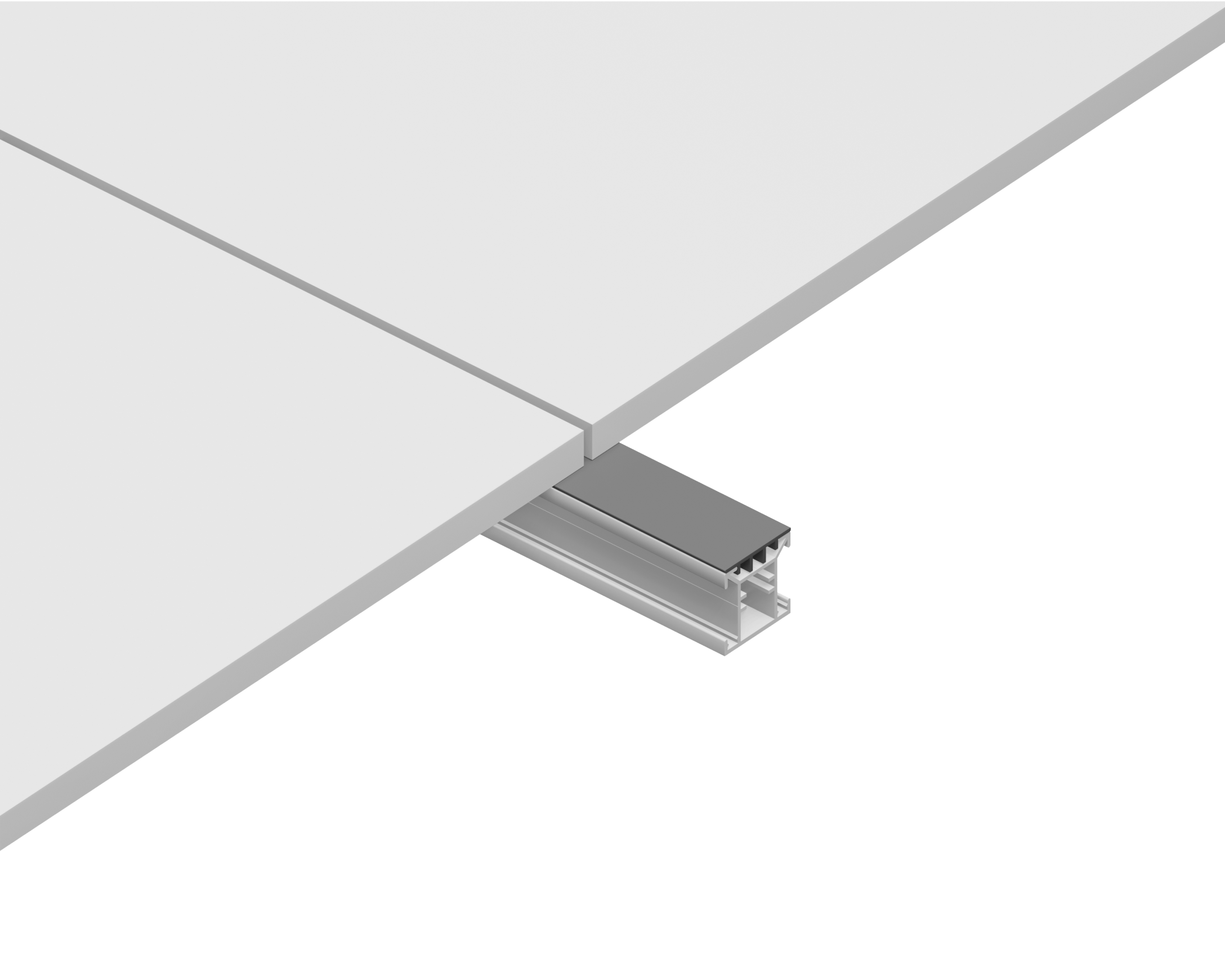

A701
QWICKBUILD TILE RUBBER BEAD (40") 1LM
Seats into top of QwickBuild joist to isolate noise & friction
item# A701

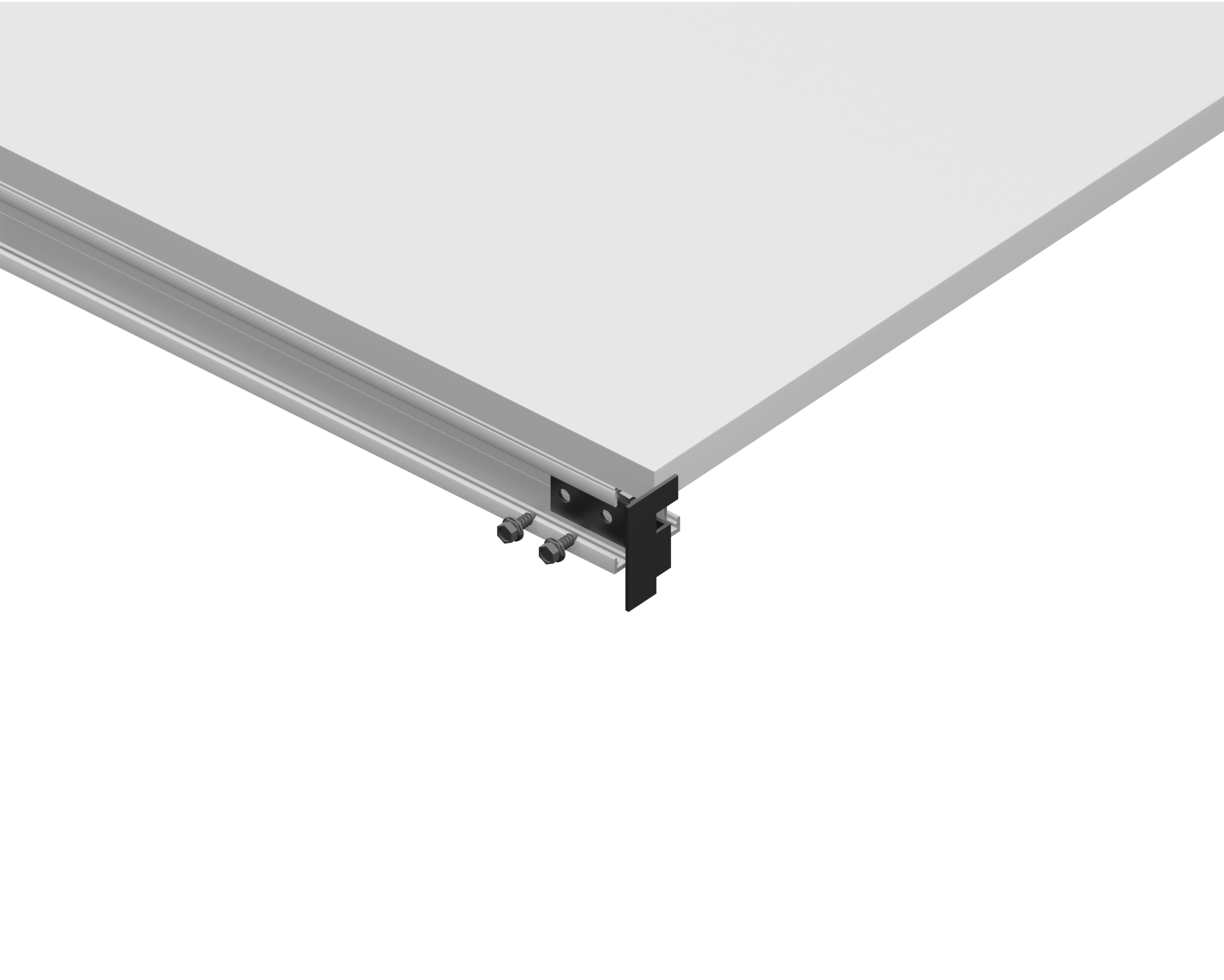

A702
QWICKBUILD TILE RETAINER BRACKET
Retains perimeter tiles. Install retainer brackets at ends of joists that are perpendicular to edge of deck
Included: A401-50X Screws
item# A702-25X

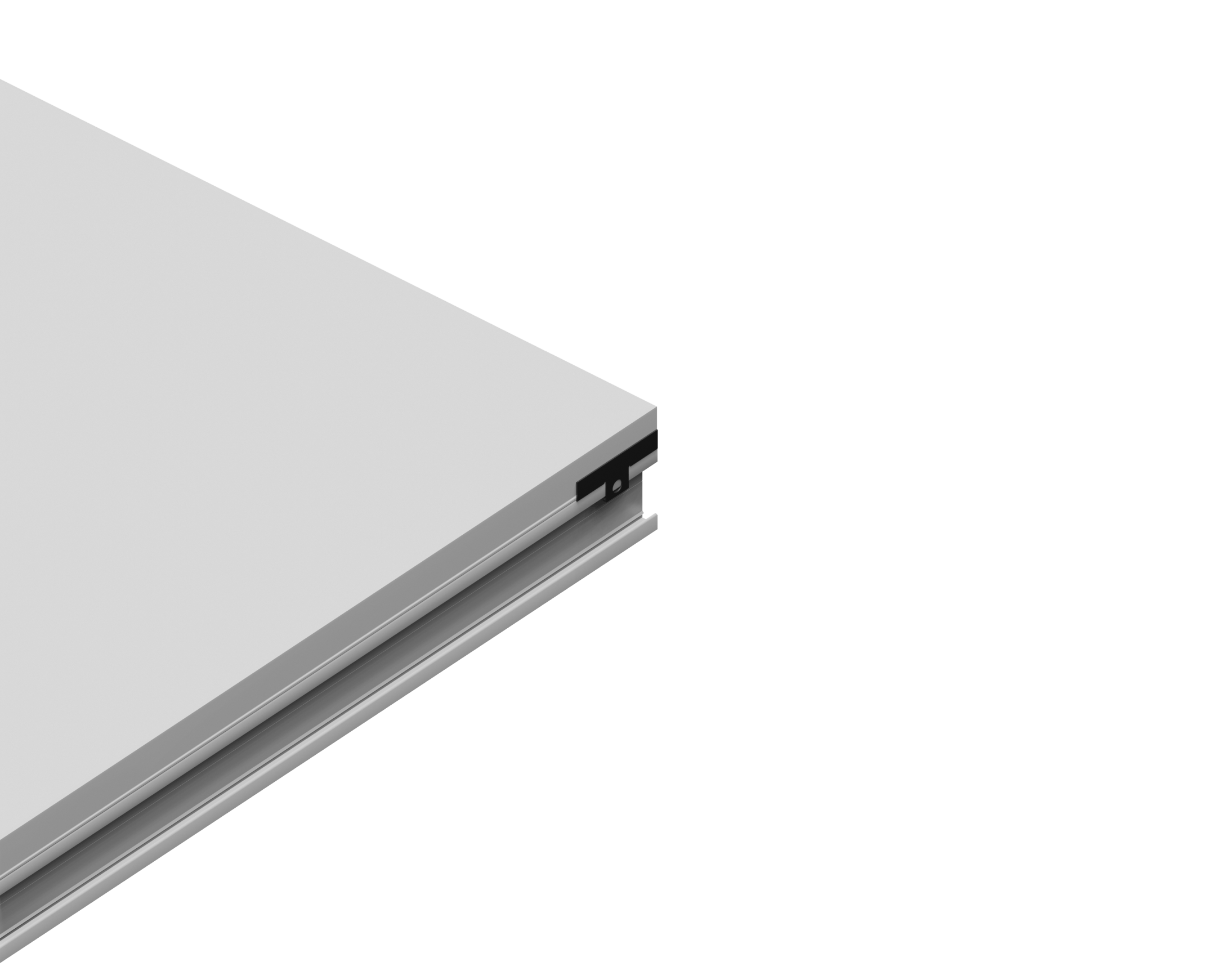

A703
QWICKBUILD TILE RETAINER SNAP CLIP
Retains perimeter tiles. Install snap clips along the edge of perimeter joists
item# A703-25X

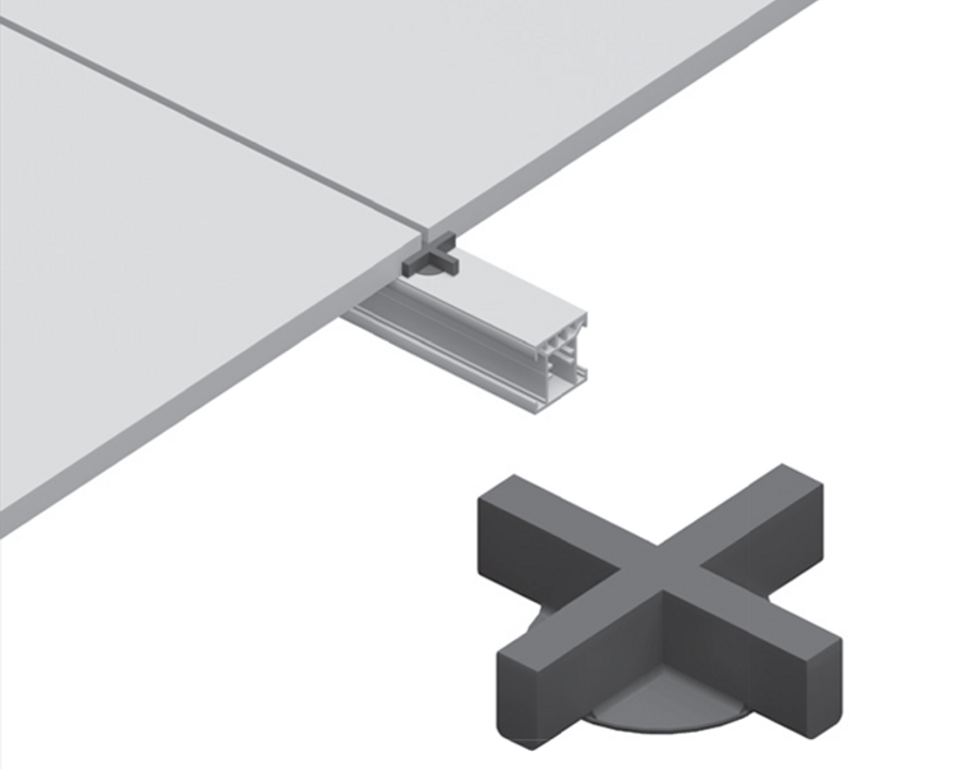

A710
QWICKBUILD TILE SPACER CROSS
To evenly space tiles installed on QwickBuild deck framing system
Gap: 1/4"
item# A710-25X

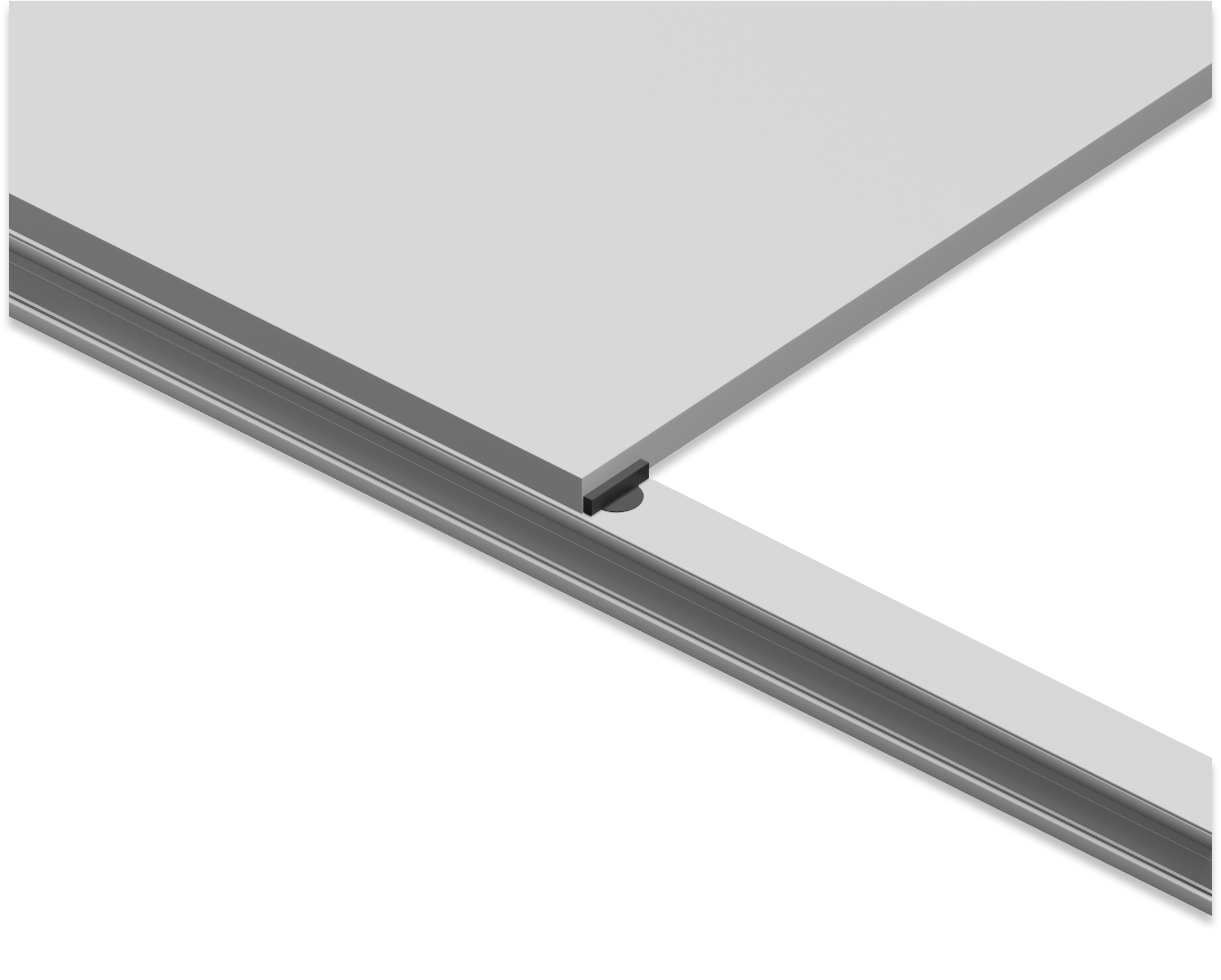

A711
QWICKBUILD TILE SPACER STRAIGHT
For straight spaces between tiles installed on QwickBuild deck framing system
Gap: 1/4"
item# A711-25X

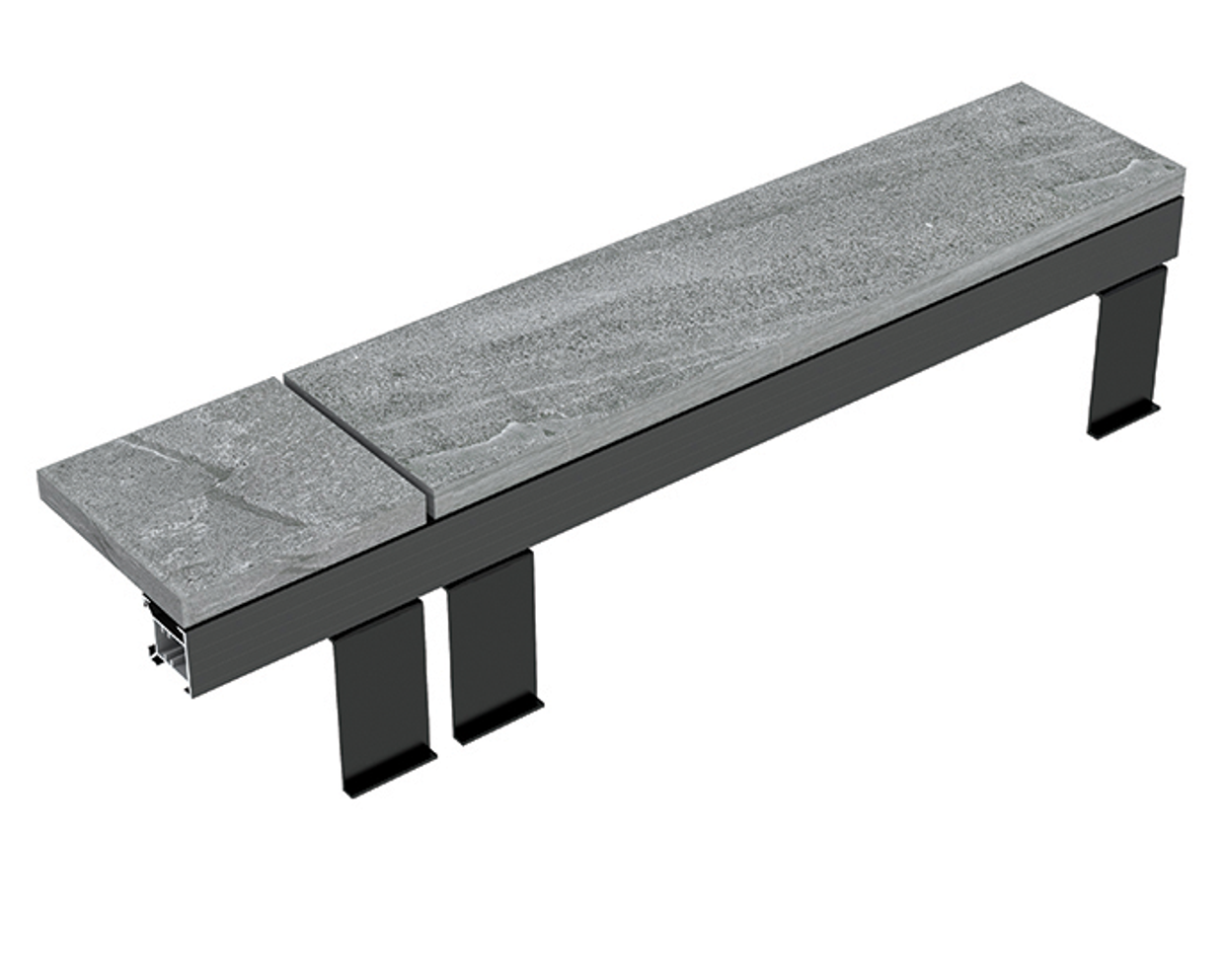

A712
QWICKBUILD TRIM BRACKET
A bracket that supports a tile as trim
item# A712-10X

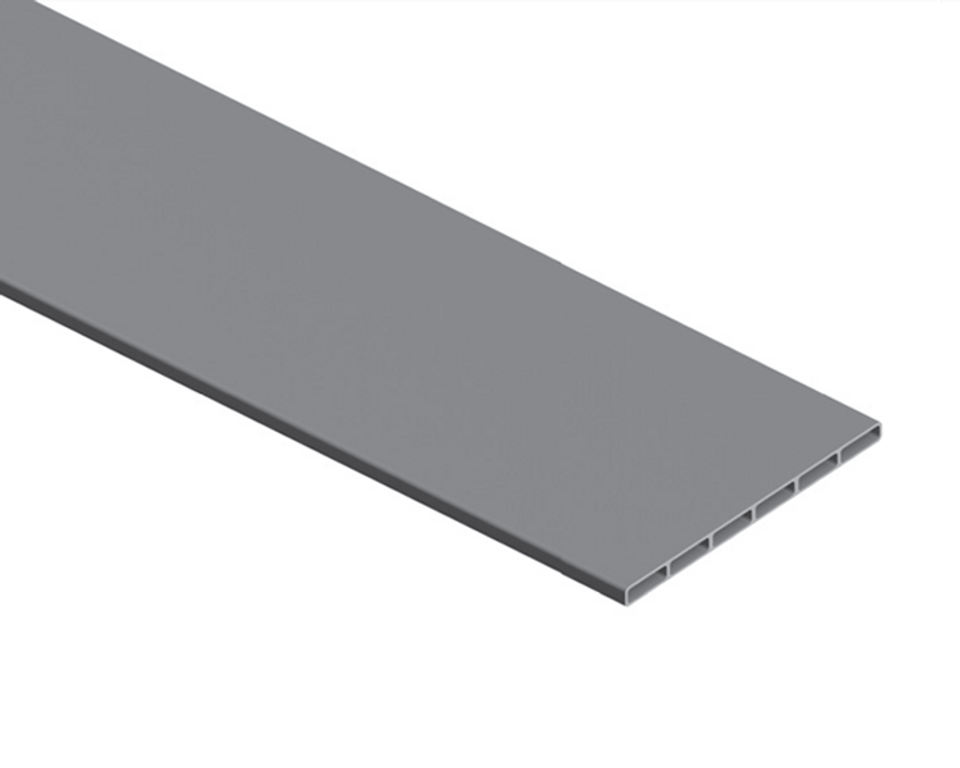

A801
5 1/2 X 1/4 X 10'
Turf Baseboard
To support turf on to QwickBuild joists
item# A801

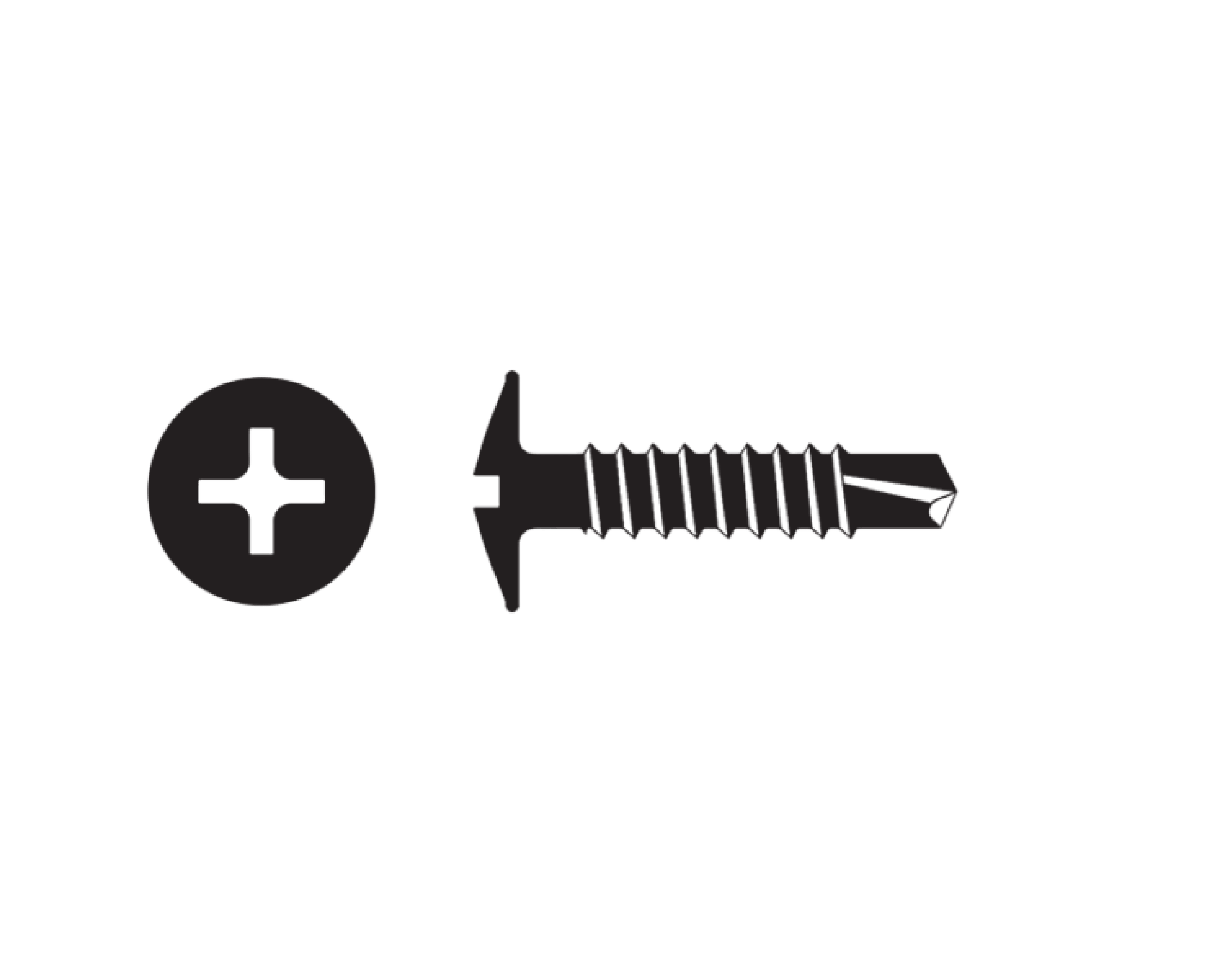

A810
QWICKBUILD SCREW FOR TURF (3/4") 20mm
Self-drilling screw for fixing turf to A801 baseboards
Length: 3/4", Head: Flat, Driver: Philips
item# 810-50X

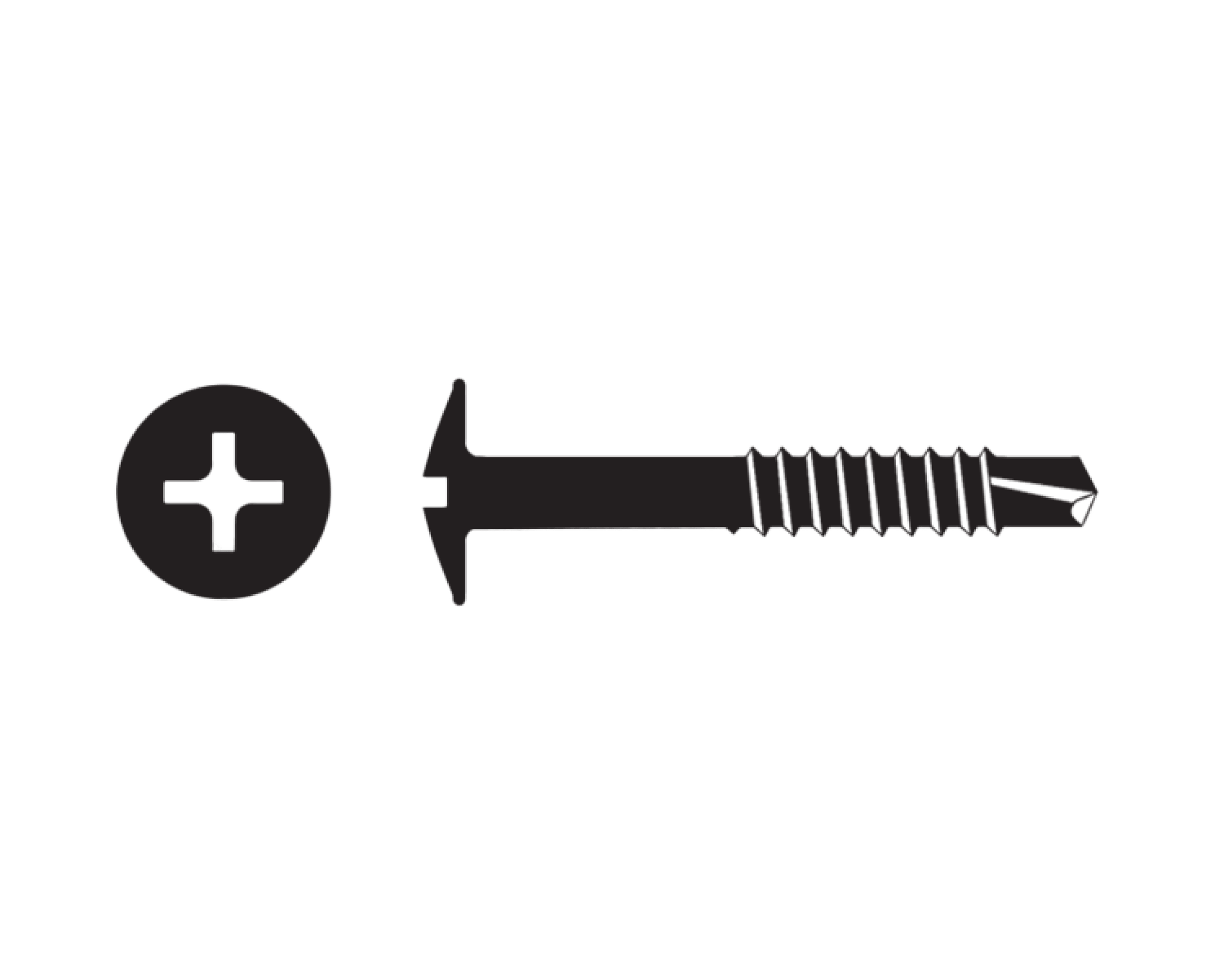

A811
QWICKBUILD SCREW FOR TURF BASEBOARDS 1 1/4"
Self-drilling screw for fixing A801 baseboards to QwickBuild joists
Length: 1 1/4", Head: Flat, Driver: Philips
item# 811-50X

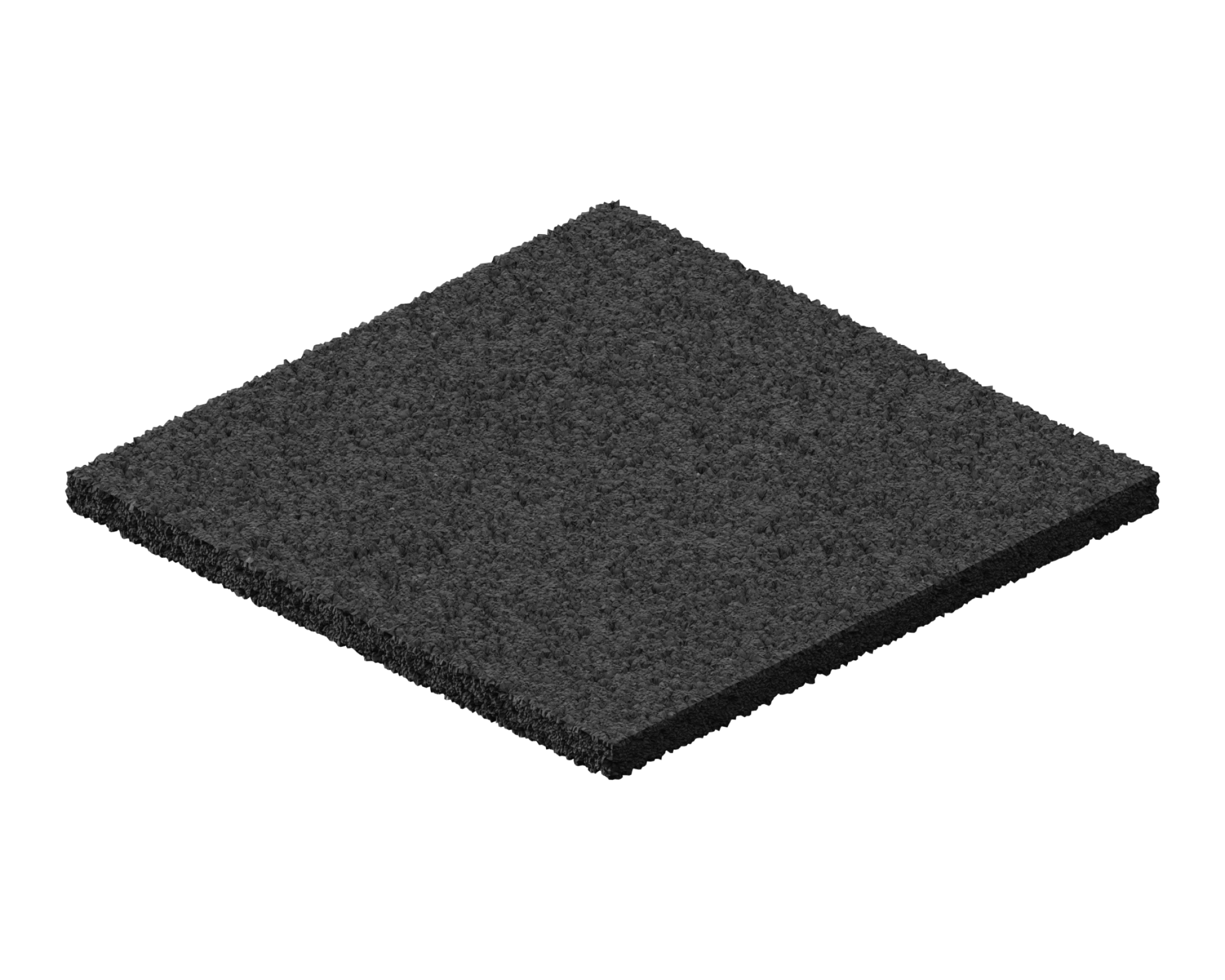

A901
DECK SUPPORT PACKER
height: 1/8" 3mm
Stackable: 5X maximum
item# 901-20X

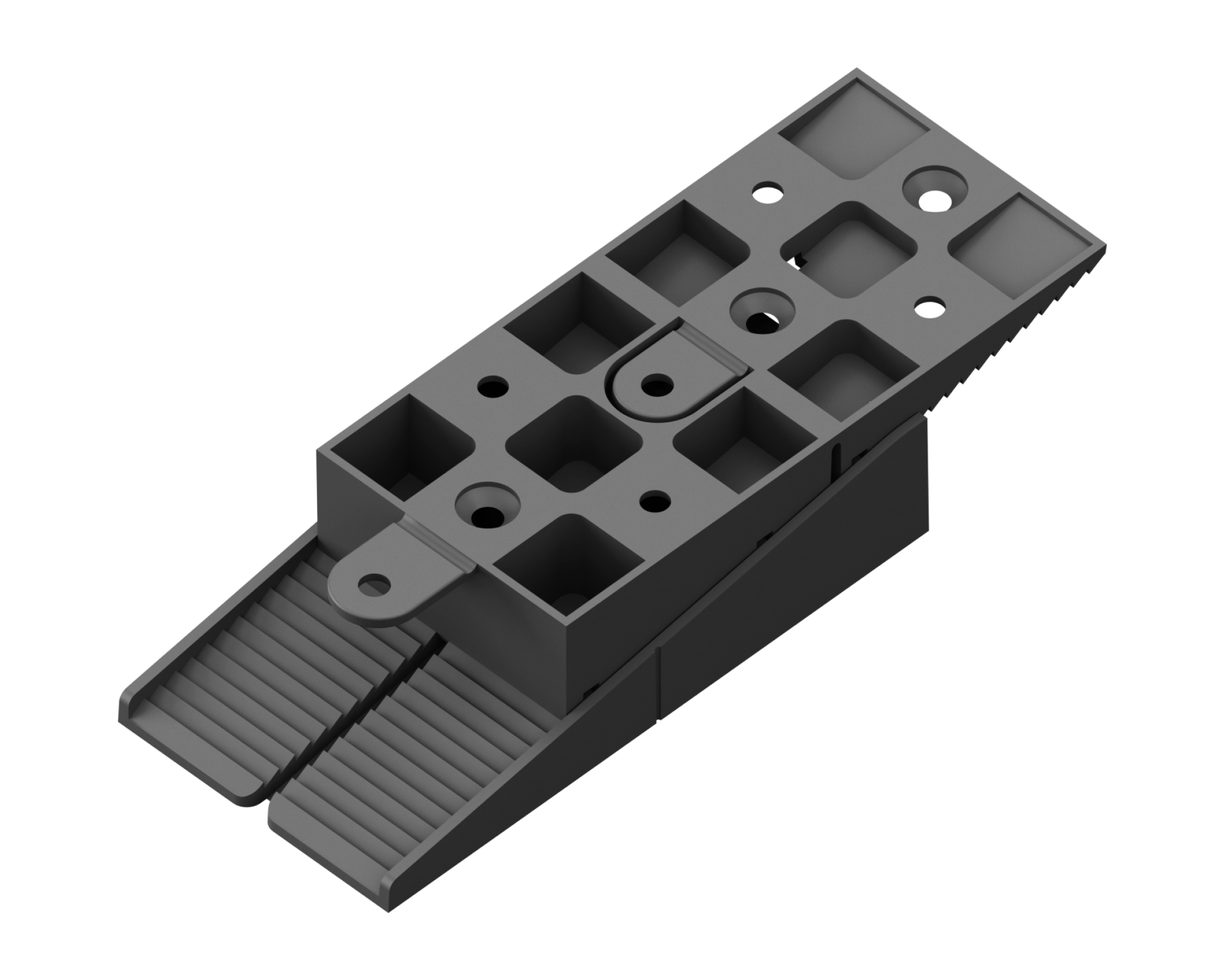

A905
ADJUSTABLE DECK SUPPORT
Height-adjustable range: 5/8 - 1 3/8" 15 - 35mm
Included: Protection Pad
item# 905-10X

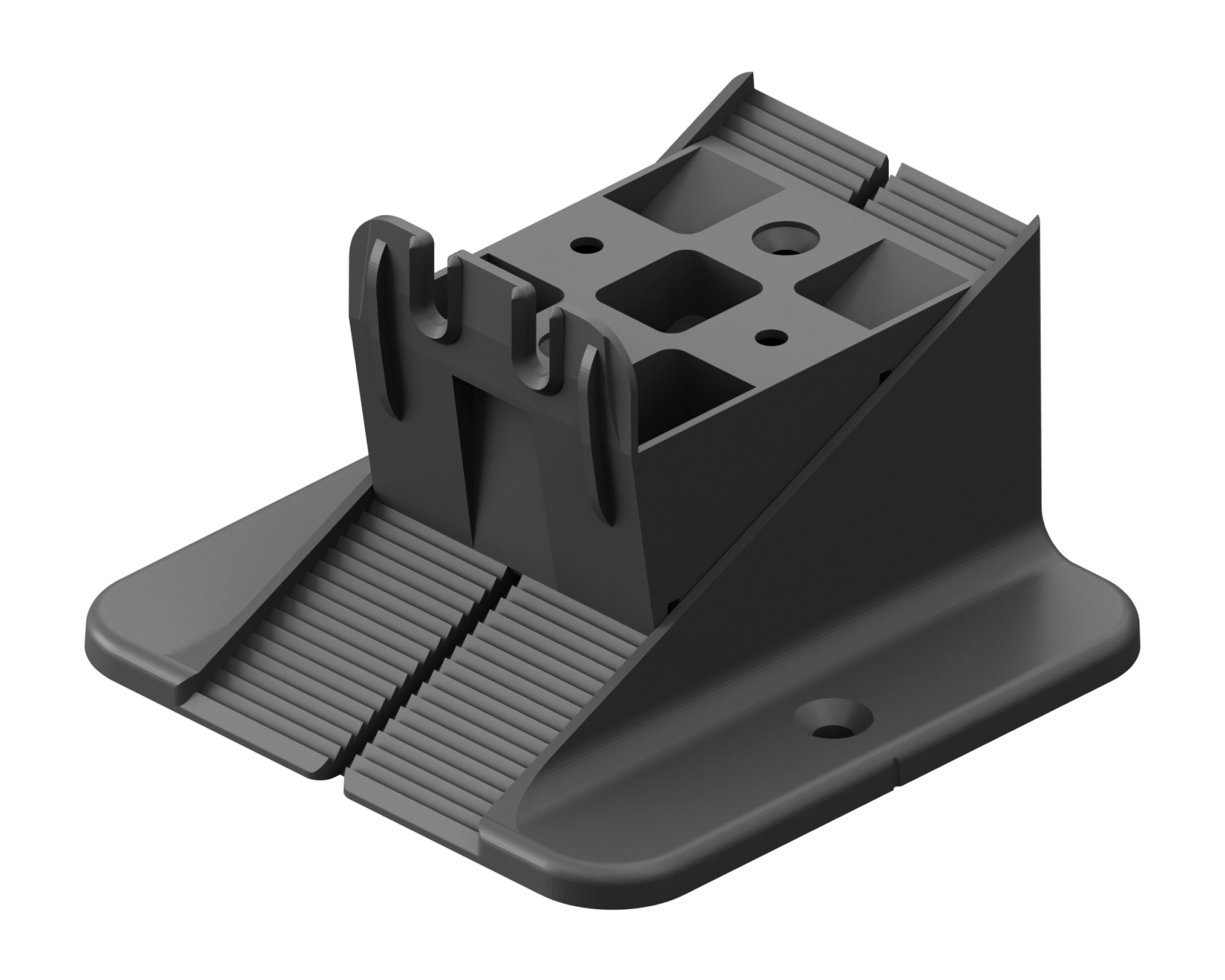

A910
ADJUSTABLE DECK SUPPORT
Height-adjustable range: 1 3/8 - 2 1/2" 35 - 65mm
Stack A915 under A910: 8X maximum
item# 910-10X

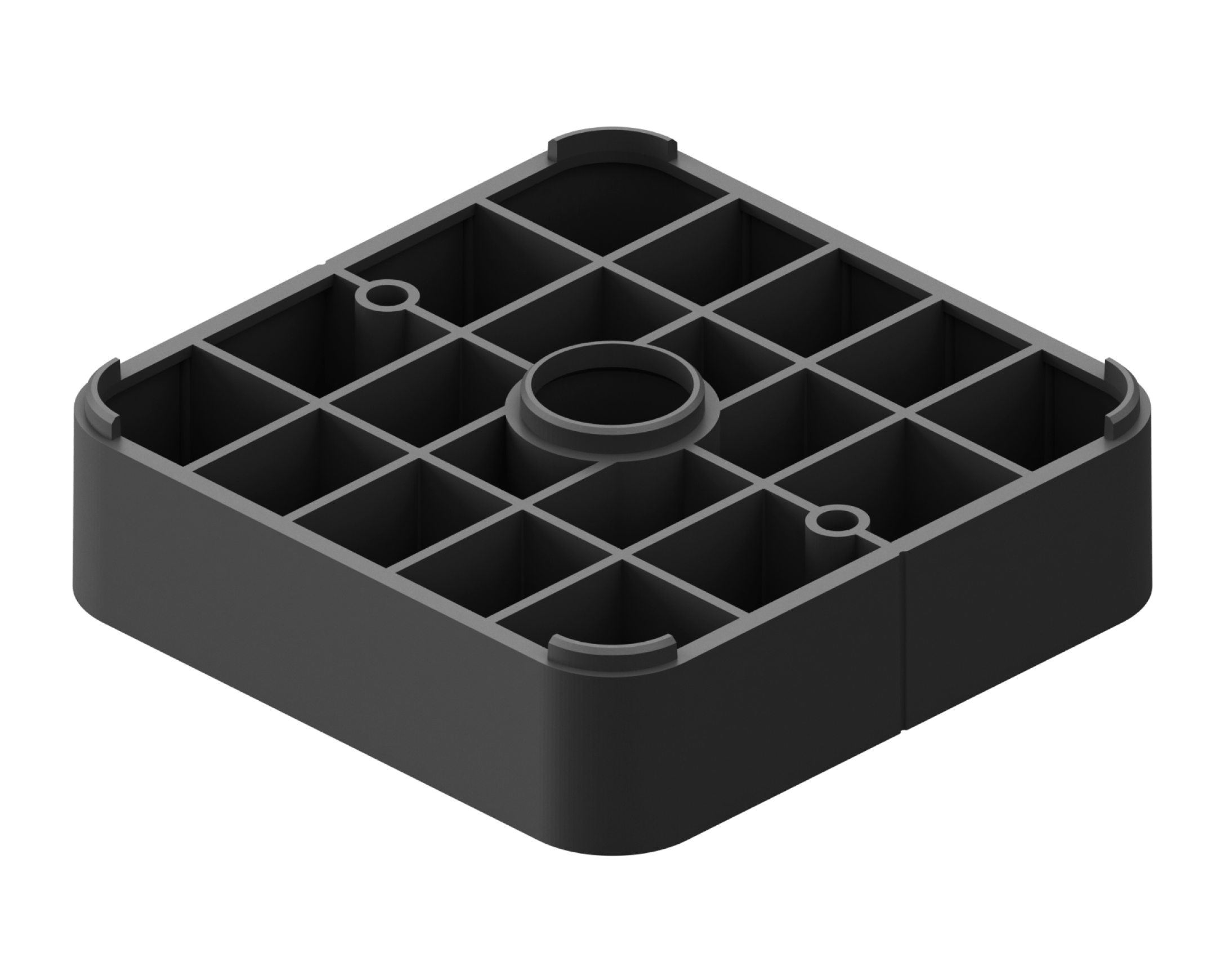

A915
DECK SUPPORT EXTENDER
Height: 1 3/16" 30mm
Stack A915 under A910: 8X maximum
item# 915-10X

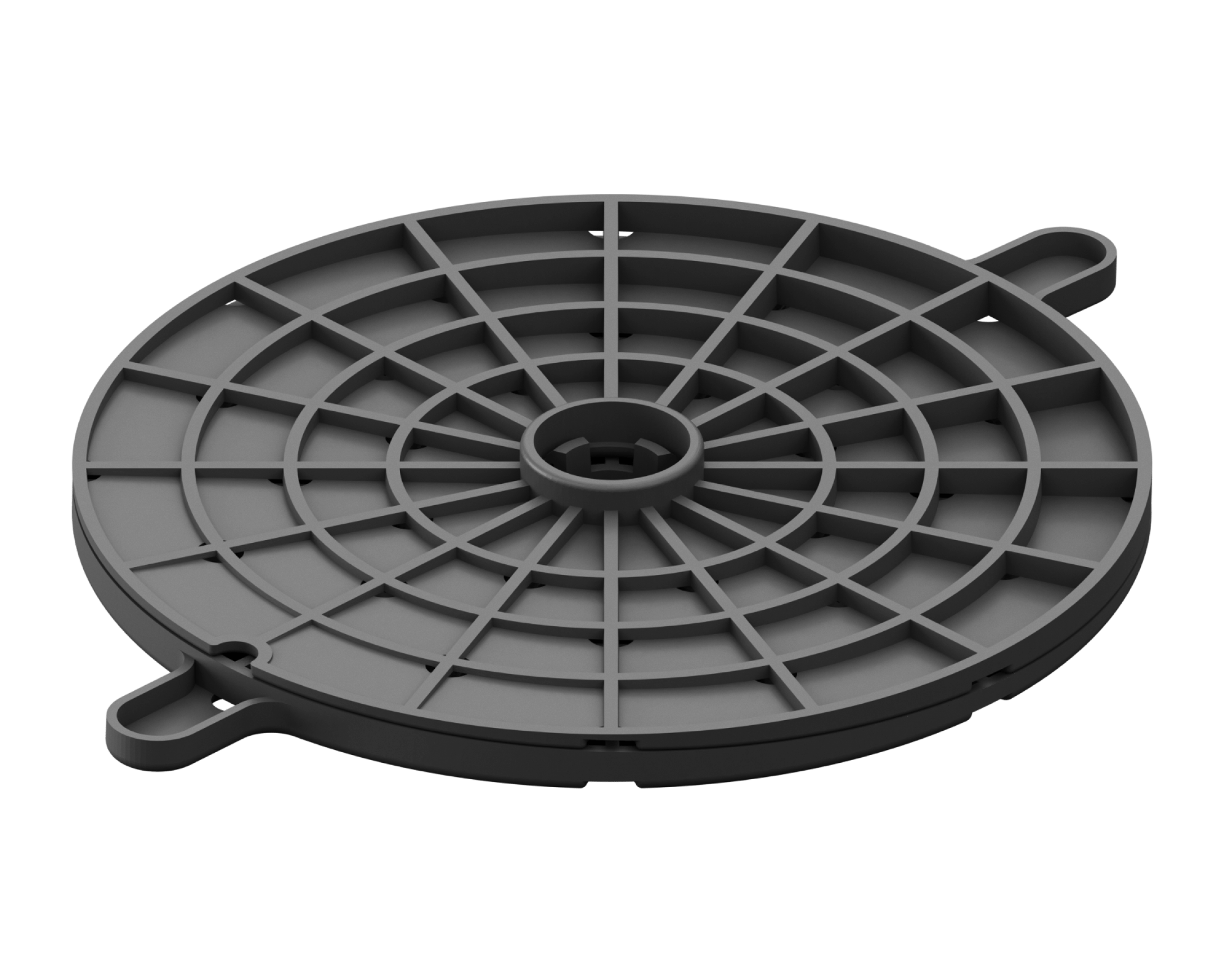

A920
DECK SUPPORT SLOPE CORRECTOR (UP TO 7%)
Height: 3/8" 35mm
Optional item: Stacks under A910
item# 920-10X

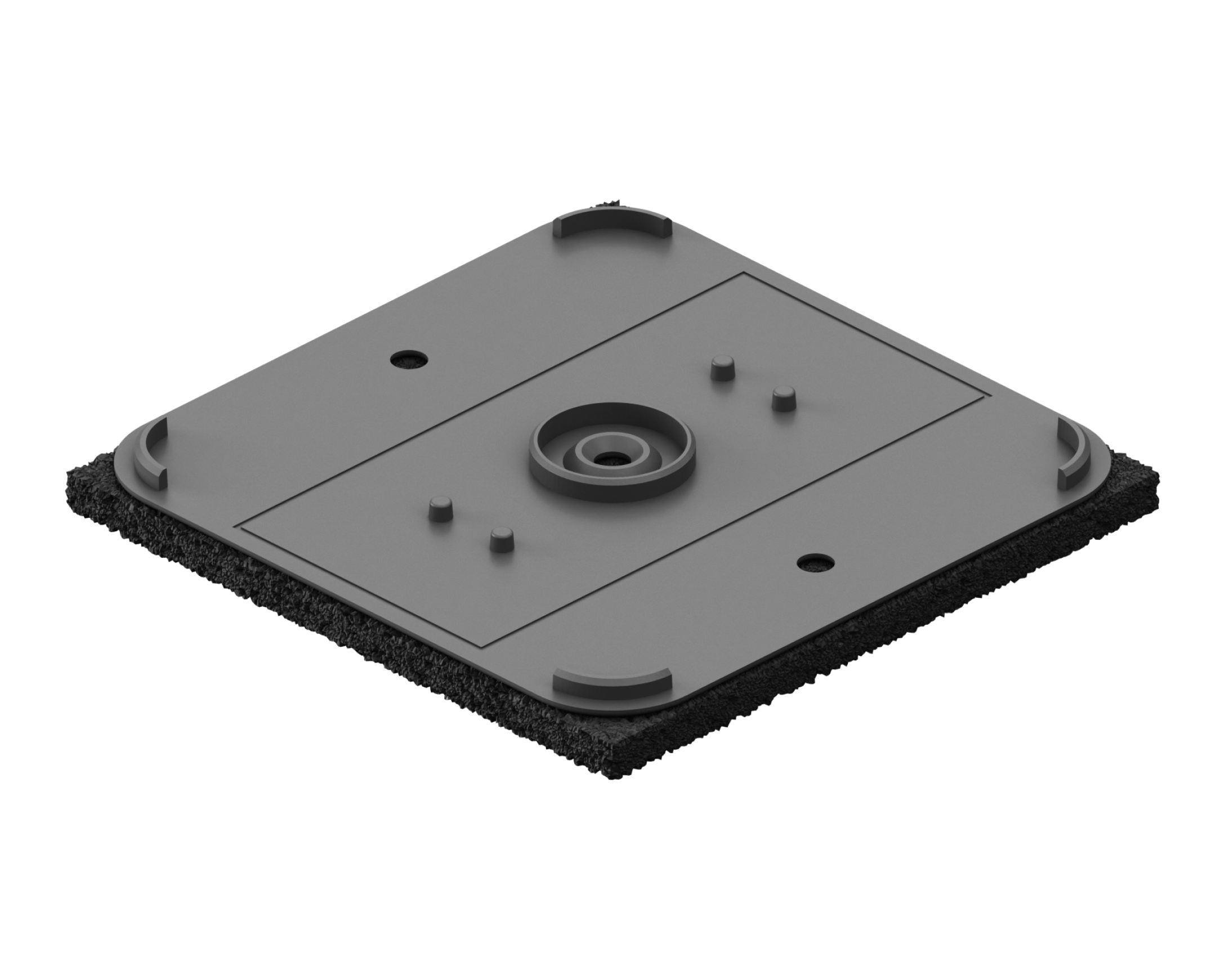

A925
DECK SUPPORT PROTECTION PAD - ACOUSTIC
Height: 3/8" 35mm
Optional item: Stacks under A910
item# 925-10X
A831
QWICKBUILD QWICKGRATE KIT (1X6X110") 138X23X2800mm - BLACK
6 X 1" X 10'
Removeable grates to access services under the deck structure & to promote airflow & ventilation
Included: Snap Mounts
item# 831
A832
QWICKBUILD QWICKGRATE KIT 1X6X110" 138X23X2800mm - SILVER
6 X 1" X 10'
Removeable grates to access services under the deck structure & to promote airflow & ventilation
Included: Snap Mounts
item# 832

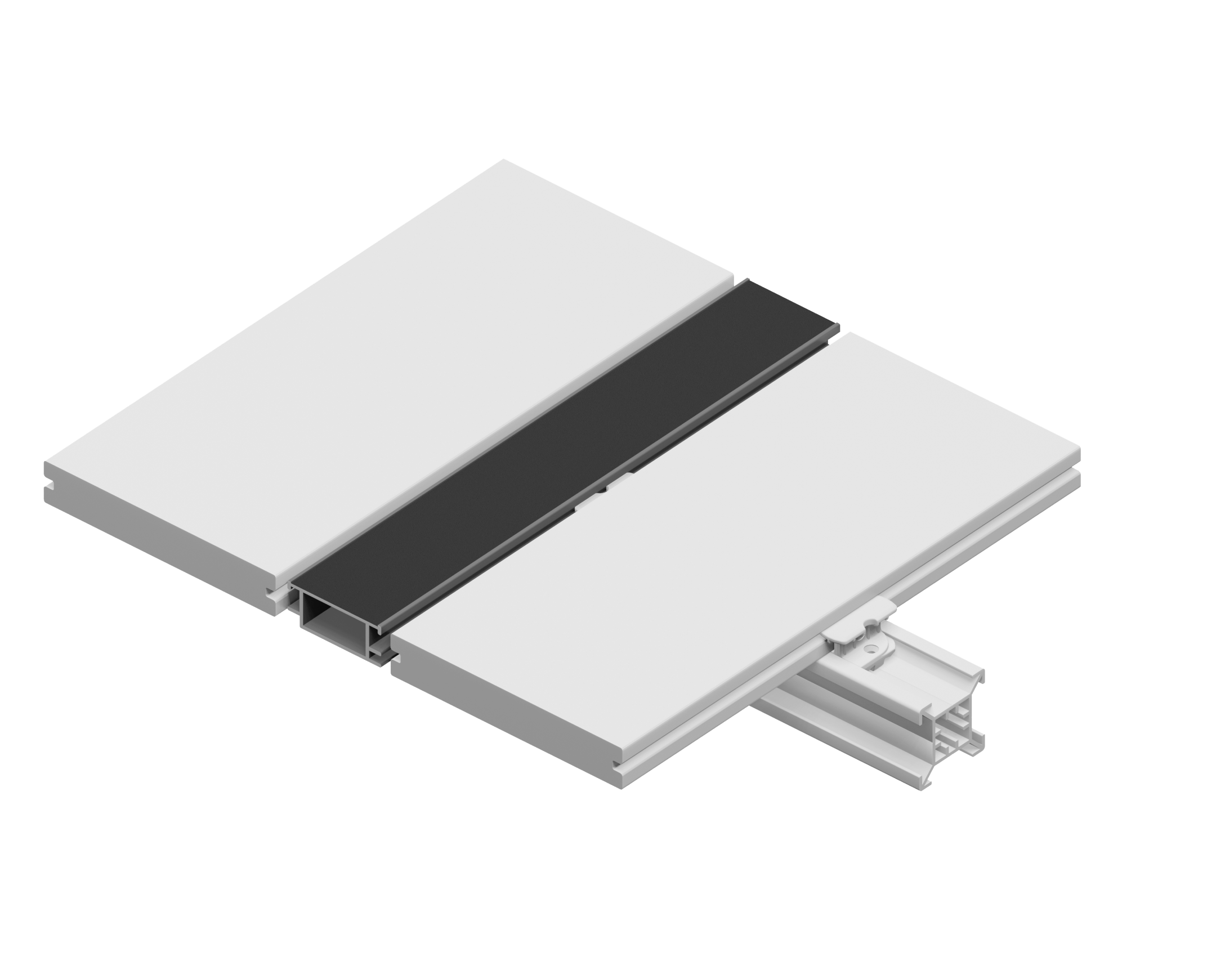

A840
QWICKBUILD ANTI-SLIP STRIP WITH 3M SAFETY WALK 1X2X110" 54X23X2800mm
2 X 1" X 10'
Anti-slip for stairs & access ways. Fix to QwickBuild with TwistClip A510
item# 840
A851
QWICKBUILD SOLID BLOCKING 6x6"x4' 135X135X1200MM
6x6"x4'
Solid framing blocking for railing and posts
item# A851-4-12

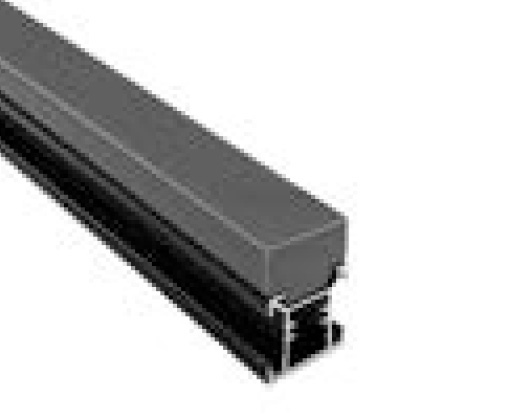

A855
QWICKBUILD BATTEN
2 X 2" X 10'
Universal plastic composite batten that facilitates top-down fixing of decking boards
item# A855-10-28
