QwickBuild® Deck Framing MID HEIGHT DECKS
The Solution for Mid Height Decks
Maximise your outdoor living and entertaining spaces...
QwickBuild makes it fast, efficient and easy to create a perfectly, level transition (no step-down) from interior spaces to the deck area.
The general range for mid height deck structures is 160mm - 250mm (6 1/2" - 10”) including frame and supports.
Due to the proximity to the ground (or substrate), low and mid height decks require additional consideration around moisture-related factors such as material durability, structural stability, access, ventilation, and drainage.
Exclusive Mid Height Advantages

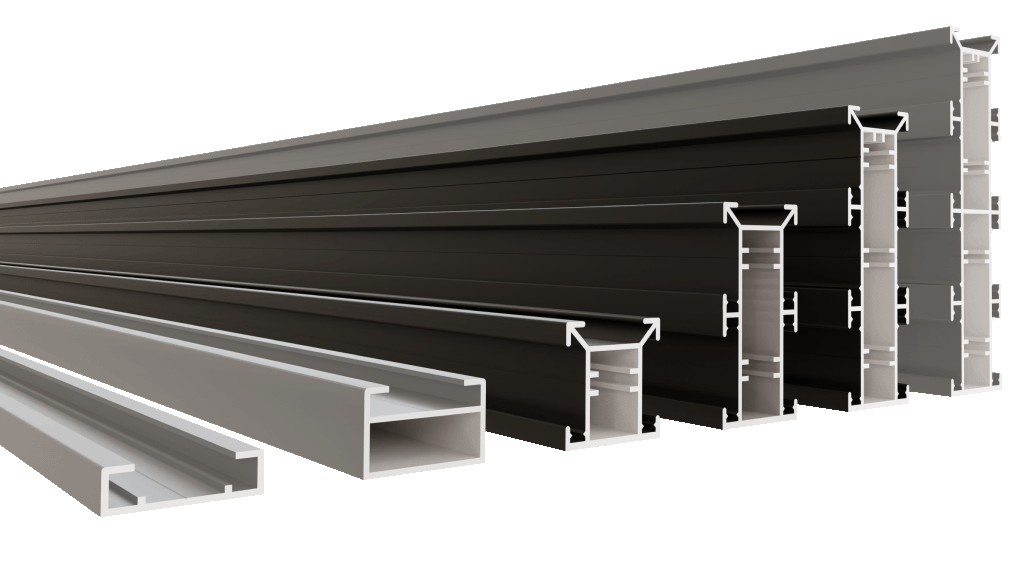

Mid height structures from
1 - 4' including supports
Moisture-proof & dimensionally stable Ideal for pool decks

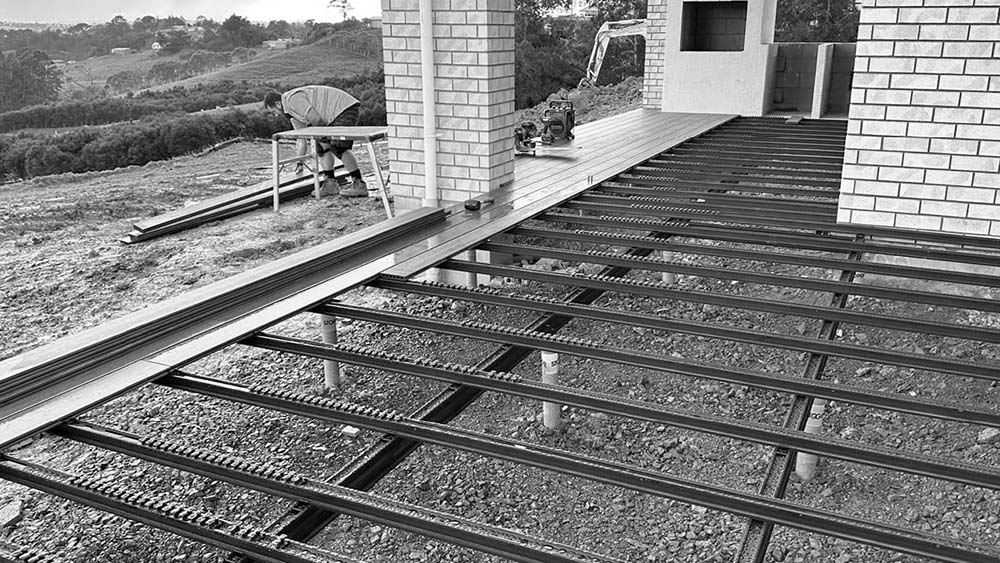

Greater spans result in less footings required & less ground prep

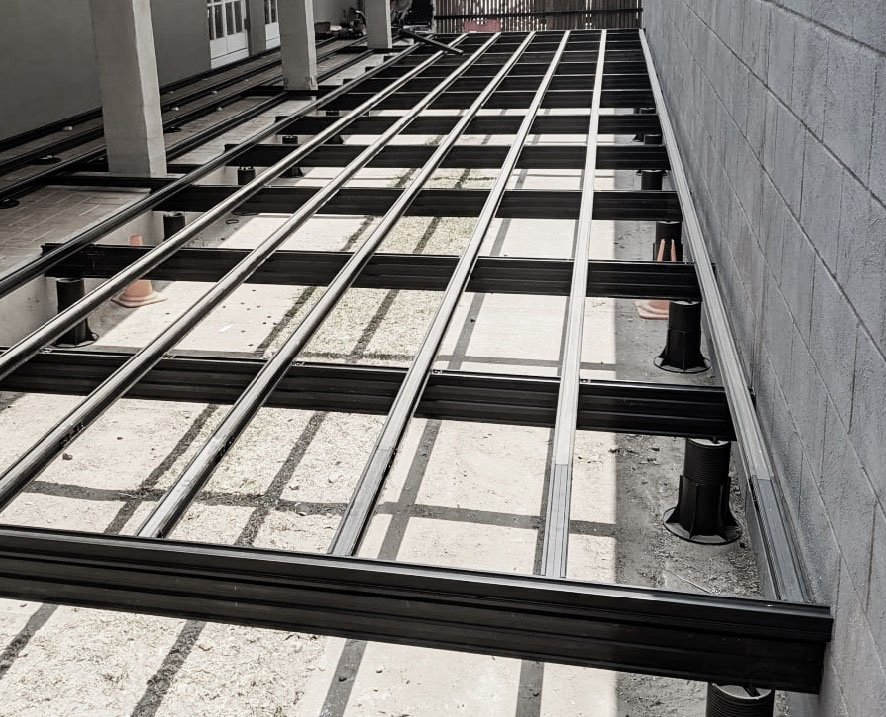

Modular, efficient straight & easy to level & easy, fast installation

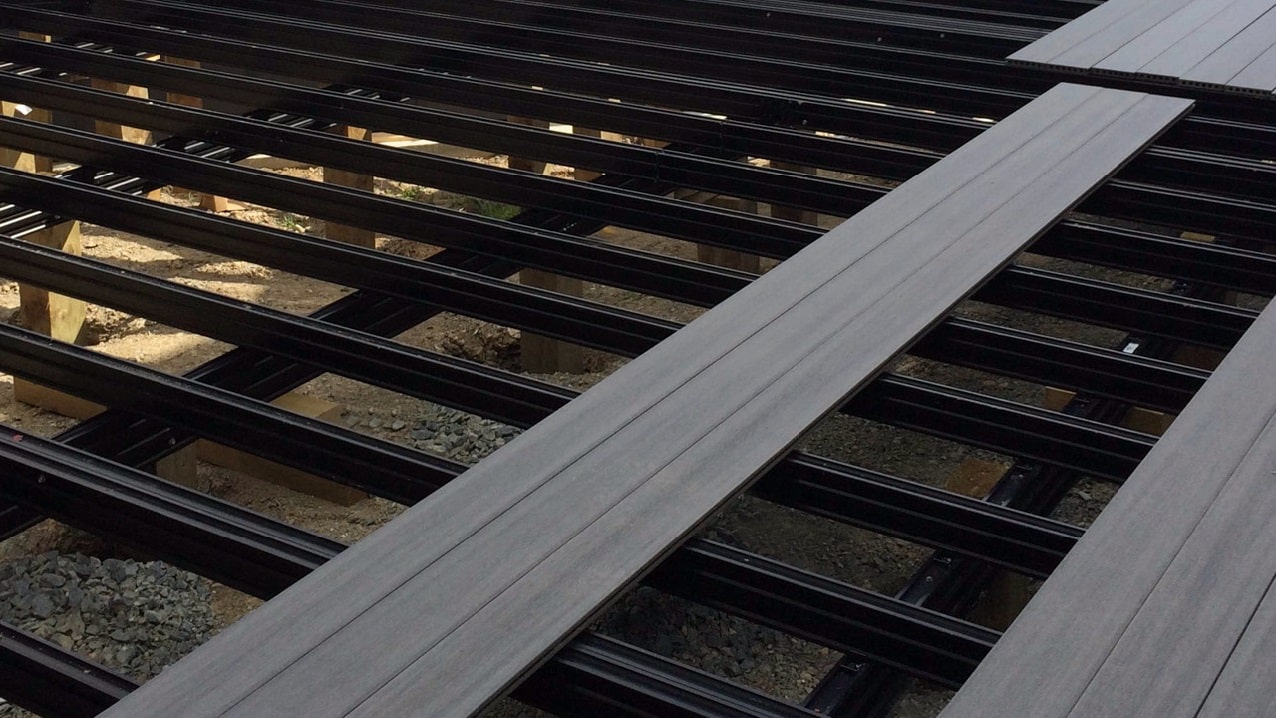

Accurate quantification Minimal material waste

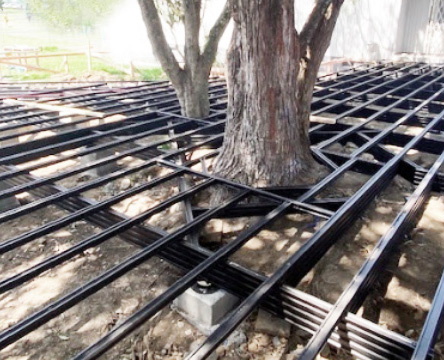

Multi-design options, multi-surface & substratey
mid height deck supports

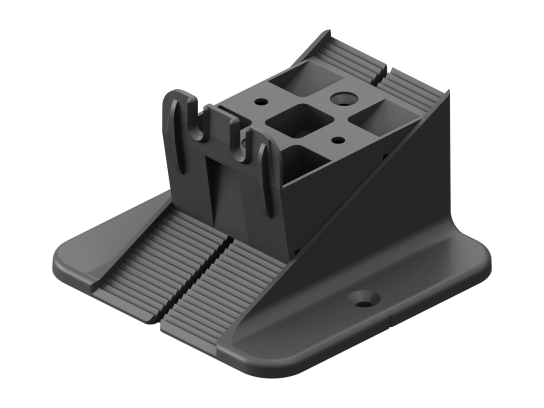

Deck Support
Pedestals & Posts
Simplified Configuratons
A120
The A120 profile can be used as the joist and the beam to achieve a low to mid structure height.
A120 QWICKBUILD PROFILE 2X2"X18'
item# A120-20-58
- Beam = 1.9" (48.2mm)
- Joist = 1.9" (48.2mm)
- Support from 0.1"(2.54mm)
- Surface from 0.9" (22.86mm)
Total finished deck height from 4.6"
A130
The A130 profile can be used as the joist and the beam to achieve an mid to elevated structure height.
A130 QWICKBUILD PROFILE 2X4"X18
Item # A130-20-58
- Beam =
- Joist =
- Support from 0.1" (3mm)
- Surface from 0.9" (23mm)
Total finished deck height from
A140
The A140 profile can be used as the joist and the beam to achieve an mid to elevated structure height.
A140 QWICKBUILD PROFILE 2X6"X18'
Item # A140-20-58
- Beam = 5" (135mm)
- Joist = 5" (135mm)
- Support from 0.1" (3mm)
- Surface from 0.9" (23mm)
Total finished deck height from 11.65" (296mm)

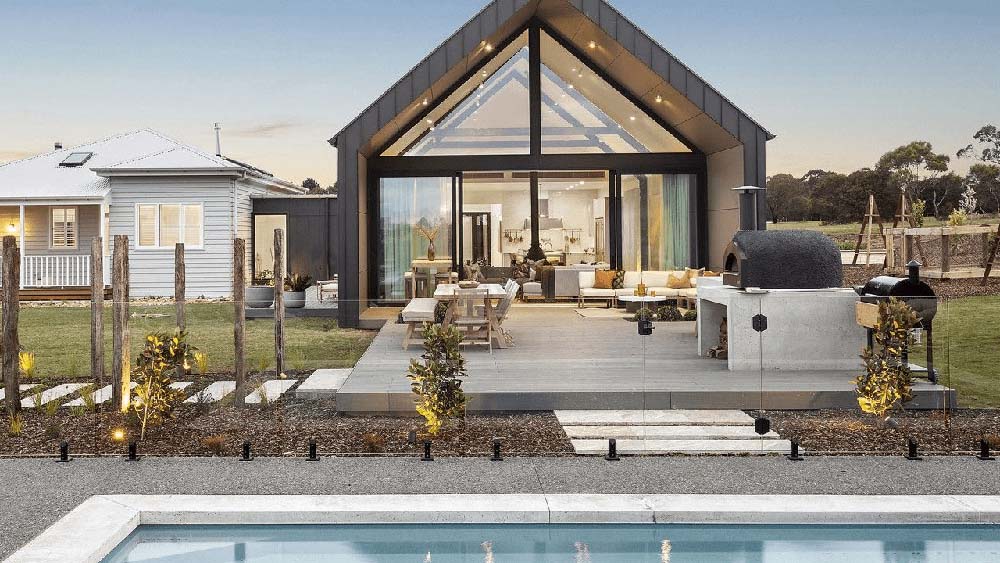

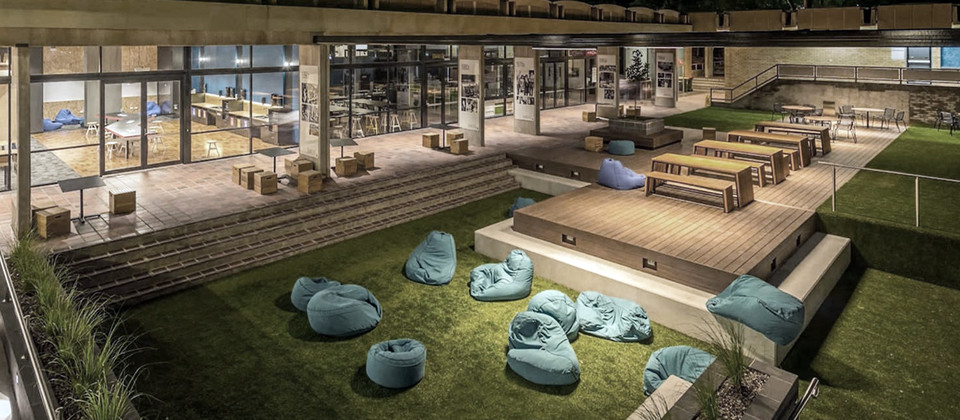

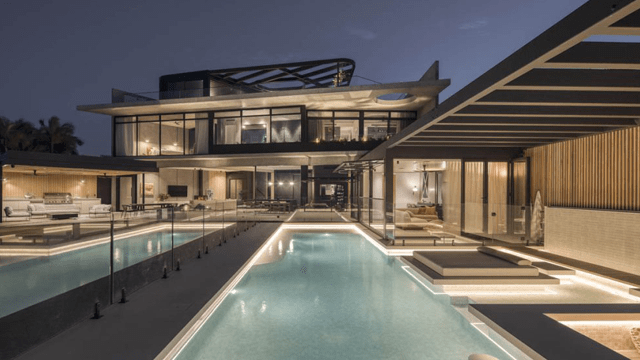

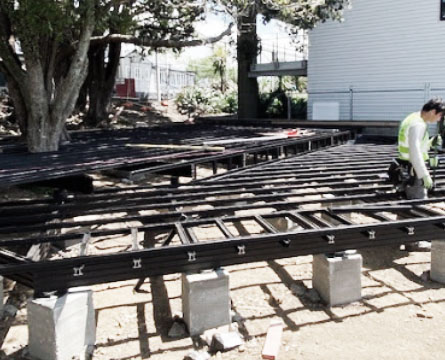

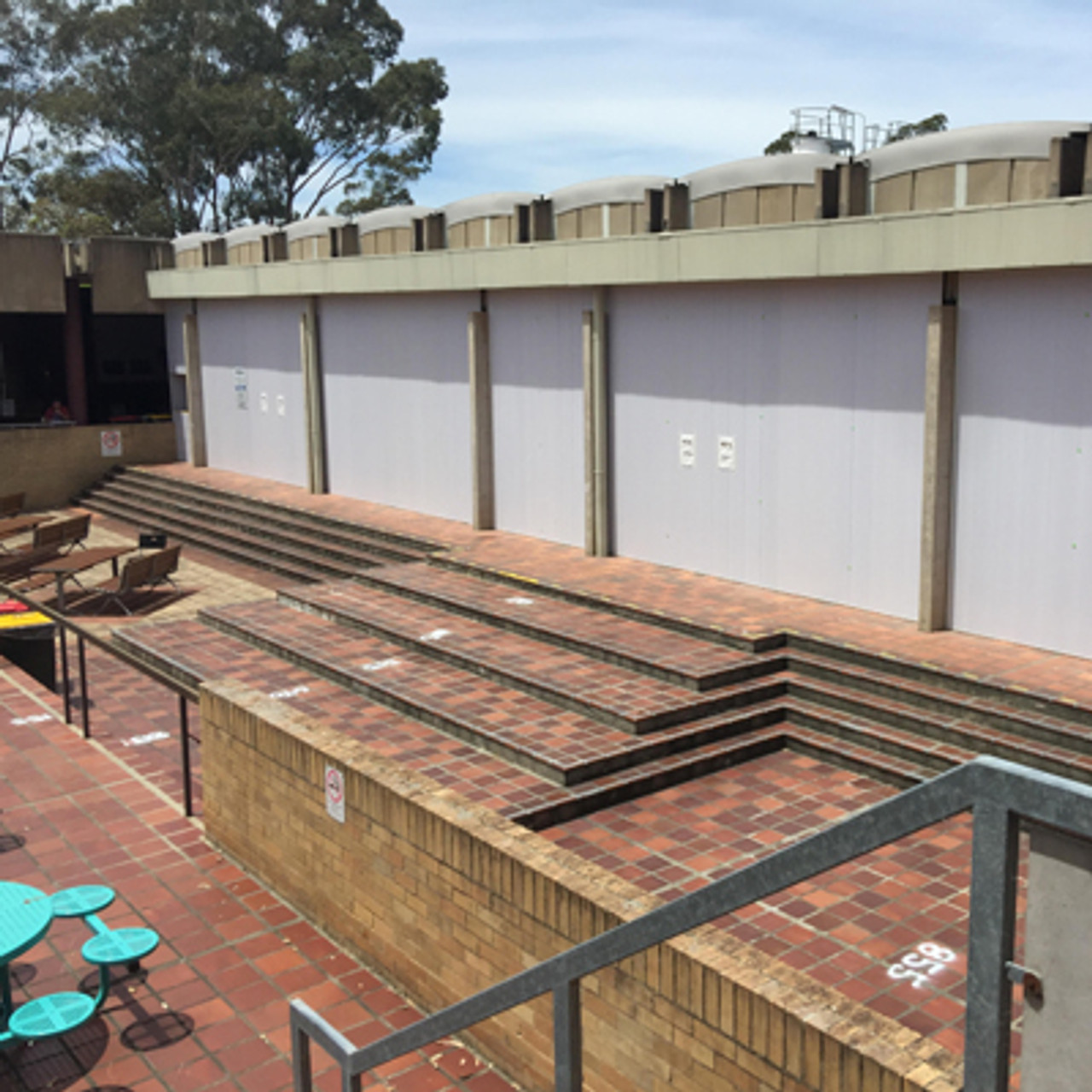

Examples
