QwickBuild® Deck Framing ELEVATED DECKS
The Solution for Elevated Decks

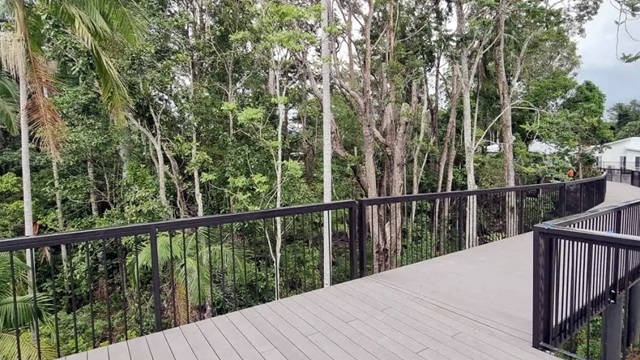

Value-engineered for optimum spans resulting in less footings...
With the development of QwickBuild, Outdure has redefined what a deck is and how it can maximize outdoor spaces.
From the innovation of a ‘tile deck’ to the development of a complete modular solution with capabilities for supporting various surface finishes + integrating design details such as balustrades, ramps, stairs.
The general range for raised height deck structures is from 250mm (10”) including frame and supports.
Safe, elevated structures made from moisture-proof materials.
Raised Height Advantages
Elevated height structures over 4 foot

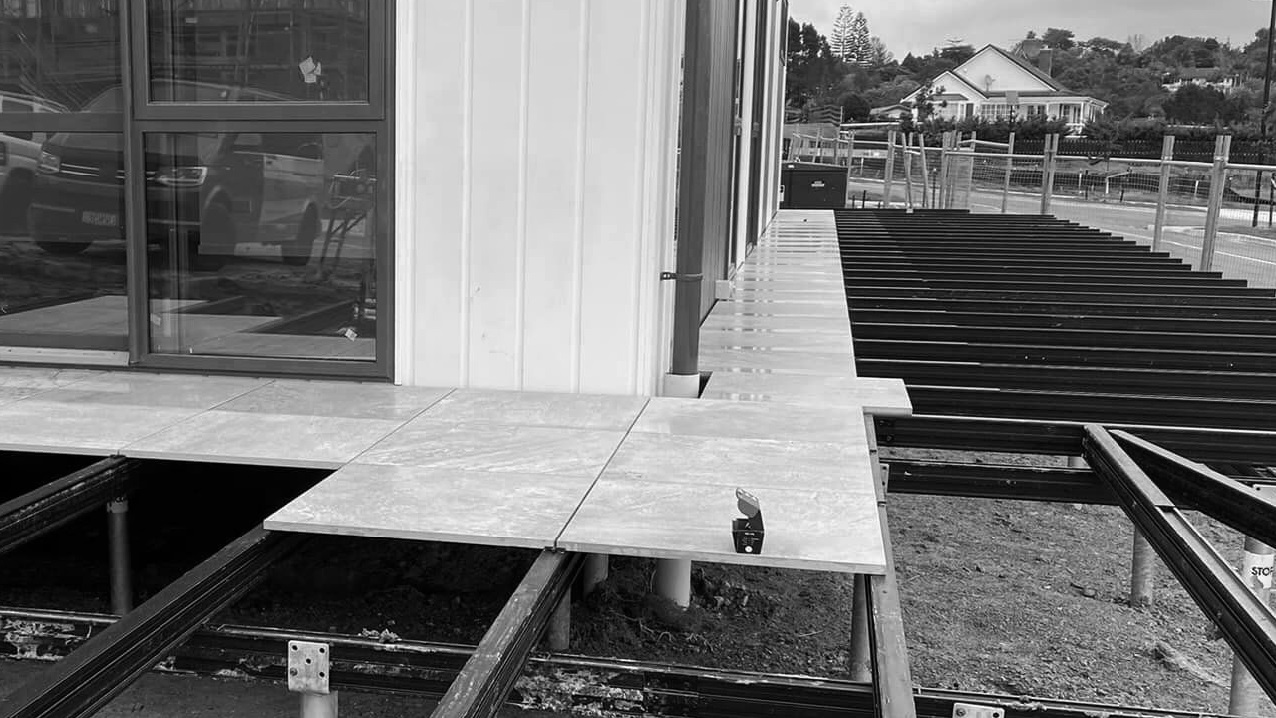

The ability to create an elevated tile deck

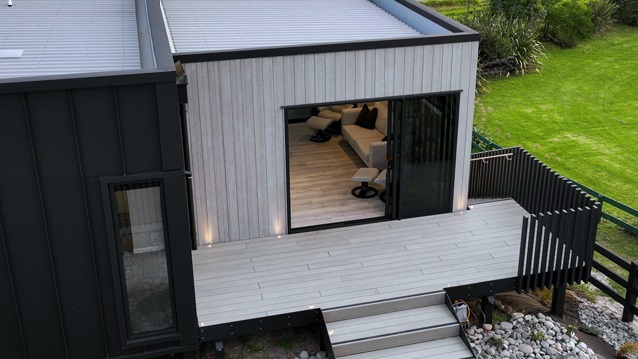

Excellent finishing Straight, level materials
Superfast installation QwickBuild QwickClip hidden fixings

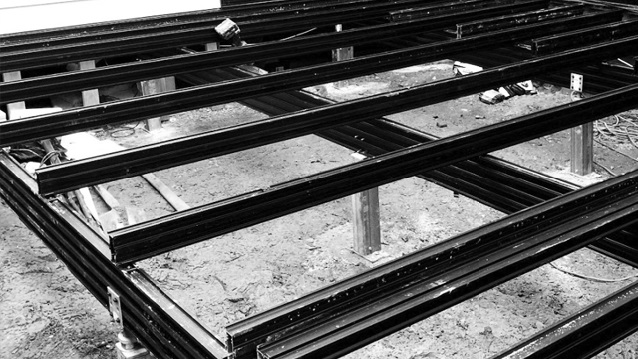

Greater spans result in less footings required & less ground prep

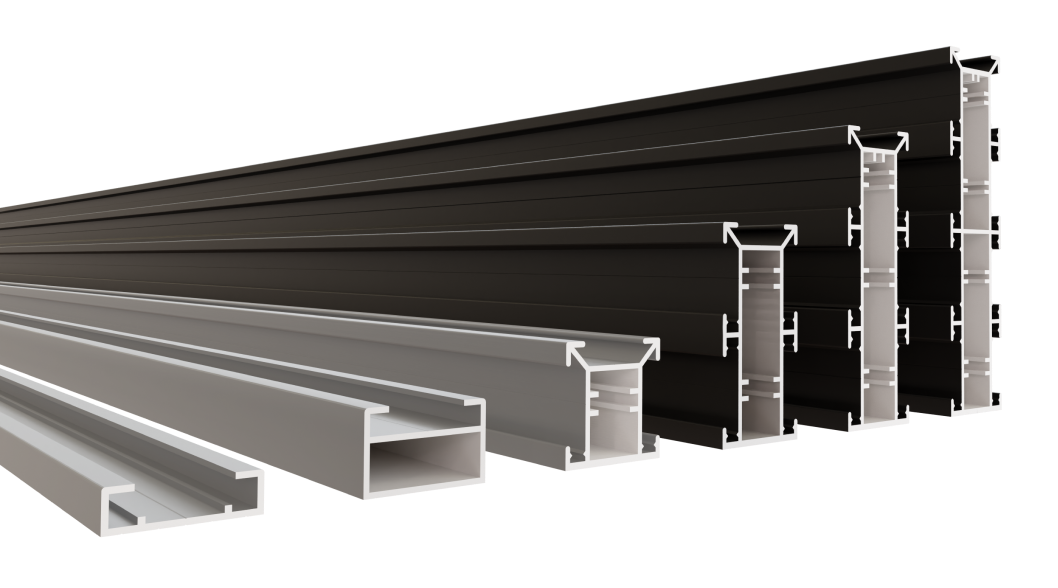

Simplified Configuratons
A130
The A130 profile can be used as the joist and the beam to achieve an mdi to elevated structure height.
A130 QWICKBUILD PROFILE 2X4"X18
Item# A130-20-58
- Beam =
- Joist =
- Support from 0.1" (3mm)
- Surface from 0.9" (23mm)
Total finished deck height from

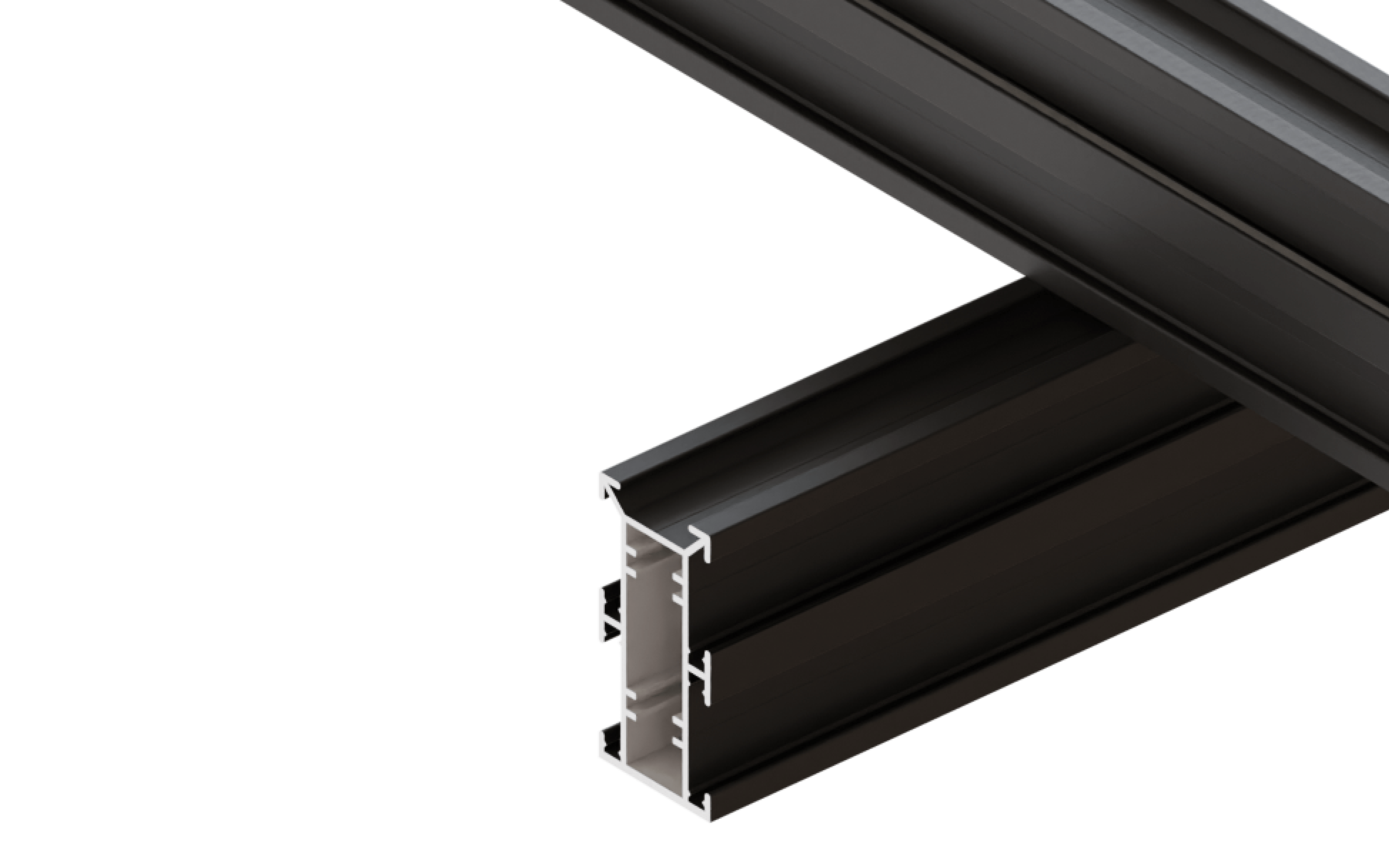

A140
The A140 profile can be used as the joist and the beam to achieve an mid to elevated structure height.
A140 QWICKBUILD PROFILE 2X6"X18'
Item # A140-20-58
- Beam = 5" (135mm)
- Joist = 5" (135mm)
- Support from 0.1" (3mm)
- Surface from 0.9" (23mm)
Total finished deck height from 11.65" (296mm)
A150
The A150 profile can be used as the joist and the beam to achieve an elevated structure height.
A150 QWICKBUILD PROFILE 2X8"X18
Item# A150-20-58
- Beam = 7" (180mm)
- Joist = 7" (180mm)
- Support from 0.1" (3mm)
- Surface from 0.9" (23mm)
Total finished deck height from 15" (386mm)
Examples
