The HALO UP-DOWN 100-230 V is an elegant and robust dimmable wall light with a sleek and wide light display on walls and diffuse light display both upward and downward for added ambiance. The fixture can only be connected to the power supply.

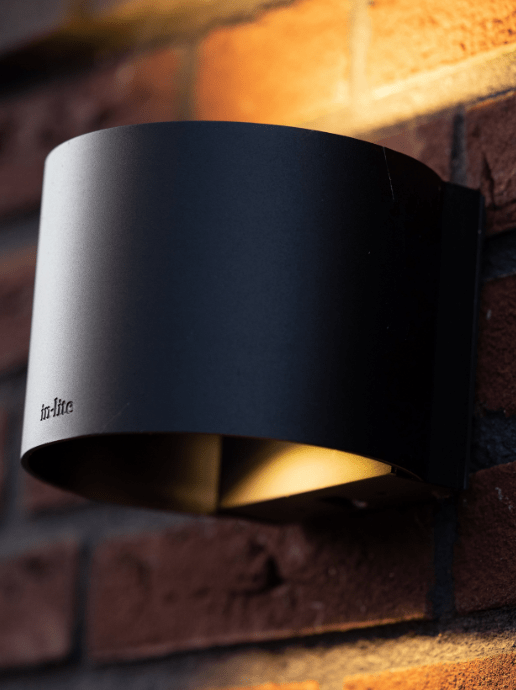

The HALO UP-DOWN 100-230 V is an elegant and robust wall light with a sleek and wide light display on walls and diffuse light display both upward and downward for added ambiance. This fixture can only be connected to the power supply, making it suitable for use on house walls, garages and storage sheds.
The HALO UP-DOWN 100-230 V is technically designed so that it can be connected to a dimmer*. The beam of light produced by the HALO DOWN can also be adjusted widthwise using the separately available SHUTTER 2. This makes it possible to adapt the lighting/ambiance produced by the HALO 230 wall light as desired. This wall light is part of the HALO series and also available as a 230 V down light and in a 12 volt version
* In accordance with the technical specifications in the manual.
Installation Advice:

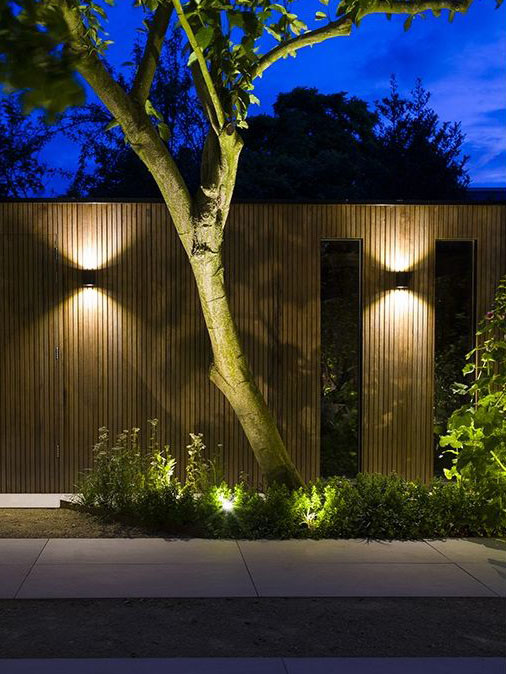

A HALO UP-DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters
Installation Instructions:
Halo Up-Down, 100-230V installation guideHALO UP-DOWN 100-230V may only be installed by a certified electrician. The dimmer to be connected must comply with the specified technical guidelines in the manua
Available Colours:
Black
| Length | 130 mm | 5.12 in |
| Width | 130 mm | 5.12 in |
| Height | 100 mm | 3.94 in |
| Housing Material | Aluminium |
| Diameter | 130 mm | 5.12 in |
| Dimmable | yes |
| Voltage | 120V |
| Colours | Black |
| Application | Roof |
| Power | 8.4W |
| Energy label | G |
| Electric potential | 20VA |
| Light source | LED |
| Burn time | 25000 |
| Light direction | Downwards and Upwards |
| Lighting reach | 2.5 m | 8.2 ft |
| Light angle | 85° |
| Light color | Warm white |
| Color temperature | 3000K |
| Luminous Efficacy | 41lm/W |
| Net Luminous Flux | 346lm |
| IP-class | 55 |
| CRI | 92 |
