in-lite wall lighting

in-lite Halo Down Dark 12v light illuminating dining table.

Halo Down 100-230V

The HALO DOWN 100-230V is an elegant and robust dimmable wall light with a sleek and wide light display on walls and diffuse light display on the ground for added ambiance. The fixture can only be connected to the power supply, making it suitable for use on house walls, garages and storage sheds.

  • Produces a focused downward light
  • Designed for illuminating an outside wall
  • Connects directly to 230 volt

The HALO DOWN 100-230V is technically designed so that it can be connected to a dimmer*. The beam of light produced by the HALO DOWN can also be adjusted widthwise using the separately available SHUTTER 2. This makes it possible to adapt the lighting/ambiance produced by the HALO 230 wall light as desired. This wall light is part of the HALO series and also available as a 230 V up-down light and in a 12 volt version.

* In accordance with the technical specifications in the manual.

Installation Advice:

A HALO DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

Installation Instructions:

PDF Image icon Halo Down, 100-230V installation guide

This fixture is only suitable for mounting on 230V, follow the instructions in the manual. HALO DOWN 100-230V may only be installed by a certified electrician. The dimmer to be connected must comply with the specified technical guidelines in the manual.

Available Colours:

Black

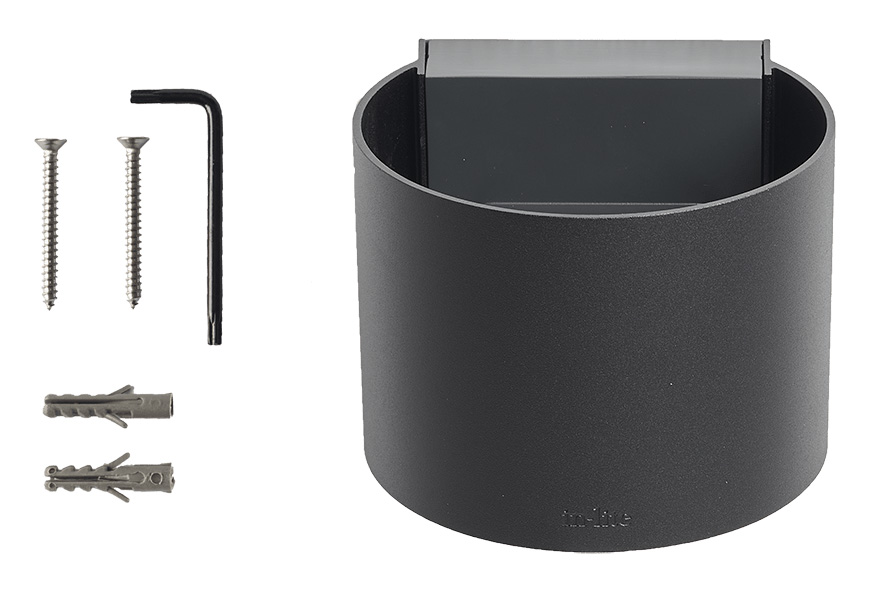

Halo Down Dark, 100-230v light, package contents
Included, In the Box:
  • 2x Screw
  • 2x Nylon plug
  • 1x Torx wrench

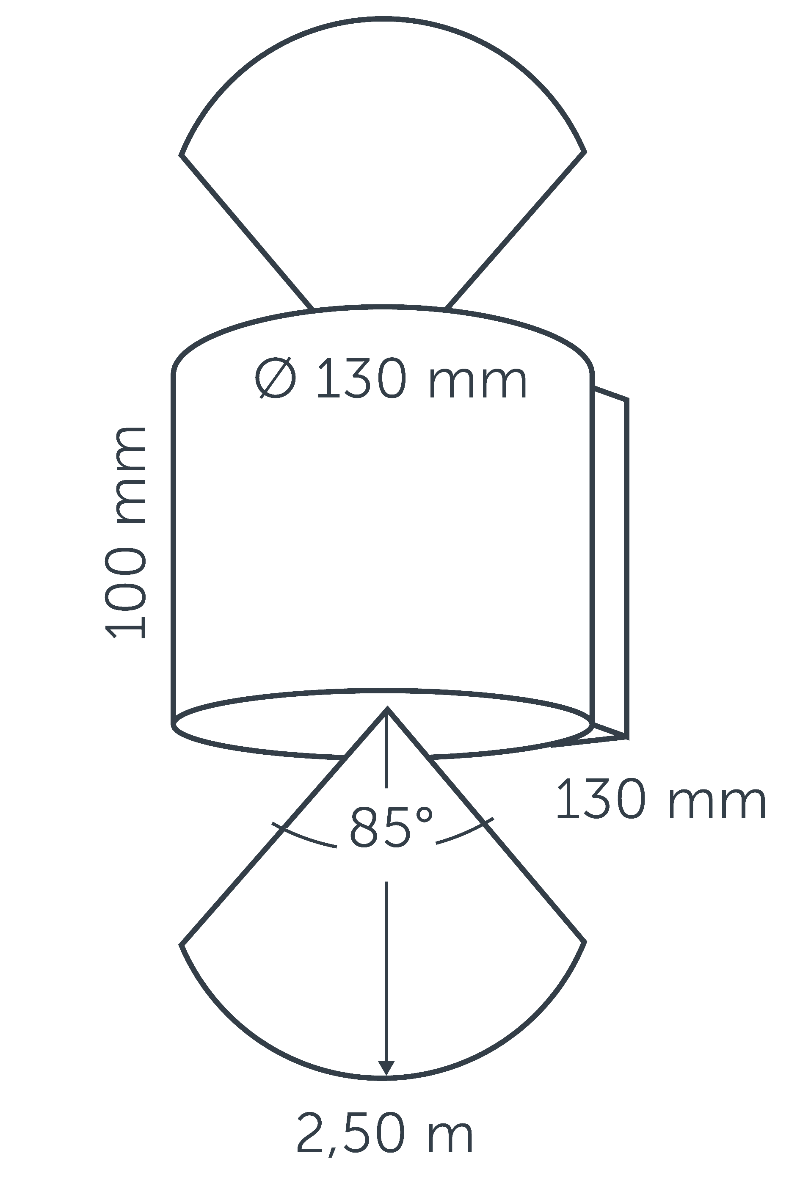

diagram of the Halo Down 100-230V light's projection
Halo Down 100-230v light, showing looking down at the top side of the lens

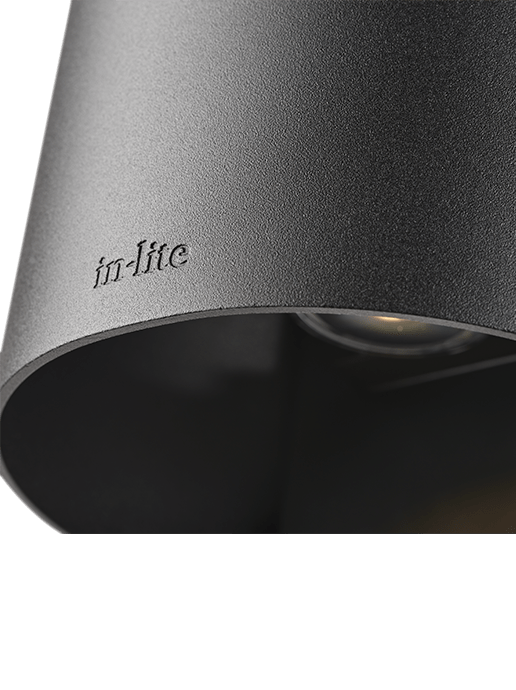

Halo Down 100-230v light, showing lens

Specifications

Length 130 mm | 5.12 in
Width 130 mm | 5.12 in
Height 100 mm | 3.94 in
Housing Material Aluminium
Diameter 130 mm | 5.12 in
Dimmable yes
Voltage 120V
Colours Black
Application House walls, garages and storage sheds
Power 4.5W
Energy label G
Electric potential 11.5VA
Light source LED
Burn time 25000
Light direction Downwards
Lighting reach 2.5 m | 8.2 ft
Light angle 85°
Light color Warm white
Color temperature 3000K
Luminous Efficacy 42lm/W
Net Luminous Flux 191lm
IP-class 55
CRI 92
