Vista Aluminum Glass Railing System-Frameless
Aluminum Frameless Glass System
Quick and Easy Installation

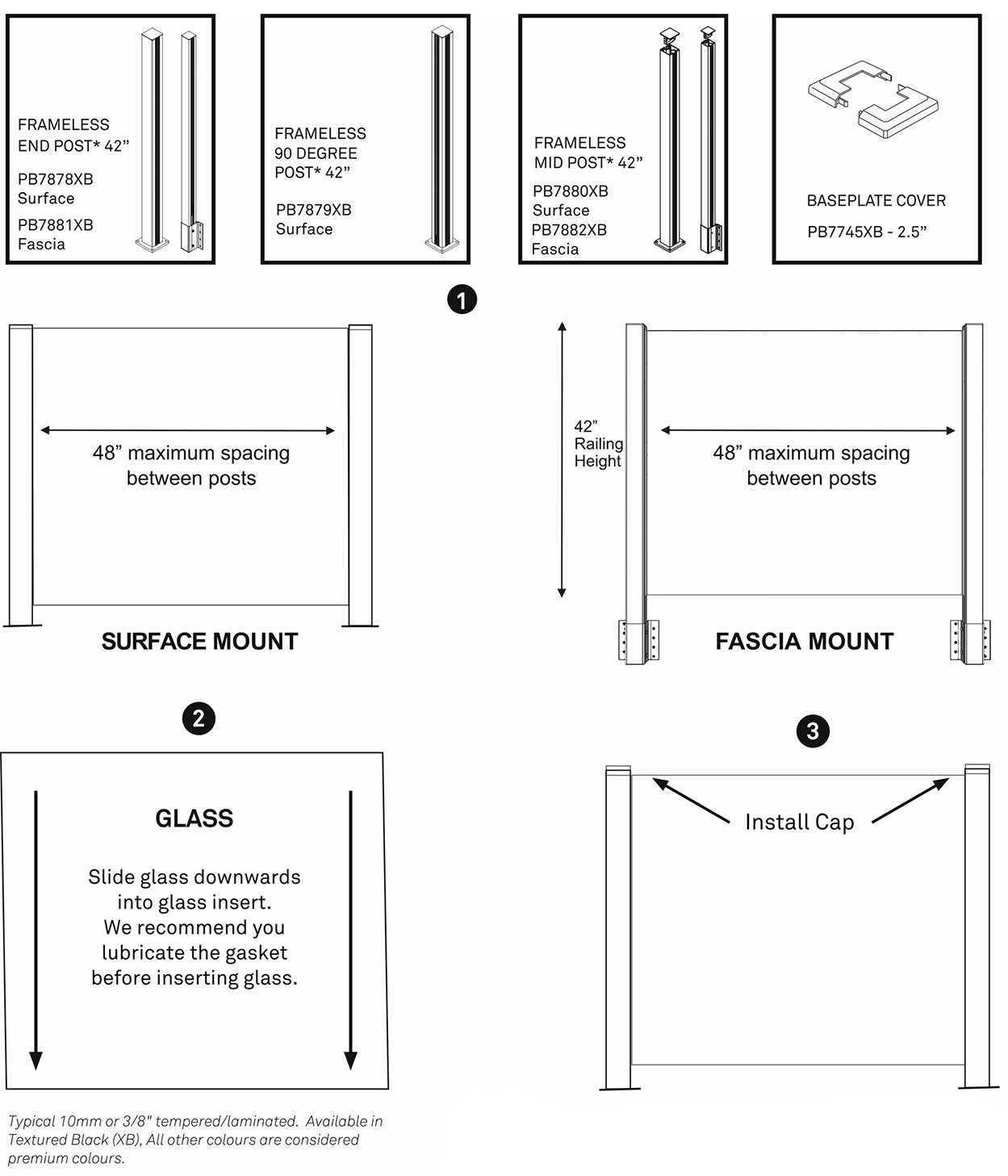

Set posts, slide glass panels into vertical slots in posts, press post caps into place. Stylish and Simple!
Posts
Premium powder-coated, pre-assembled posts feature vertical slot with glass gasketing
Glass
Frameless glass railing requires a thicker, stronger glass which may need to be laminated depending on your specific application. Glass panels for this premium railing line are custom ordered/manufactured per section.
Engineered Test Reports
Practical engineered stamp, post layouts, post fixing, attaching to the deck.
MANUFACTURE'S NOTE: When railing is being used as a guardrail, do not exceed the 48" center-to-center spacing as this is outside the engineering specifications and is at the end user's own risk and could result in a failed inspection. It is the sole responsibility of the homeowner/contractor to comply with local building codes. The glass code may require a top rail.
Please ensure you check with your local building inspector prior to proceeding with any purchase or work.

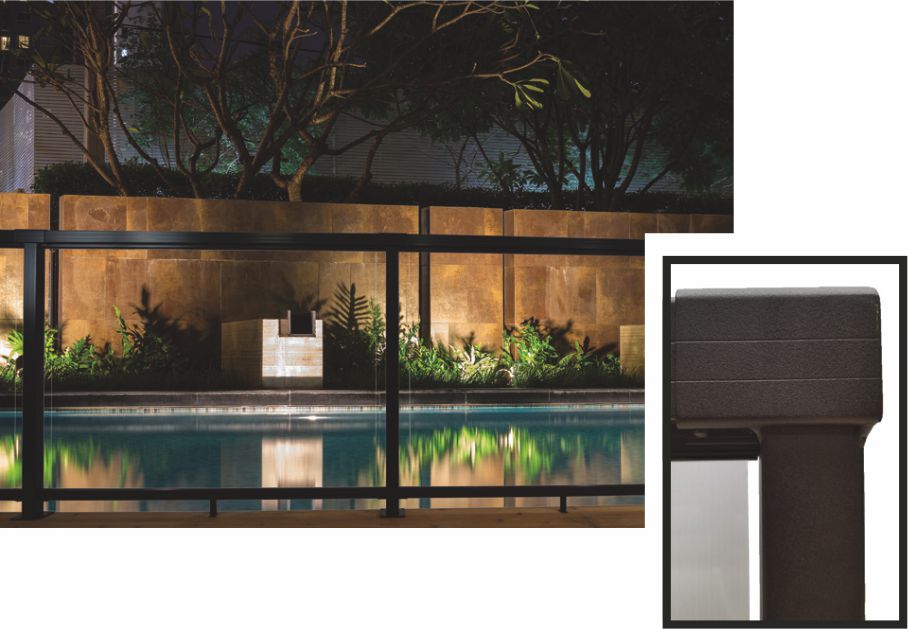

Aluminum Glass Framed Railing System
Aluminum Glass Framed Railing System

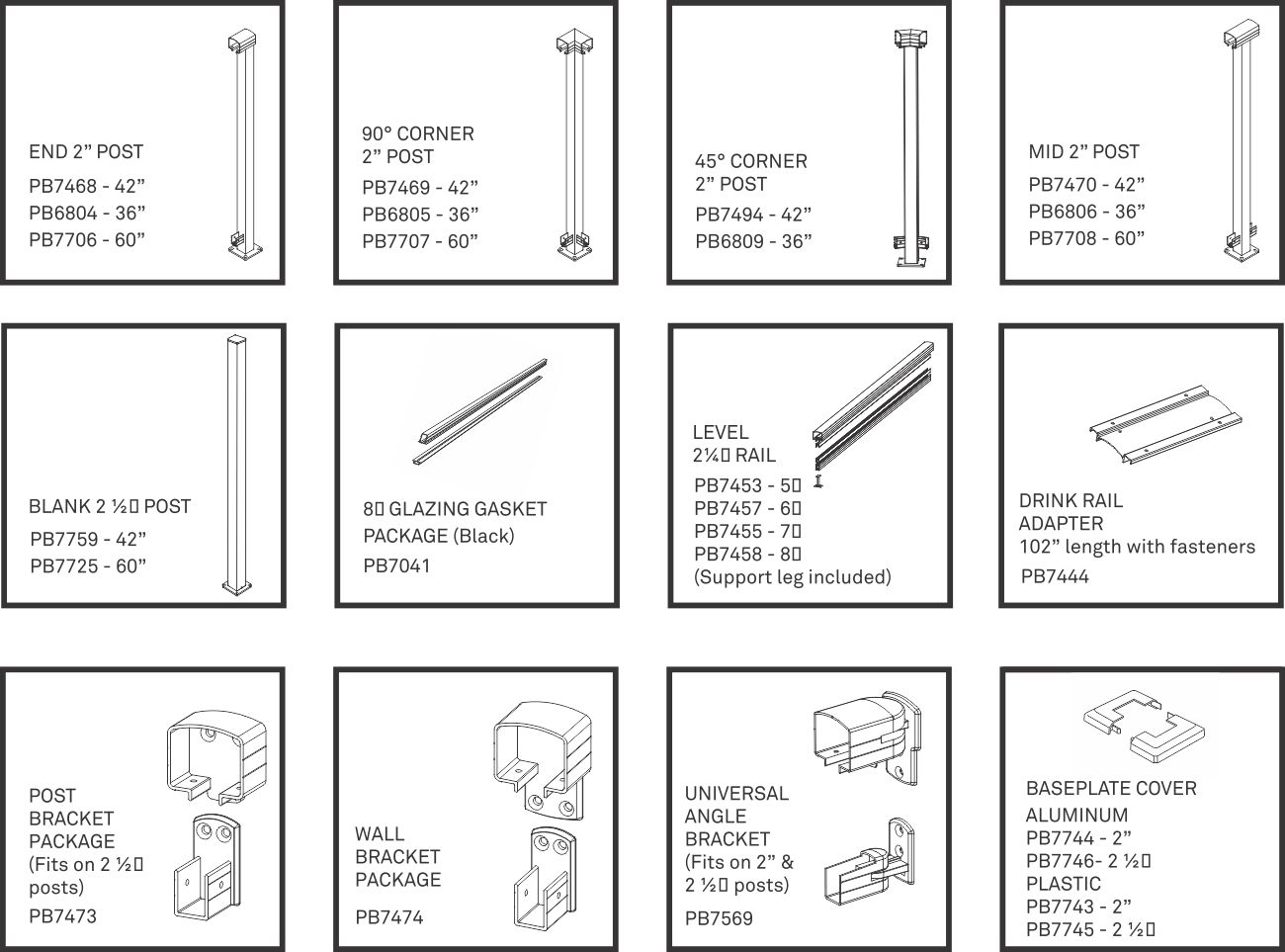

Fully Pre-Assembled Posts
Factory attached and sleeved posts mean quick and simple assembly and assures a professional fit and finish.
Low Maintenance
Vista's aluminum railing system has premium powder-coating applied through a rigorous pre-treatment and powder-coating process. No painting, no staining, no rust or rot!
Engineered Design Manual
Stamped by professional Engineers for use by Designers, Architects, Engineers and Professional Installers.
Assembly Fasteners Provided
Includes all fasteners required to assemble railing sections.
Cap Rail Adaptor
Creates a flat surface that connects decking and railing in a clean and continuous style.
Glass Panels

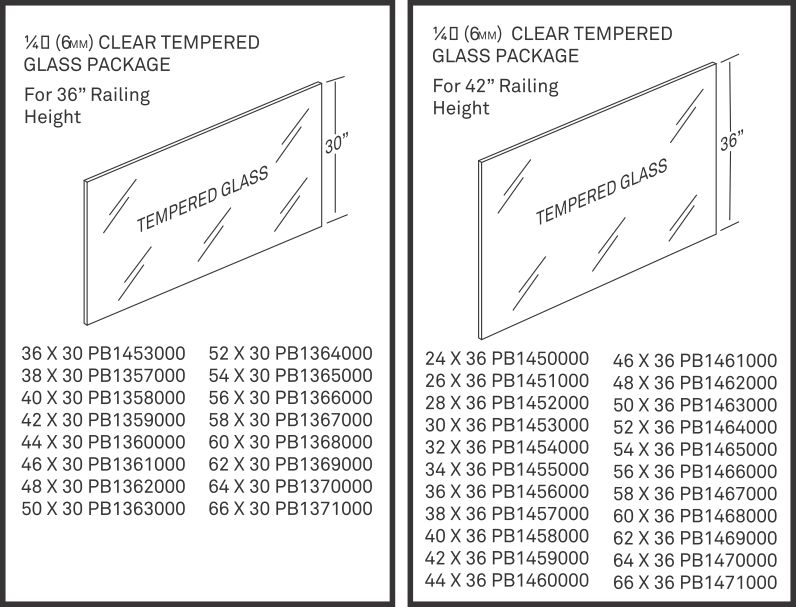

ΒΌ" (6mm) Clear Tempered Glass Panels available in 2" increments from 24" to 66".
Vista Railing Aluminum Glass Rail Installation
MANUFACTURE'S NOTE:
36" Rail Height requires 30" high glass
and 60" Rail Height requires 54" high glass
(Custom orders). The finished width of the
glass is up to 2" less than the distance
between posts.
Available in Textured Black (XB), Textured Bronze (YB), Gloss Black (BK), Gloss White (WT), or Textured Grey (TG) as a premium colour (available in 42" railing height only).
Check with the local building department as local building codes and bylaws may apply.
