InvisiRail

More Railing

InvisiRail Glass With "Top" Railing Canadian Product

Invisirail top rail for glass railing

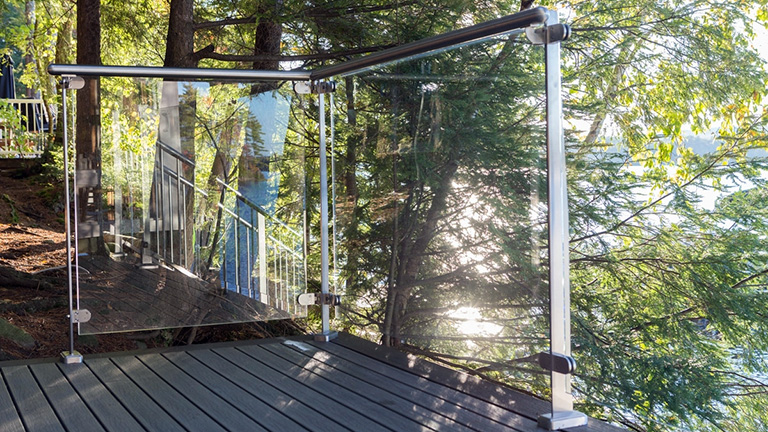

InvisiRail, Glass Top Railing

Different top rail options are available to provide additional strength to your railing while minimizing large visual obstructions to your view.

Warranty Details
ELIGIBILITY- InvisiRail, Inc. (the “Warrantor”) is pleased to extend this Warranty to you, the original consumer/end user (the “Consumer”) of the SLX InvisiRail product. This Warranty is valid for SLX InvisiRail Railings (“Railing Product”) used in standard residential applications, and may not be assigned or transferred by you.

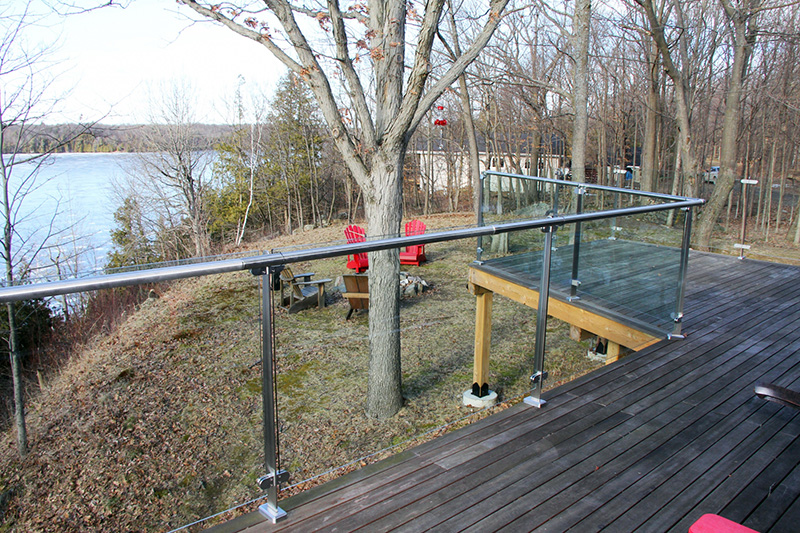

TOP RAIL

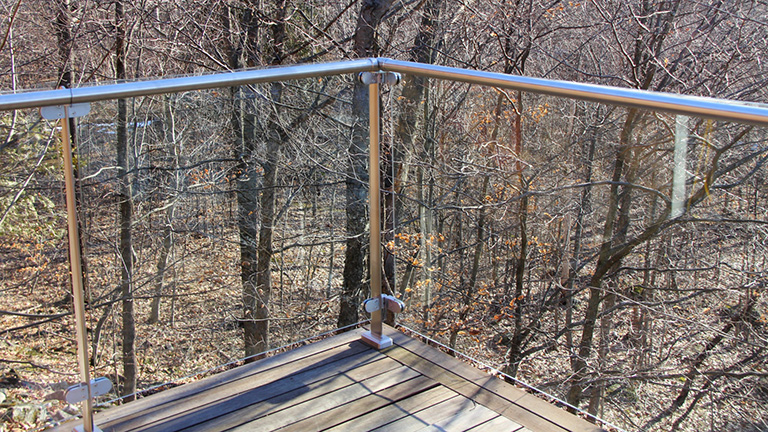

Stainless Steel Round 1-5/8" Pipe Stainless Steel Round 1-5/8" Pipe
  • 316 Grade Stainless Steel
  • Available in 6’ and 8’ lengths
  • Various fittings available i.e. joiners, end caps, pivots etc.

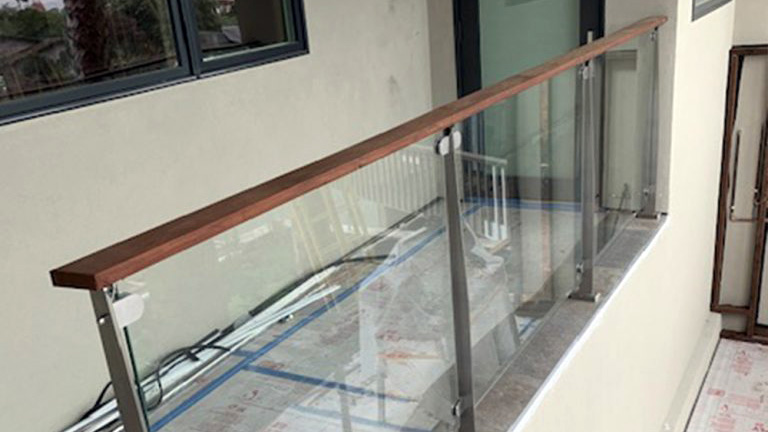

Wood/Deck Board Top Rail and Brackets Top Rail Brackets
  • 316 Grade Stainless Steel Bracket
  • Used to support deck boards (min 2.5" wide) to be used as a top rail
POST OPTIONS
InvisiPosts InvisiPosts
  • Stainless Steel, Satin Black, Matte Black, Satin White, Matte White
  • 36.5”, 42.5”, 54” tall post
  • Available in Surface or Fascia mount
  • 5/16” or 3/8” wide*
  • Compatible with Stainless Steel Glass Clamps
Visti Post Visti Post
  • Satin Black, Satin White
  • 37.5”, 43.5” tall
  • Available in Surface or Fascia mount
  • 2.25” square post
  • Compatible with Stainless Steel or Lite 10 Glass Clamps
ALX Classic PostALX Classic Post
  • Textured Black, Textured White, Weathered Brown, Bronze, Brushed Titanium
  • 39”, 44”, 49”, 54” tall
  • Surface Mounted
  • 2.5” square post, 5” square base
  • Compatible with Stainless Steel or Lite 10 Glass Clamps

Connectors & Spacers

Stainless Steel Connectors Stainless Steel Connectors
  • 316 Grade Stainless Steel
  • Solid Stainless Steel Pin Supports Glass
  • 1.75" tall x 2.5" wide
  • Designed to be used with 8mm, 10mm, or 12mm glass
Mult-Angle Adapter Connector Mult-Angle Adapter Connector
  • 316 Grade Stainless Steel
  • adapter accomodates any angle up to 95 degrees
45° Angle Wedge  Stainless Steel Spacer Blocks
  • 45° angle wedge
  • 316 Grade Stainless Steel
Stainless Steel Spacer Blocks Stainless Steel Spacer Blocks
  • 10mm Stainless Steel Spacer
  • Stackable
  • available in 3/8", 1/2", 3/4" & 1" thickness
  • blocks allow standard panels to fit most openings
Lite 10 Connectors Lite 10 Connectors
  • Black, White, Cedar
  • Nylon
  • Compatible with wood posts
  • Attaches to any flat surface
  • Glass sits flat in bottom clips, threaded nylon pin supports glass through top clips
  • Designed to be used with 10mm glass
  • Stackable wedges can handle angle combinations in 11.25° & 45° increments.
Lite 10 Spacers Lite 10 Spacers
  • Black, White, Cedar
  • Nylon
  • Available in widths of 1/4", 3/8", 1/2" and 3/4"
  • Stackable
Flange Mount Handrail Bracket Glass Mount Handrail Bracket
  • for 42mm pipe
  • Stainless steel
Stainless Steel End Post Skirt Stainless Steel End Post Skirt
Rail Rod Connectors Rail Rod Connectors
GATE HARDWARE
Gate Handle  Gate hardle
Gate Lock Visti gate lock
Gate Key Lock Gate Key Lock
Gate Hinge  Gate Hinge

Hinge in set of 2. One hinge with hydraulic control and one hinge with spring loaded.

Bracket Braclet
