timberTech PVC rail - Pinnacle
Pinnacle Rail™ Kits
Includes: 3-1/2″ Rail Kit with reinforcements, 13″ solid balusters for 6′ or 18′ solid balusters for 8′, hardware, and footblocks
- Section Size Options: 6′ and 8′ sections
- Colour: White
Rail Gate Kit
Beautiful, sturdy PVC gates reinforced with aluminum and featuring a latch system. Crafted with no open cells. Available for 36″ and 42″ wide openings.
Rail Lighting
Compatible with most rail lighting options for composite rail, bringing warmth and life to your design.
Pinnacle Top Rail™
- Milled wood detailing with decorative panels
- Screw-together rail system allows for custom baluster spacing and delivers a rigid fit
- Top rail: 3.5″ x 1.875″
- Lengths available: 6′ and 8′
- Available in white
- Limited 25 year warranty

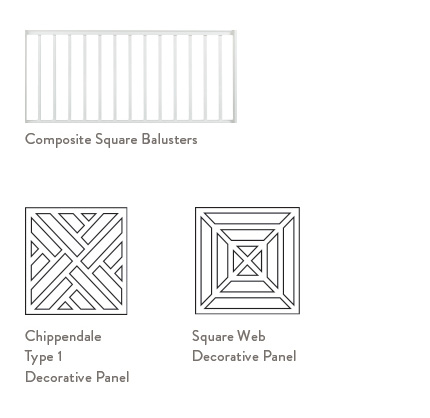

Pinnacle Rail™ - Infill Options
- Solid square PVC balusters
- Chippendale type 1 decorative panel (36″ and 42″)
- Square web decorative panel (36″ and 42″)
Pinnacle Rail™ - Infill Options
- All available in White

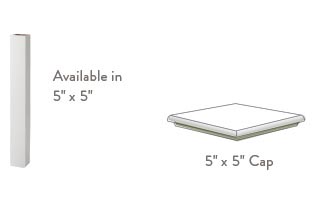

- 5″ sq. ft. x 48″ post sleeve, 3/8″ wall with adjustable shims
- 5″ sq. ft. x 108″ post sleeve, 3/8″ wall with adjustable shims
- 1″ x 6-3/4″ plain flat post cap to fit 5″ sq. ft. post sleeve
- Base post skirt ring for 5″ extruded post sleeve
Pinnacle Rail™ actual lengths are out of the box to be cut down for an on-center measurement depending on the post sleeve dimension and/or stair angle.
Pinnacle Level 6′ and 8′ sections (72″ and 96″)
Pinnacle Stair 6′ and 8′ sections (72″ and 96″)
