In-Lite | In-Lite Wall Lighting

More Lighting

in-lite wall lighting

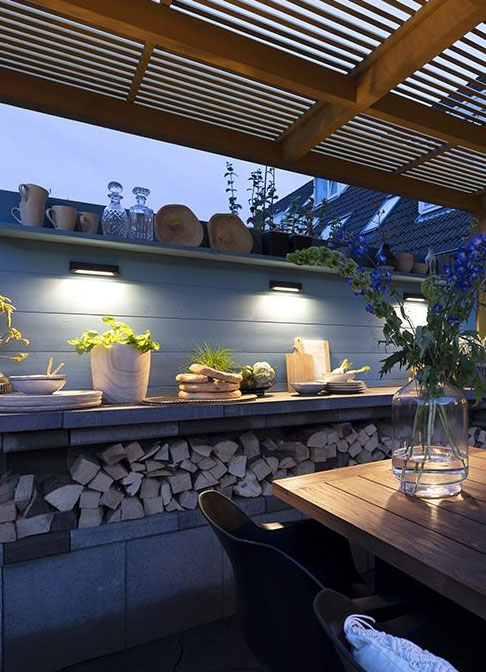

in-lite Wedge Slim 12V light installed under a shelf to illuminate a counter.

Wedge Slim 12V

The WEDGE SLIM DARK is a slim wall fixture with a wide light beam that is perfect for use as directional lighting on, for example, low walls or along driveways or paths.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable.

  • Produces a wide and attractive downward light
  • Designed for illuminating a low fence or wall
  • Available in three sizes

Installation Advice:

A WEDGE SLIM every 2 to 2½ meters at a height of 1 to 1.6 meters

Installation Instructions:

PDF Image icon Wedge Slim 12V light, installation guide

Simple mounting with supplied screws and plugs. Preferably mount the wall fixture below eye level (maximum height about 1.50m), otherwise there is too much insight into the light source.

Available Colours:

Dark Grey

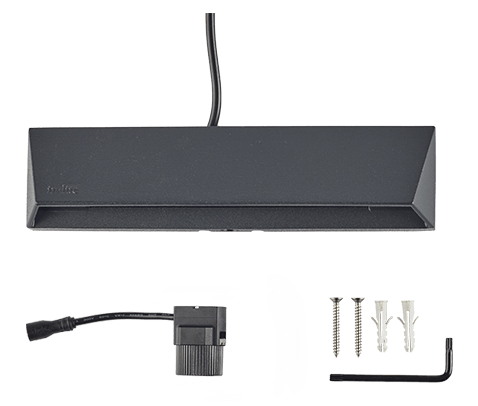

Wedge Slim 12V light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench
diagram of the Wedge Slim wall light's projection
Wedge Slim 12V light installed on a fence

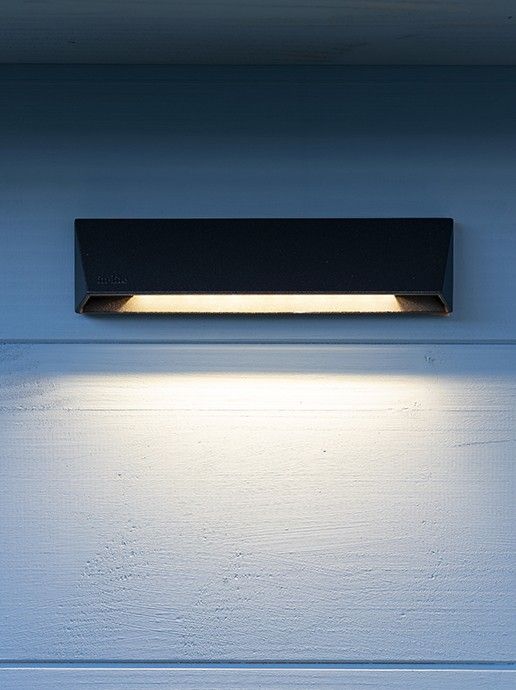

Wedge Slim 12V light installed on a wall

Specifications

Length 35 mm | 1.38 in
Height 50 mm | 1.97 in
Width 200mm | 7.87in
Housing Material Aluminium
Dimmable no
Voltage 12V
Colours Dark Grey
Application Schutting, Roof
Power 1W
Energy label G
Electric potential 1VA
Light source LED
Burn time 25000
Light direction Downwards
Lighting reach 1.5 m | 4.92 ft
Light angle 106°
Light color Warm white
Color temperature 2800K
Net Luminous Flux 36lm
Luminous Efficacy 36lm/W
IP-class 55
CRI 96
