The LIV WALL wall light is a warm silver, grey or white coated aluminum fixture with a narrow silver-colored ring. Produces uniform, warm white ambient light.

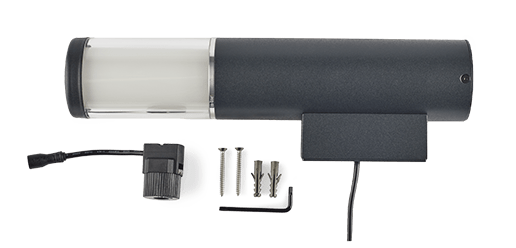

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
Tip: Think of an extension cable.
Suitable for illuminating fences, walls and garage (doors). Can also be connected to 230V line voltage using the separately available 10W transformer (CB-010E).
Installation advice: A LIV WALL every 2 to 2½ meters at a height of 1.4 to 1.6 meters
Installation Instructions:
Liv Wall 12V light, installation guideMount using the included screws and plugs. Can also be connected to 230V line voltage using the separately available CB-010E mini-transformer. Caution! The 230V connection must be made by a licensed electrician.
Available Colours:
White, Rosé Silver, Dark Grey

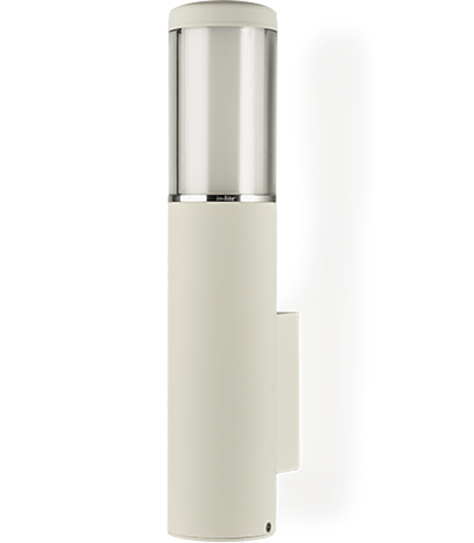

white

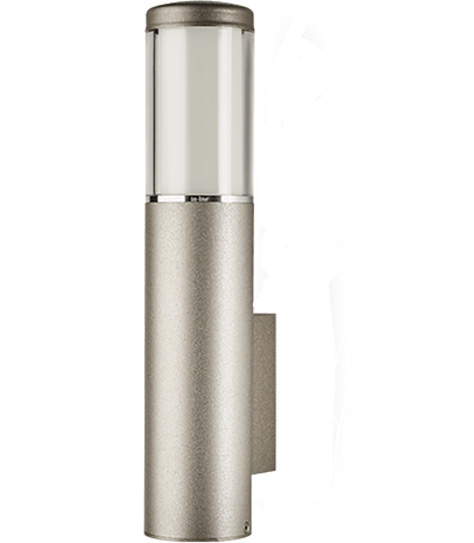

Rosé Silver

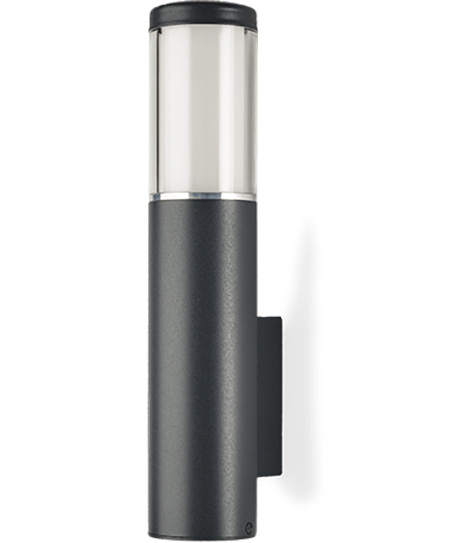

Dark Grey
ROSÉ SILVER, Dark Grey, White
| Width | 99 mm | 3.9 in |
| Height | 325 mm | 12.8 in |
| Diameter | 67 mm | 2.64 in |
| Housing Material | Aluminum |
| Dimmable | No |
| Voltage | 12V |
| Colours | White, Rosé Silver, Dark Grey |
| Application | Schutting, house, fence or wall |
| Power | 1.5W |
| Energy label | G |
| Electric potential | 2.5VA |
| Light source | LED |
| Burn time | 25000 |
| Light angle | 116° |
| Light direction | Ambient |
| Lighting reach | 1 m | 3.28 ft |
| Light color | Warm white |
| Color temperature | 2750K |
| Net luminous flux | 60lm |
| Luminous Efficacy | 40lm/W |
| IP-class | 55 |
| CRI | 95 |
