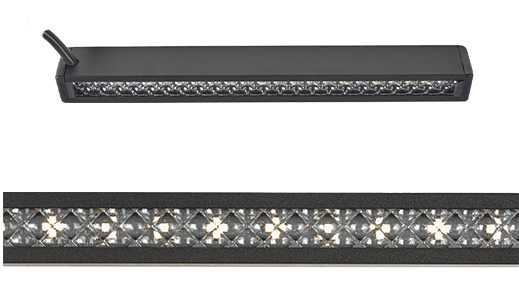

The EVO HYDE indirect line-lighting can be installed under stairs, duckboards, railings and (sitting) walls.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
The EVO HYDE indirect line-lighting can be installed under stairs, duckboards, railings and (sitting) walls. The lighting effect is unique and functional. Depending on the distance to be covered, you can use either the short EVO HYDE 180 DARK or the long EVO HYDE 550 DARK. You can also install several EVO HYDE fixtures in a row.
Go for premium quality with our unique EVO line. EVO products (EVO is short for EVOlution) have a modern, sleek design and are made of dark grey anodized aluminum. Thanks to the high-quality LED light source and lens with diamond-cut housing, EVO outdoor lights produce an attractive diffuse lighting effect with an excellent color rendition (CRI).
Installation Advice:
Install the EVO HYDE 180 under an overhang of at least 5 to 6 centimeters.
Installation Instructions:

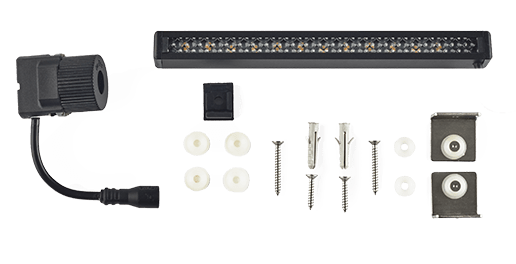

Evo Hyde 180, 12V installation guideMounting with the screws and plugs included.
| Length | 180 mm | 7.09 in |
| Width | 16 mm | 0.63 in |
| Height | 22 mm | 0.87 in |
| Housing Material | Aluminium |
| Dimmable | no |
| Voltage | 12V |
| Colours | Black |
| Application | Overhang, Pergola, Stair |
| Processing | Concrete, Natural stone, Wood |
| Power | 0.5W |
| Energy label | G |
| Electric potential | 0.6VA |
| Light source | LED |
| Burn time | 25000 |
| Light direction | Downwards |
| Lighting reach | 1.5 m | 4.92 ft |
| Light angle | 91° |
| Light color | Warm white |
| Color temperature | 2950K |
| Luminous Efficacy | 50lm/W |
| Net Luminous Flux | 25lm |
| IP-class | 55 |
| CRI | 95 |
