in-lite wall lighting

in-lite Evo Down Dark 100-230v light illuminating pathway.

Evo Down Dark 100-230V

The EVO DOWN DARK 100-230V wall fixture can only be connected to the power supply. This stylish wall light is perfect for creating ambiance and right on target for modern homes and straight outer walls. The EVO DOWN DARK 100-230V wall light is the perfect finishing touch for your EVO lighting plan. This wall light also looks great on its own on a straight and/or outer wall. Like the name says, this LED downlight produces a downward light and has a rather wide and diffuse for a unique lighting effect on your wall or housefront.

  • Produces a wide and attractive downward light
  • Designed for illuminating an outside wall
  • Connects directly to 230 volt

Go for premium quality with our unique EVO line. EVO products (EVO is short for EVOlution) have a modern, sleek design and are made of dark grey anodized aluminum. Thanks to the high-quality LED light source and lens with diamond-cut housing, EVO outdoor lights produce an attractive diffuse lighting effect with an excellent color rendition (CRI).

Installation Advice:

An EVO DOWN 100-230V every 2 to 2½ meters at a height of 1.6 to 1.8 meters

 Installation Instructions:

PDF Image icon Evo Down Dark, 100-230V installation guide

The EVO DOWN DARK 100-230V wall fixture can only be connected to the power supply (100-230V). Follow the instructions in the manual. Install using the screws and plugs provided. The wall light can also be connected to a wall socket using the EVO WALL MOUNT DARK 100-230V (available separately). *EVO DOWN DARK 100-230V may only be installed by a certified electrician

Available Colours:

Black

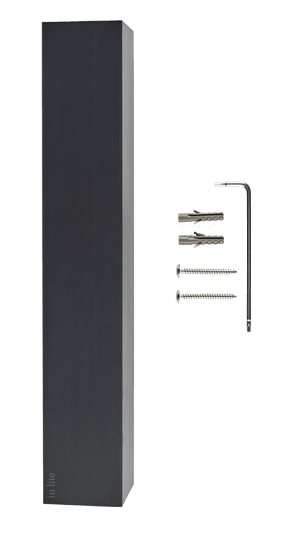

Evo Down dark light, 100-230v, package contents
Included, In the Box:
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench

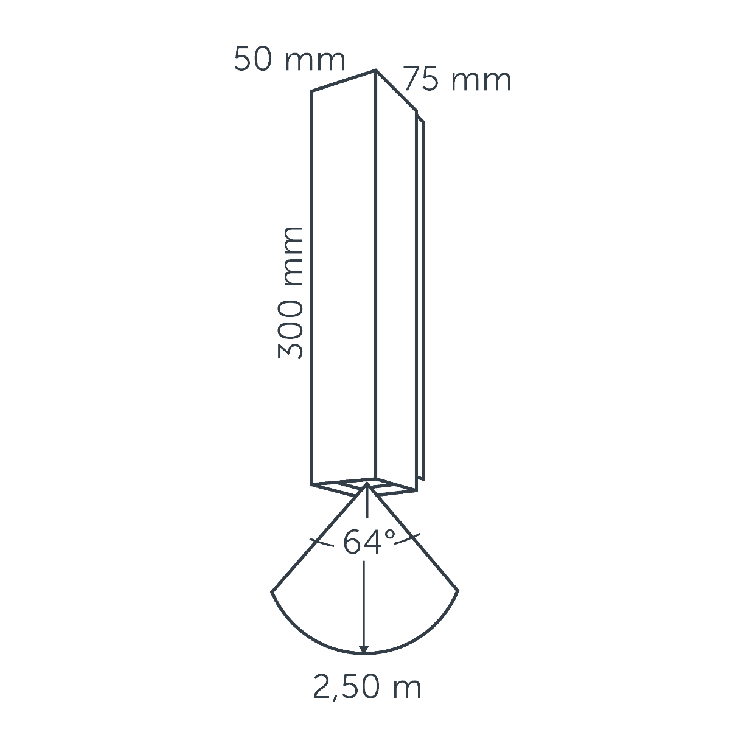

diagram of the Evo Down Dark 100-230v light's projection

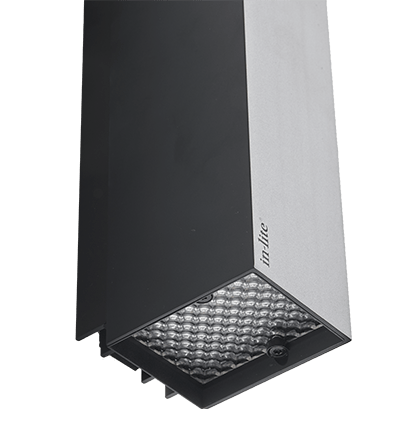

Evo Down light in showing lens

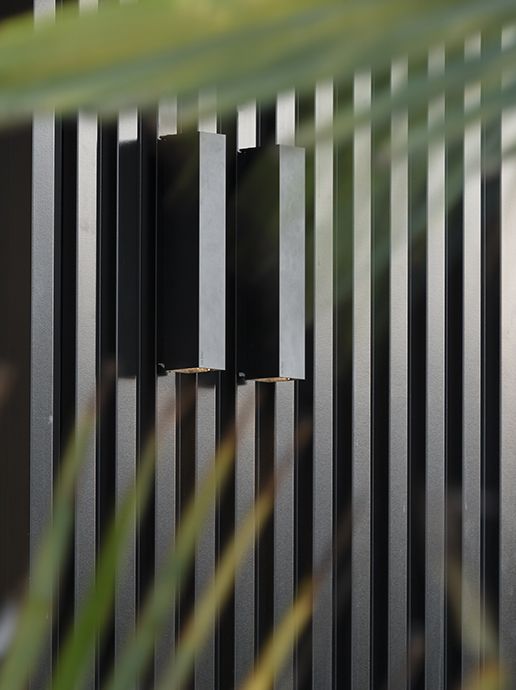

Evo Down light on a fence

Specifications

Length 75 mm | 2.95 in
Width 50 mm | 1.97 in
Height 300 mm | 11.81 in
Housing Material Aluminium
Dimmable no
Voltage 120V
Colours Black
Application Roof, House
Power 4.5W
Energy label G
Electric potential 11.5VA
Light source LED
Burn time 25000
Light direction Downwards
Lighting reach 2.5 m | 8.2 ft
Light angle 64°
Light color Warm white
Color temperature 3000K
Luminous Efficacy 24lm/W
Net Luminous Flux 106lm
IP-class 55
CRI 92
