in-lite wall lighting

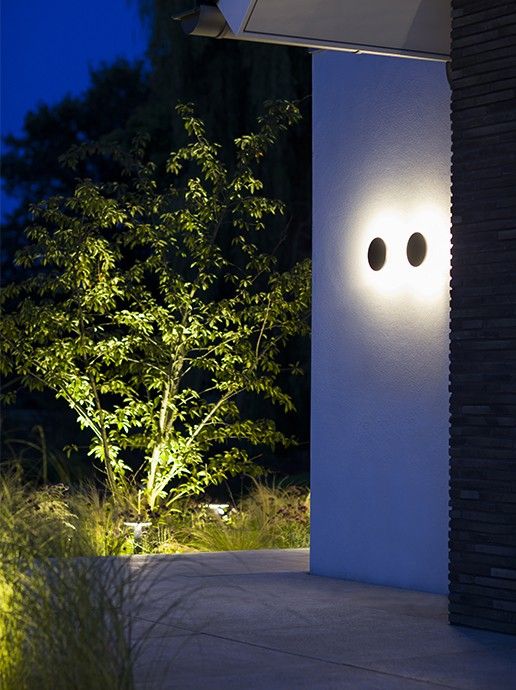

in-lite Disc Wall 100-230V light illuminating walkway.

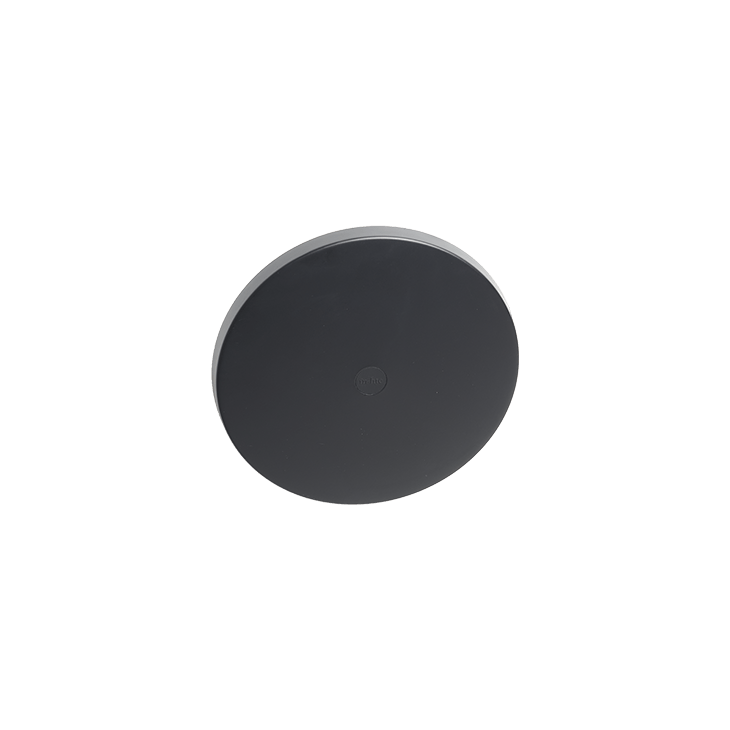

Disc Wall 100-230V

The DISC WALL 100-230V is an attractive wall light with a stylish and contemporary design. The fixture produces a diffuse lighting

  • Produces a diffuse lighting effect on all sides
  • Suitable for installation on a wall using a 230V power outlet
  • Dimmable using an LED dimmer (not included, available at select home improvement centers)

The DISC WALL 100-230V illuminates walls with a diffuse lighting effect on all sides. This fixture can be connected directly to a 100-230V power point using the 230V LED driver provided. It can also be made dimmable using an LED dimmer (not included). This product is multi-component and the components are packaged separately.

Installation Instructions:

PDF Image icon Disk Wall 100-230V light, installation guide

The DISC WALL casts light directly on the wall and, to a lesser degree, sideways, which is why the sides of the fixture head are not completely covered/closed, but enough to direct the light towards the wall. Since the sides are partly covered, the light source is not visible. This ensures that there is no glare. The DISC WALL (12V) can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.

Available Colours:

Black

Included, In the Box:
  • PART NO. 5: 1x DISC WALL 100-230V
  • 200 mm Fixture cable
  • PART NO. 5: 1x Driver
  • 3x PART NO. 5: 1x Cable connector
  • PART NO. 5: 4x Screw
  • PART NO. 4: 1x DISC BASE
  • 2x PART NO. 4: 2x Screw
  • PART NO.4: 2x Nylon plug
  • PART NO. 4: Torx wrench
Cubid 12V light in White

Specifications

Diameter 200 mm | 7.87 in
Height 36 mm | 1.42 in
Housing Material Aluminium FCBV
Dimmable yes
Voltage 12V
Colours Black
Application Overhang, Pergola
Power 4,5W
Energy label G
Electric potential 4,7VA
Light source LED
Burn time 25000
Light direction Ambient
Lighting reach 3 m | 9.84 ft
Light color Warm white
Color temperature 2900K
Luminous Efficacy 55lm/W
Net Luminous Flux 246lm
IP-class 55
CRI 98
