in-lite wall lighting

Ace Up-Down 12 V lighting deck

Ace Up-Down 12V

The ACE UP-DOWN WHITE wall fixture provides a focused beam of light both upwards and downwards.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable.

  • Produces a focused upward and downward light
  • Designed for illuminating a fence or wall
  • Lighting effect can be adjusted with several accessories

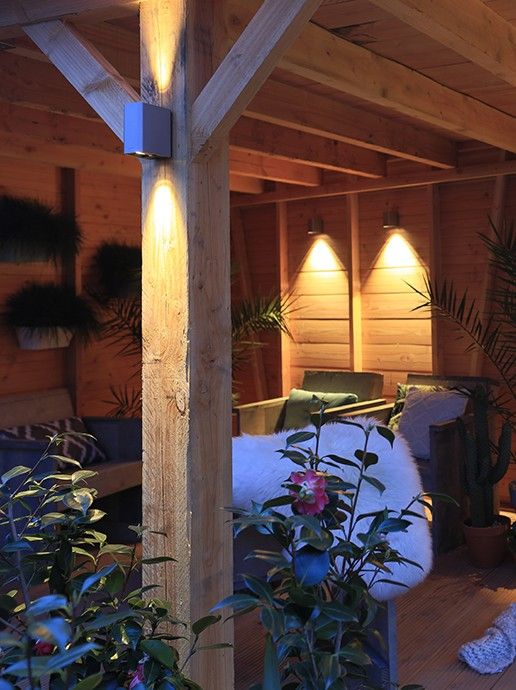

The ACE UP-DOWN wall fixture provides a focused beam of light both upwards and downwards. The fixture is suitable for use on a fence or wall. The two light sources lie deep within the fixture to ensure the light is not blinding. Do you prefer a narrower beam or a softer light? The separately available ACE accessories allow you to personalize the light bundles from the ACE fixtures to suit your taste and situation.

Installation Instructions:

PDF Image icon Ace -Up Down Light 12V installation guide

Mount using the included screws and plugs.

Available Colours:

White, Rosé Silver, Dark Grey, Flate Grey & Corten

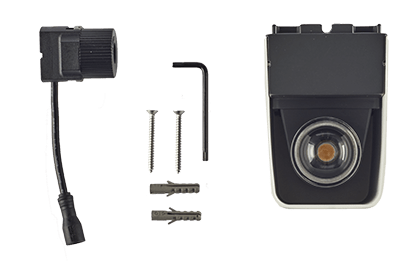

Ace up-down 12v package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench

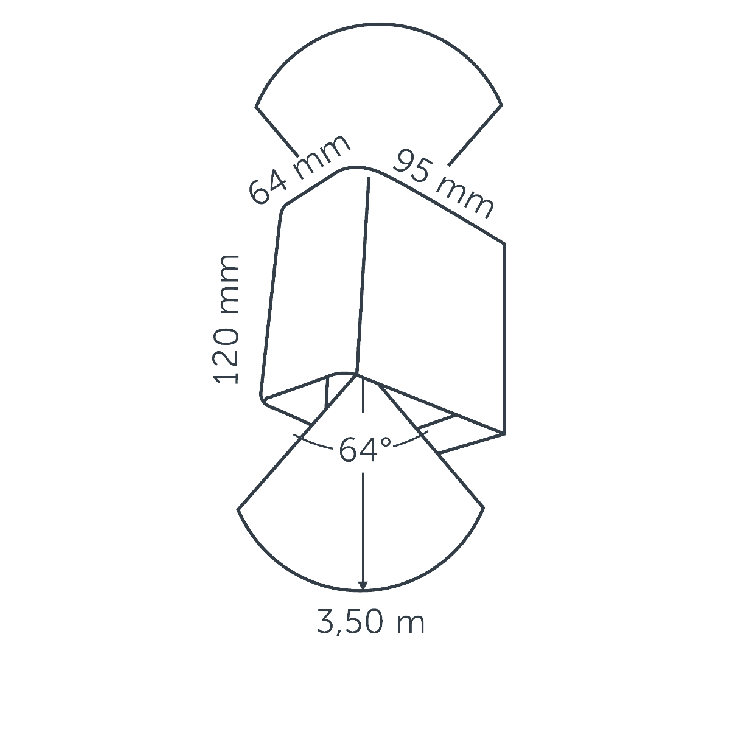

diagram of the Ace up-down light projection

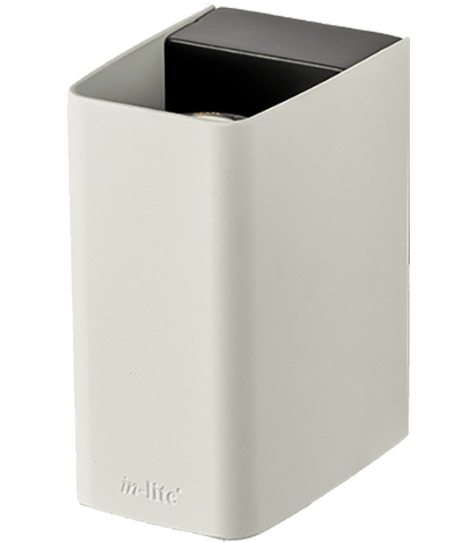

Ace up-down light in White

white

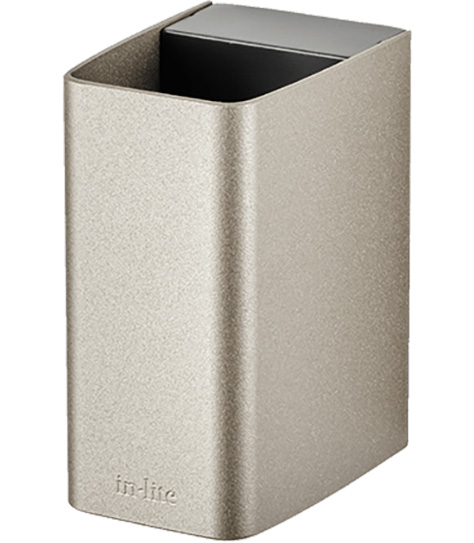

Ace up-down light in Rose Silver

Rosé Silver

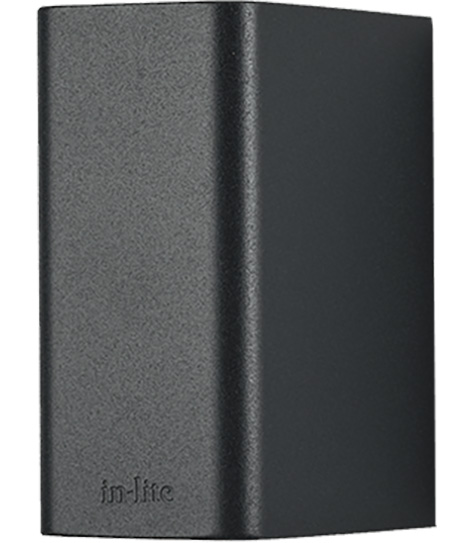

Ace up-down light in Dark Grey

Dark Grey

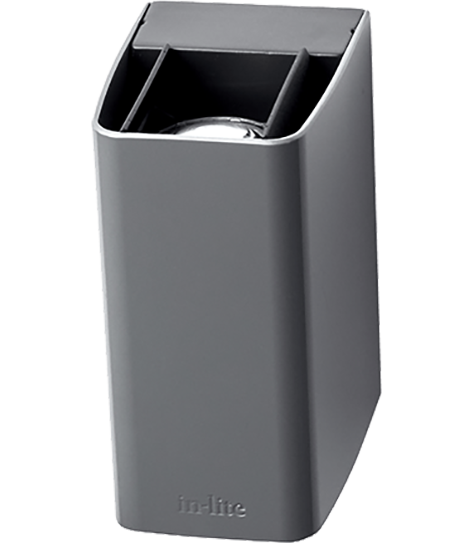

Ace up-down light in Flat Grey

Flate Grey

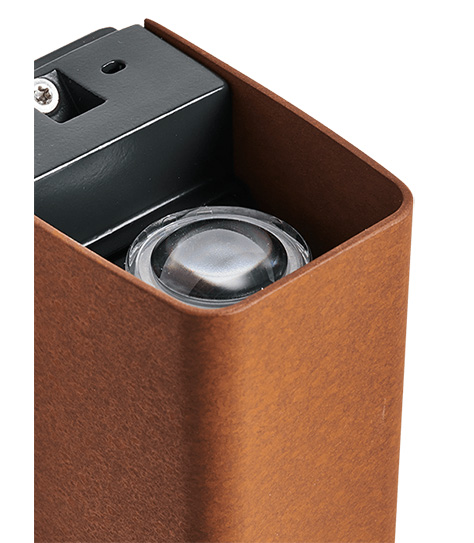

Ace up-down light in Corten

Corten

Specifications

Length 95 mm | 3.74 in
Width 64 mm | 2.52 in
Height 120 mm | 4.72 in
Housing Material Aluminum
Dimmable No
Voltage 12V
Colours White, Rosé Silver, Dark Grey, Flate Grey, Corten
Application Schutting, Roof, House, Overhang, Pergola
Power 6.5W
Energy label G
Electric potential 10.30VA
Light source LED
Burn time 25000
Light angle 64°
Light direction Downwards and Upwards
Lighting reach 3.5 m | 11.48 ft
Light color Warm white
Color temperature 3000K
Net luminous flux 355lm
IP-class 55
CRI 92
