The ACE UP-DOWN 100-230V DARK wall light may only be connected to line voltage.

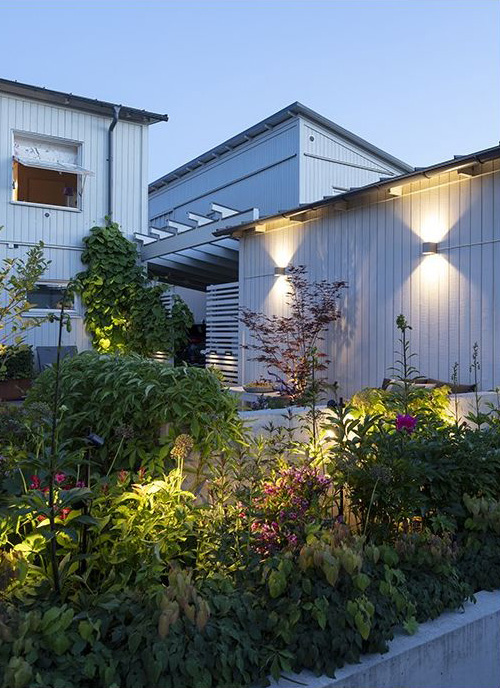

The ACE UP-DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light both upwards and downwards. The width of the light bundles provided by the ACE UP-DOWN can be adjusted using the separately available SHUTTER 1.
Installation Advice:
An ACE UP-DOWN 100-230V every 2 to 2.5 metres, at a height of 1.4 to 1.8 metres.
Installation Instructions:
Ace Up-Down Light 100-230V installation guideThe ACE UP-DOWN 100-230V wall fixture may only be connected to a 230V power supply. Follow the instructions in the manual and the special installation leaflet*. *ACE UP-DOWN 100-230V may only be installed by a licensed electrical contractor.
Available Colours:
White, Rosé Silver, Dark Grey, Flate Grey & Corten

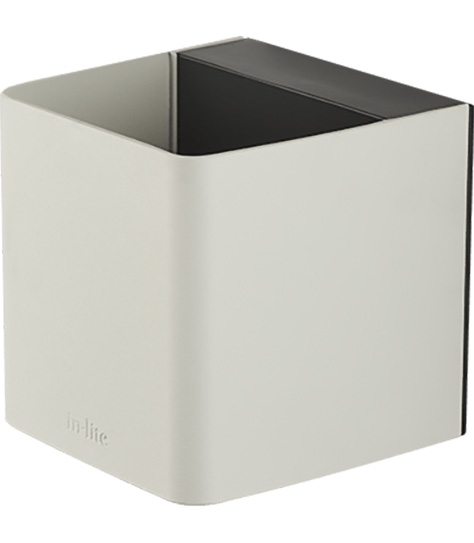

white

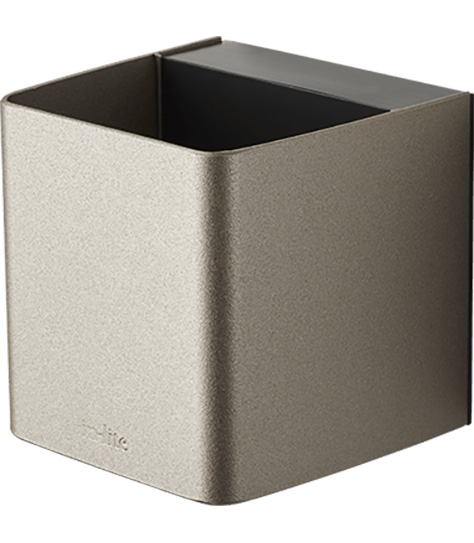

Rosé Silver
Dark Grey
Flate Grey
Corten

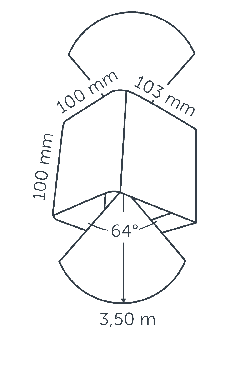

| Length | 103 mm | 4.06 in |
| Width | 100 mm | 3.94 in |
| Height | 100 mm | 3.94 in |
| Housing Material | Aluminum |
| Dimmable | Yes |
| Voltage | 120Vs |
| Colours | White, Rosé Silver, Dark Grey, Flate Grey, Corten |
| Application | Schutting, Roof, House |
| Power | 8.5W |
| Energy label | G |
| Electric potential | 20VA |
| Light source | LED |
| Burn time | 25000 |
| Light angle | 64° |
| Light direction | Downwards and Upwards |
| Lighting reach | 3.5 m | 11.48 ft |
| Light color | Warm white |
| Color temperature | 3000K |
| Net luminous flux | 346lm |
| IP-class | 55 |
| CRI | 92 |
