in-lite wall lighting

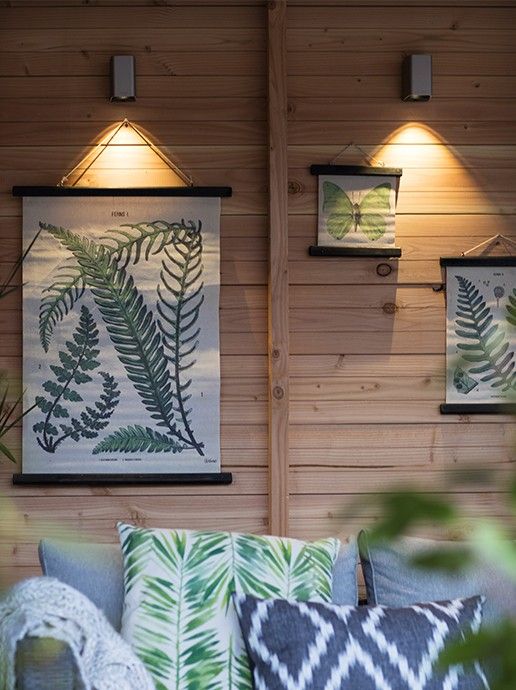

Ace Down 12 V light lit above wall hangings

Ace Down Light 12 V

The ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable

  • Produces a focused downward light
  • Designed for illuminating a fence or wall
  • Lighting effect can be adjusted with several accessories

The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

Installation Advice:

An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters.

Installation Instructions:

PDF Image icon Ace Down Light 12V installation guide

Mount using the included screws and plugs.

Available Colours:

White, Rosé Silver, Dark Grey, Flate Grey & Corten

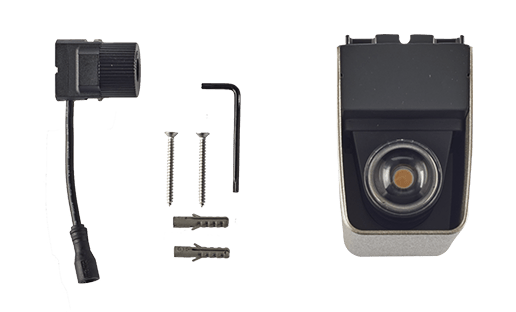

in-lite Ace down light included in the box components
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench
diagram of the Ace down light projection

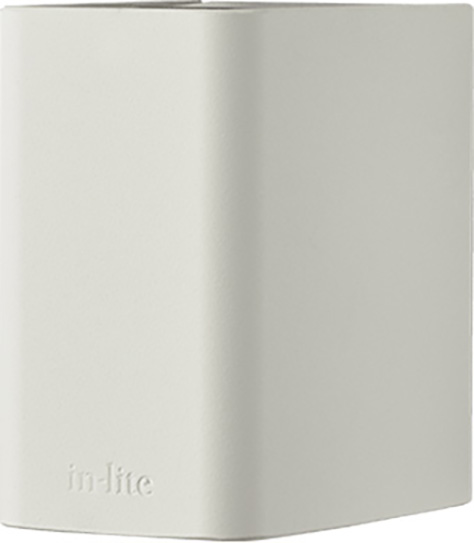

Ace down light in White

white

Ace down light in Rose Silver

Rosé Silver

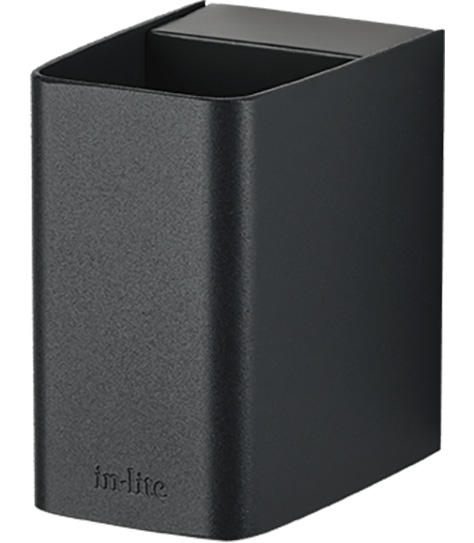

Ace down light in Dark Grey

Dark Grey

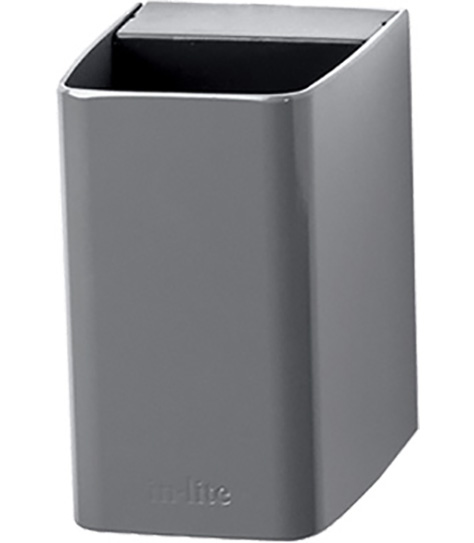

Ace down light in Flat Grey

Flate Grey

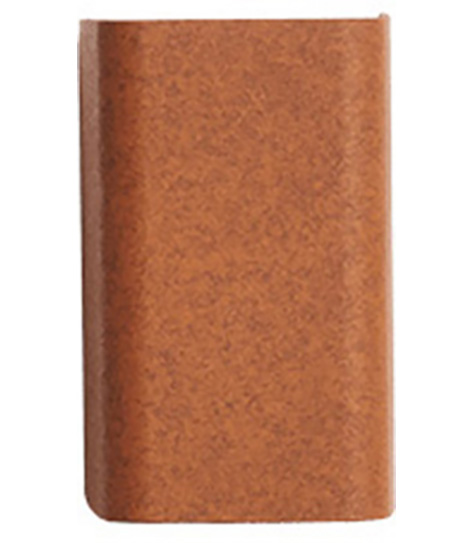

Ace down light in Corten

Corten

Specifications

Length 95 mm | 3.74 in
Width 64 mm | 2.52 in
Height 100 mm | 3.94 in
Housing Material Aluminum
Voltage 12Vs
Colours White, Rosé Silver, Dark Grey, Flate Grey, Corten
Application Path, Schutting, Driveway, Deck
Power 3W
Energy label G
Electric potential 5,30VA
Light source LED
Burn time 25000
Light type Direct
Light angle 63°
Light direction Downwards
Lighting reach 3.5 m | 11.48 ft
Light color Warm white
Color temperature 3000K
Net luminous flux 58lm/W
IP-class 55
CRI 91
