In-Lite | In-Lite Wall Lighting

More Lighting

in-lite wall lighting

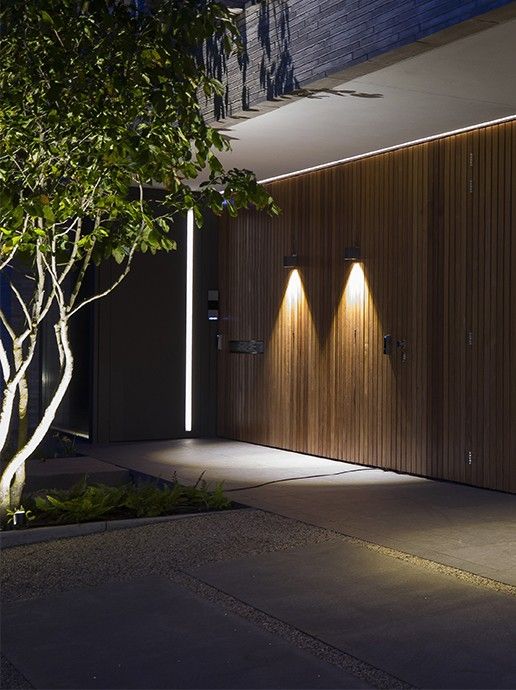

Ace Down 100-230 V light lit above wall hangings

Ace Down Light 100-230V

The ACE DOWN 100-230V wall light emits a targeted beam of light and can be installed on a wall or fence.

  • Produces a focused downward light
  • Designed for illuminating a fence or wall
  • Connects directly to 230 volt

The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

Installation Advice:

An ACE DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

Installation Instructions:

PDF Image icon Ace Down Light 100-230V installation guide

The ACE DOWN 100-230V may only be connected to the regular power supply. It comes with a SHUTTER 2 and dimmable LED driver for 100-230V LED dimmers (available at higher end hardware stores. Contact an electrician for installation).

Available Colours:

White, Rosé Silver, Dark Grey, Flate Grey & Corten

trex riser light with cable in Charcoal Black, Classic White, Bronze

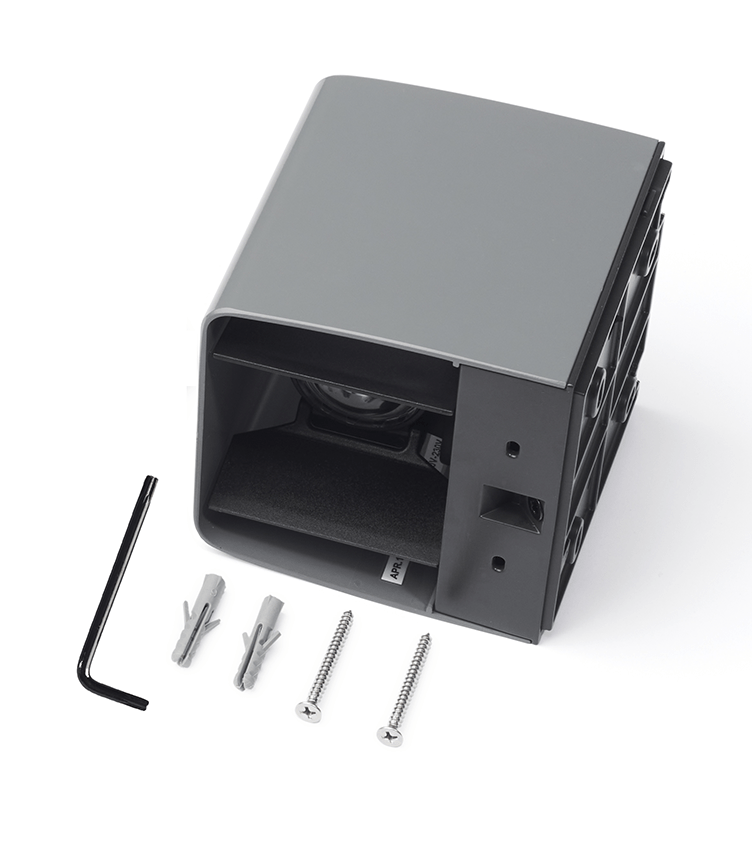

Included, In the Box:
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench
diagram of the Ace down light projection
Ace down light in White

white

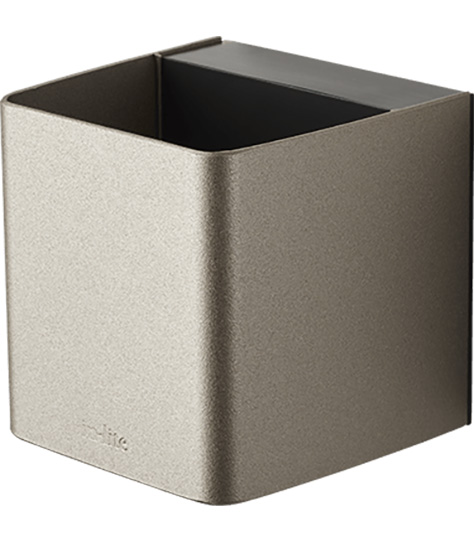

Ace down light in Rose Silver

Rosé Silver

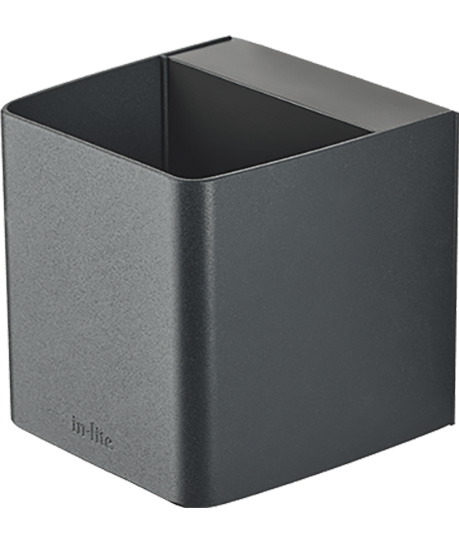

Ace down light in Dark Grey

Dark Grey

Ace down light in Flat Grey

Flate Grey

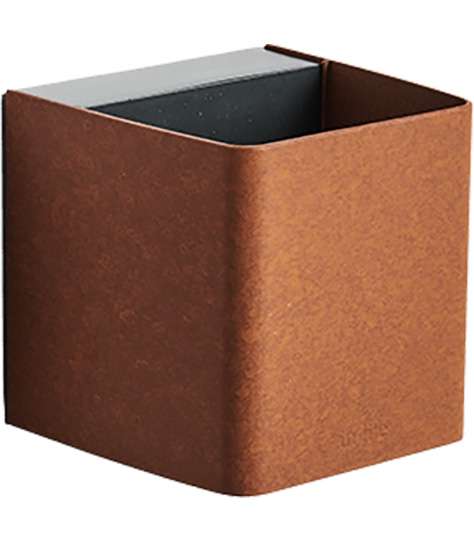

Ace down light in Corten

Corten

Specifications

Length 103 mm | 4.06 in
Width 100 mm | 3.94 in
Height 100 mm | 3.94 in
Housing Material Aluminum
Dimmable Yes
Voltage 120Vs
Colours White, Rosé Silver, Dark Grey, Flate Grey, Corten
Application Roof, House, Overhang
Power 4.5W
Energy label G
Electric potential 11.5VA
Light source LED
Burn time 25000
Light angle 64°
Light direction Downwards
Lighting reach 3.5 m | 11.48 ft
Light color Warm white
Color temperature 3000K
Net luminous flux 191lm
IP-class 55
CRI 92
