Hub-100 120V

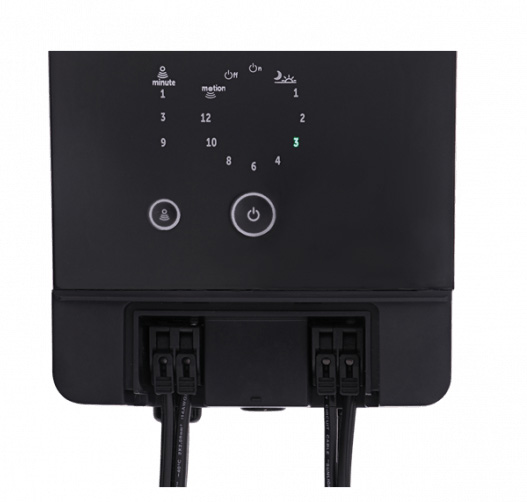

A high-quality transformer with touchscreen operation, equipped with two jointly controllable lines.

Switching by means of supplied light sensor combined with a timer Equipped with light signal to detect and prevent overloading or faulty installation. The motion detector MOVE can be connected as a separately available accessory. The lighting automatically switches on either 1, 3 or 9 minutes upon motion detection.

• Simple touchscreen operation
• 2 cable outlets and a light sensor
• Expandable with motion detector
• Manual On/Off

With the HUB series you choose an innovative and innovative product, made of high-quality materials with optimal safety. The HUB PROTECTOR extends the life of the HUB. We emphasize that all HUBs should always be mounted covered in a place free of precipitation. Install free of precipitation. If it is not possible to install the HUB indoors or under a roof, we recommend installing the HUB PROTECTOR.

Installation

Hub-100

Install vertically using the screws provided. The transformer can be mounted on a wall both inside and outside. When installed outside, the transformer must be at least 50 cm from the ground. See the manual for detailed instructions.

In-Lite offers a five-year warranty on all of our fixtures and transformers, provided that the installation instructions have been followed correctly.
