in-lite Spot lighting

Mini Scope spotlight installed lighting up backyard planter.

Mini Scope 12V - Outdoor spotlight - 3 metre light distribution

This small spotlight is delivered with a bracket and ground stake.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

  • Produces a wide focused light
  • Designed for illuminating low plants and trees up to 3 meters
  • Height adjustable with accessories

This fixture is suitable for mounting on a fence or in an overhang. Illuminate plants and shrubs on borders, walkways and gardens.

Installation advice: Place the fixtures so they do not glare.

Installation Instructions:

PDF Image icon  Mini Scope 12V spot light, installation guide

Install on a hard surface using the bracket or in soft ground with the included ground stake.

Also Available:

MINI SCOPE PRO PACK: Contains; box of 12 MINI-SCOPES

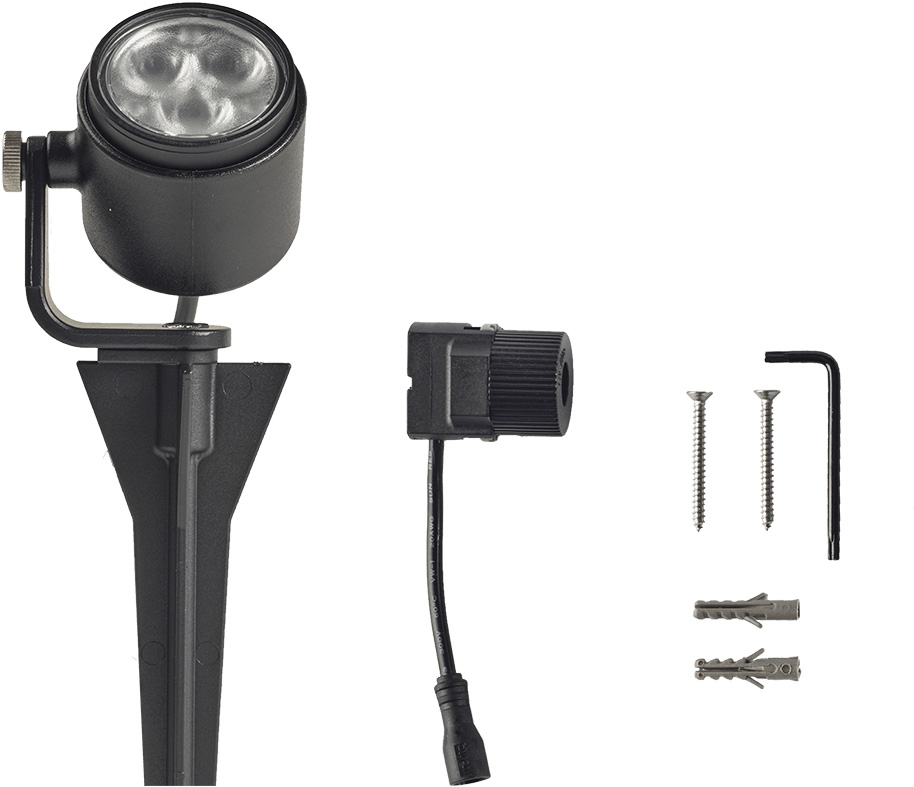

Mini Scope 12v spot light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Ground pin
  • 1x Nylon plug
  • 1x Screw
  • 1x Torx wrench
  • 1x Cable plug

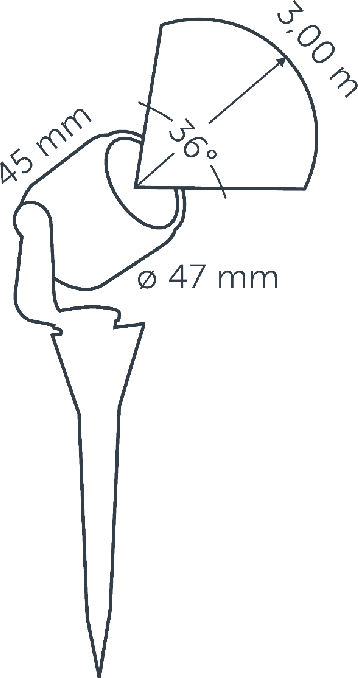

diagram of the mini scope spot light projection

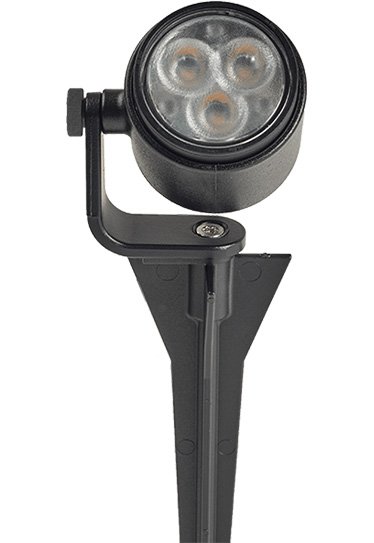

Mini Scope 12V forward faceing

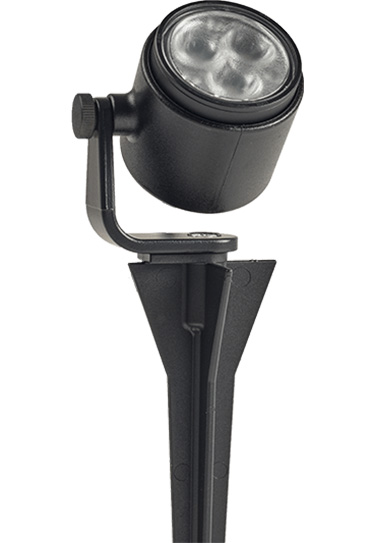

Mini Scope 12V profile

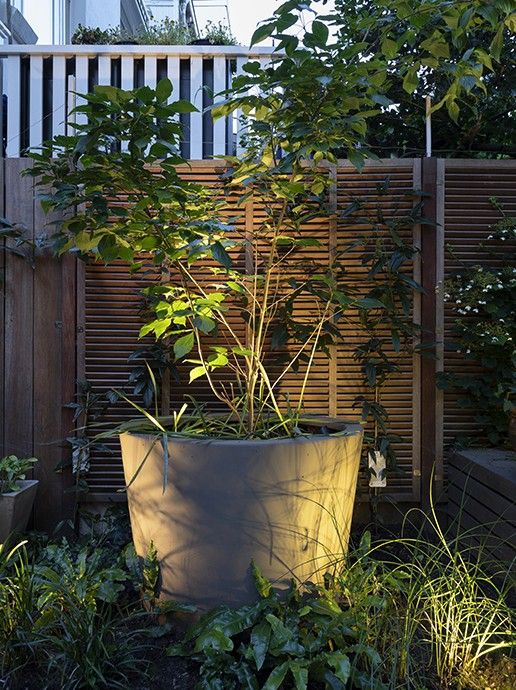

mini Scope 12V installed in a flower pot

Specifications

Height 45 mm | 1.77 in
Diameter 47 mm | 1.85 in
Housing Polycarbonate
Ring/Cover plate Aluminum
Voltage 12 V
Application Tree, Border, Hedge, Deck
Power 1 W
Energy label G
Electric potential 2 VA
Light source LED
Burn time 25000
Light angle 36°
Light direction Adjustable
Lighting reach 3 m | 9.84 ft
Light color Warm white
Color temperature 2900 K
Net luminous flux 64 lm
Luminous Efficacy 64 lm/W
IP-class 67
CRI 93
