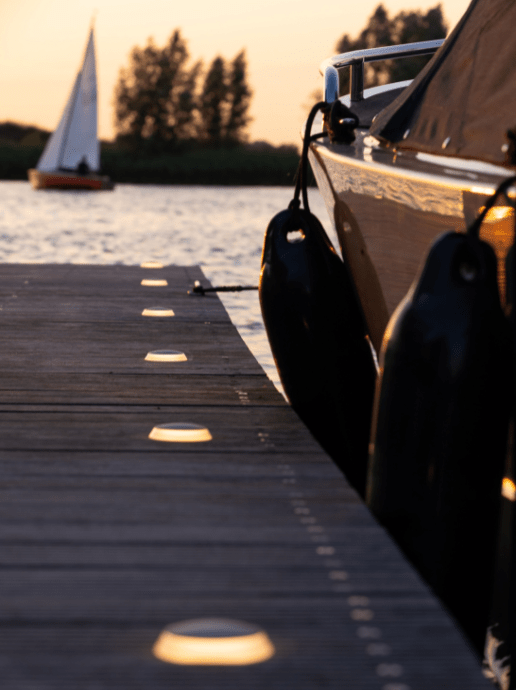

The PUCK 12V ground light is perfect as indication lighting along your driveway, walkway, deck boards or jetties. Since the light radiates from the side, it is visible from a long distance, but without being glaring, making the PUCK also highly suitable for creating ambiance.
The PUCK is made of anodized aluminum in warm silver. The PUCK series is available in two different formats and colors: PUCK has a diameter of 60 mm, while PUCK 22 has a diameter of 22 mm

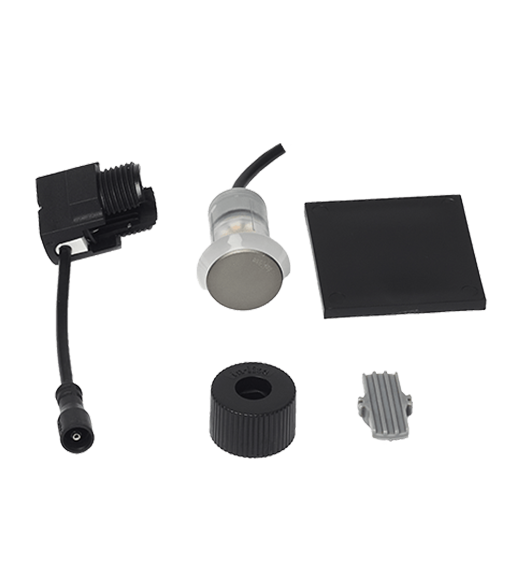

The EASY-LOCK is supplied as standard with this fixture. The cable length is 60 cm.
Installation Notes/Instructions:
Puck Installation ManualA PUCK every 1½ to 2 meters
Install in wood or stone (cooled diamond drill) with a diameter of 22 mm. Install the fixture only in a straight drilled hole in the right size to ensure that the spot is properly clamped without damaging the house.

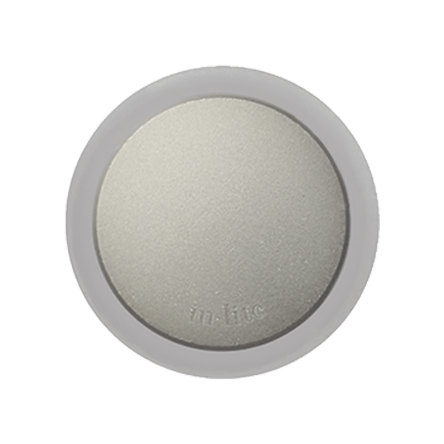

pearl grey
pearl grey

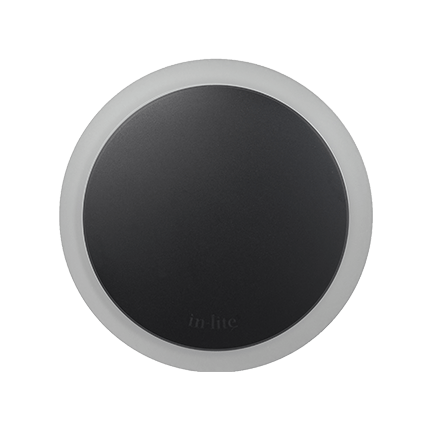

Black
| Part Number | 10104165 (black) 10104160 (pearl Grey) |
| Application | Deck, Driveway, Fence, Path, Stairs |
| Installation | Concrete, Grass, Gravel, Natural stone, Wood |
| Diameter | 86 mm | 3.39 in |
| Colour | Black and Pearl Grey |
| CRI | 96 |
| Voltage | 12 V |
| Power | 1.5 W |
| Energy label | G |
| Light Type | Diffuse |
| Light direction | all around |
| Light color | warm white |
| Color temperature | 2900 K |
| IP-class | 67 |
| Net luminous flux | 3 lm |
| Efficiency | 5 lm/W |
| Luminous intensity [Cd] | 0.45 |
| VA Value | 2.5 |
