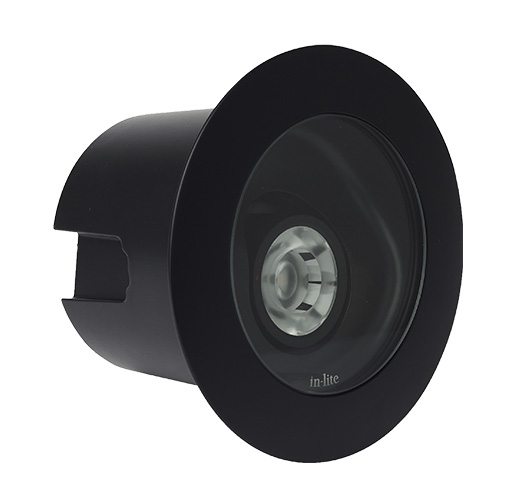

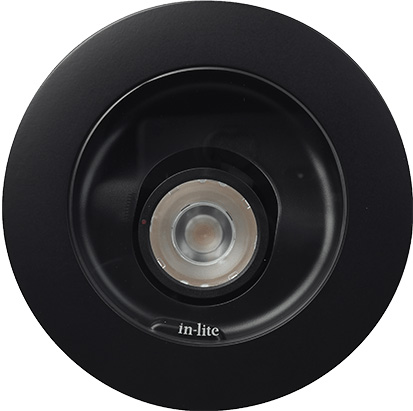

Big Nero Narrow 12V

The BIG NERO NARROW LED ground light is the perfect fixture for illuminating really tall trees or walls from gravel, grass, pavement or wood.

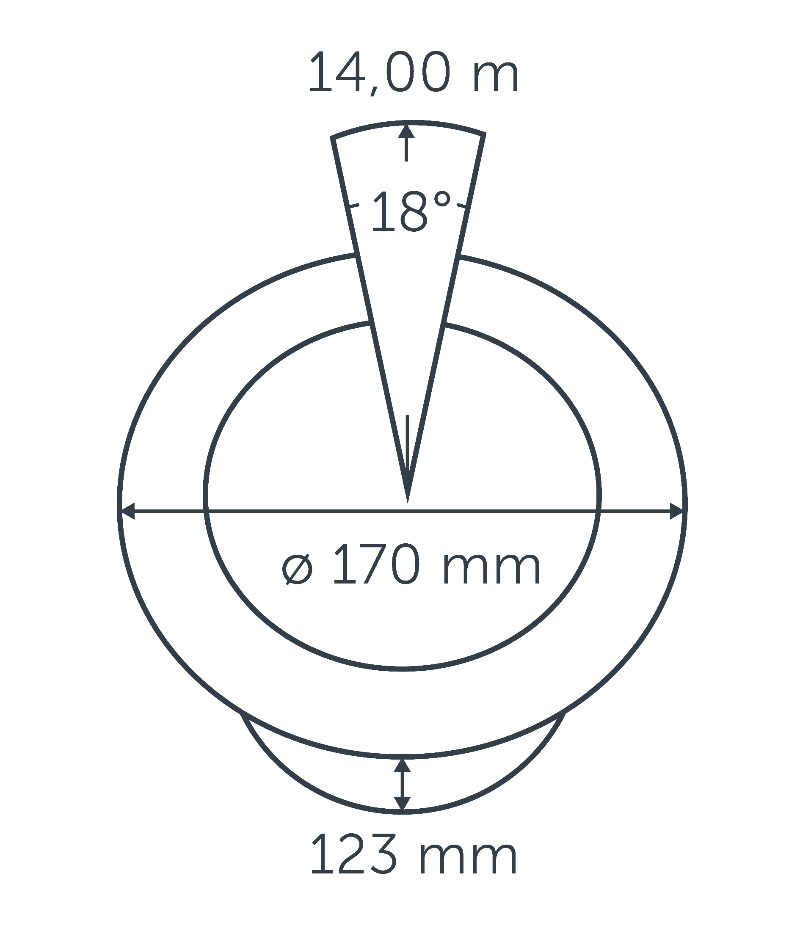

With its new single-chip LED and world-leading LEDiL® lens, the BIG NERO NARROW 12V Dark has a light distribution of at least 14 meters, with a light angle of 18 degrees.

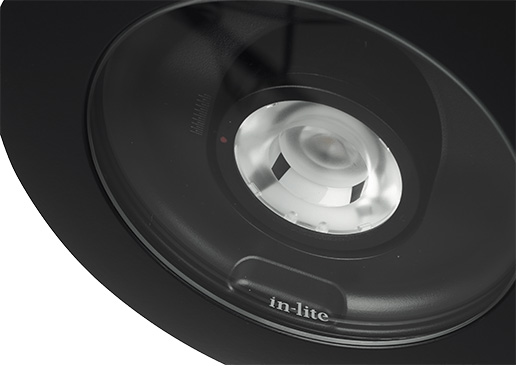

The BIG NERO NARROW features the new in-lite Motion technology. This technology makes it extremely easy to adjust the light source without having to open the fixture. Simply hold the magnet provided up to the in-light logo and the light source will tilt automatically.

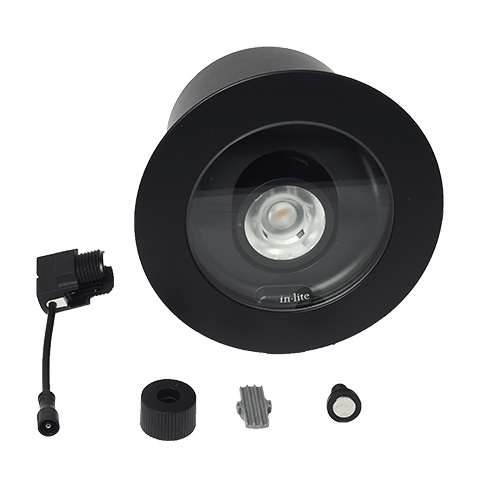

The EASY-LOCK is supplied as standard with this fixture. The cable length is 60 cm.

• Produces a strong and narrow, focused light
• Designed for illuminating tall elements up to 14 meters
• Fitted with in-lite motion

Installation Notes/Instructions:

Nero Installation Manual

The BIG NERO NARROW can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole. For anyone who will incorporate the new BIG NERO (NARROW) in a lighting plan, the following applies: always use the 10/2 cable, use the maximum cable length of 40 meters and do not exceed the maximum number of luminaires. (HUB-50 up to four BIG NERO (NARROW) fixtures and HUB-100 up to seven and SMART HUB-150 up to eleven, up to seven in a line.)

If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100).
