in-lite recessed lighting

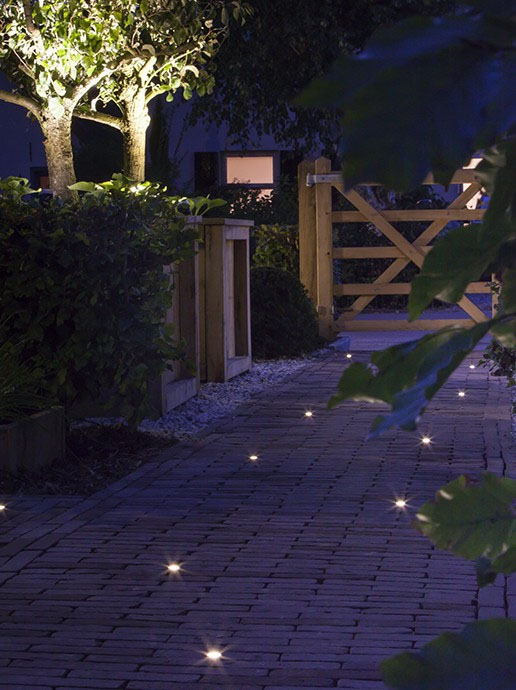

hyve 22 light installed in interlock walkway

Hyve 22

This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.

The EASY-LOCK is supplied as standard with this fixture. The cable length is 60 cm.

  • Produces an eye-catching yet attractive lighting effect
  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over

Installation Notes/Instructions:

PDF Image iconHyve 22 Installation Manual

A HYVE 22 every 1½ to 2 meters

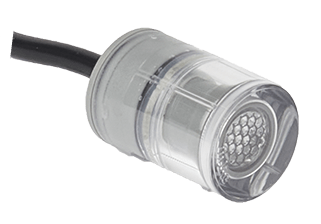

Hyve 22, front view
Hyve 22 lens detail

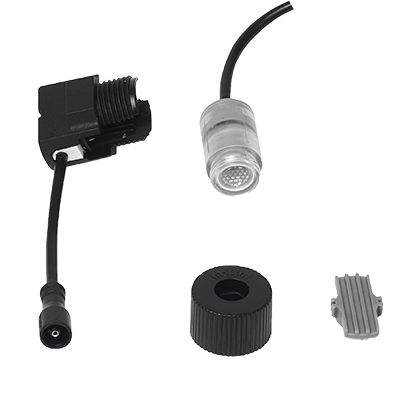

Hyve 22, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable

Specifications

Part Number 10104050
Application Concrete, Grass, Gravel, Natural stone, Wood
Installation Deck, Driveway, Path, Stairs
Mounting Depth 50 mm | 1.9685 in
Diameter 22 mm | 0.8661 in
Height 32 mm | 1.2598 in
Colour stainless steel
Housing -
Voltage 12 V
Power 0.2 W
Energy label G
Light Type Diffuse
Light angle -
Light direction Upward adjustment
Lighting reach -
Light color warm white
Color temperature 3100
Net luminous flux 2 lm
Efficiency 10 lm/W
Luminous intensity [Cd] 2.2
VA Value 0.2
