in-lite recessed lighting

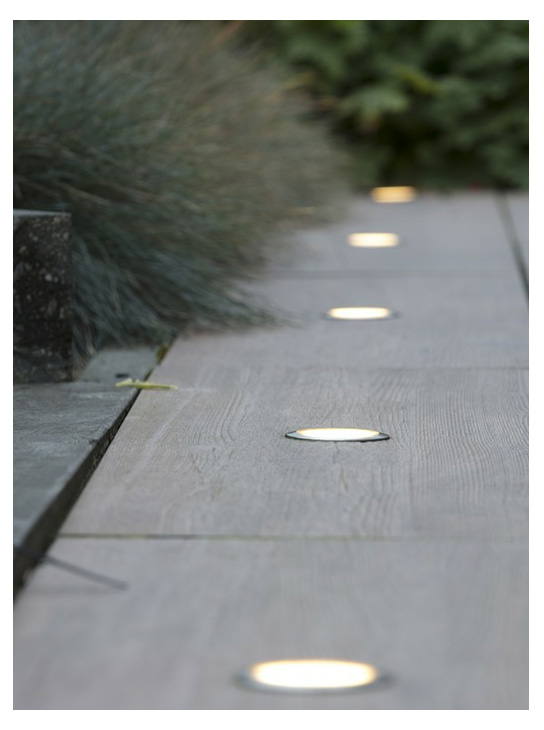

hyve light illuminating walkway

Hyve 12V

The Hyve 12v is a round fixture finished with an elegant stainless steel ring. The honeycomb structured lens produces a pleasant, warm lighting effect. Various accessories are available for the HYVE.

The EASY-LOCK is supplied as standard with this fixture. The cable length is 60 cm.

  • Produces an eye-catching yet attractive lighting effect
  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over

Installation Notes/Instructions:

PDF Image iconHyve Installation Manual

A HYVE every 1½ to 2 meters.

This ground light is installed in a 60 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.

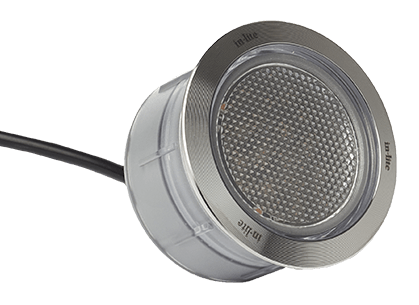

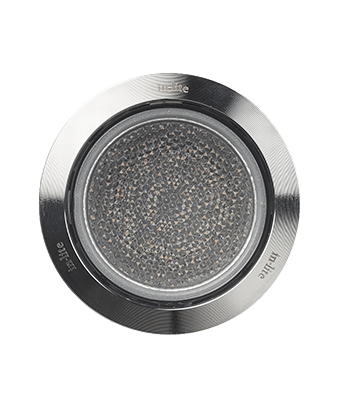

Hyve, front view
Hyve lens detail

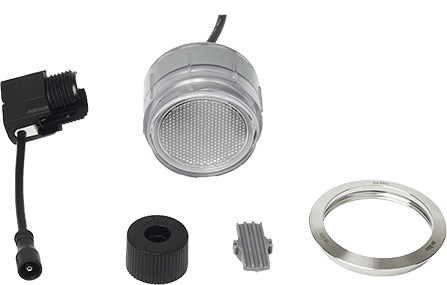

Hyve, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Baffle plate
  • Ring 68
Hyve projection diagram

Specifications

Part Number 10103900
Application Facade, Hedge, House, Tree
Installation Deck, Driveway, Path, Stairs
Mounting Depth 55 mm | 2.1654 in
Diameter 68 mm | 2.6772 in
Height 40 mm | 1.5748 in
Colour stainless steel
Housing -
Voltage 12 V
Power .8 W
Energy label G
Light Type Diffuse
Light angle 74°
Light direction Upward adjustment
Lighting reach 1 m | 3.28 ft
Light color warm white
Color temperature 3000
Net luminous flux 17 lm
Efficiency 21 lm/W
Luminous intensity [Cd] 11.2
VA Value 0.8
