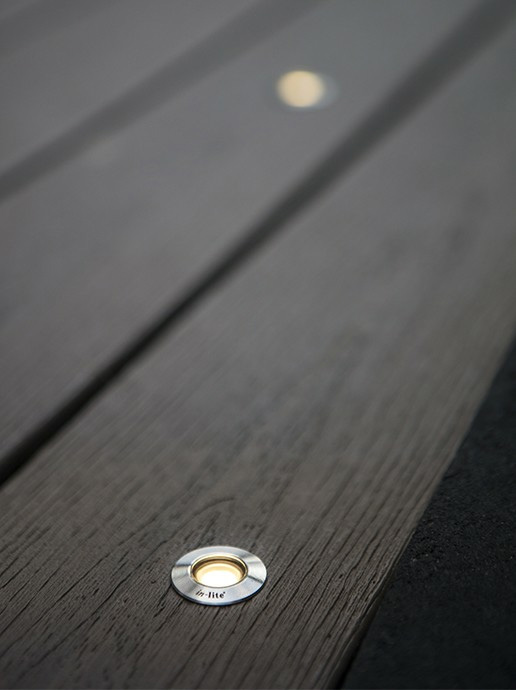

hyve rvs light installed in deck board

Hyve 22 RVS

This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.

The EASY-LOCK is supplied as standard with this fixture. The cable length is 60 cm.

  • Produces an eye-catching yet attractive lighting effect
  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over

Installation Notes/Instructions:

PDF Image iconHyve 22 RVS Installation Manual

A HYVE 22 RVS every 1½ to 2 meters

Hyve RS, front view

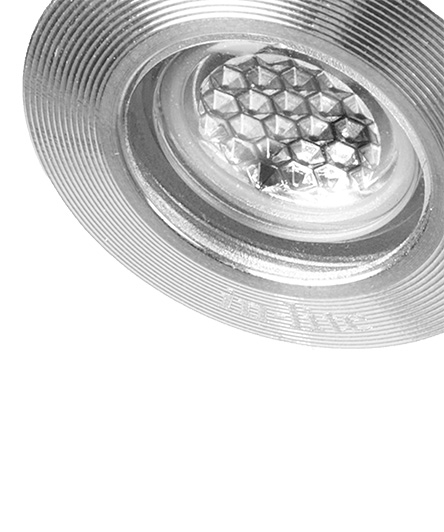

Hyve RVS lens detail

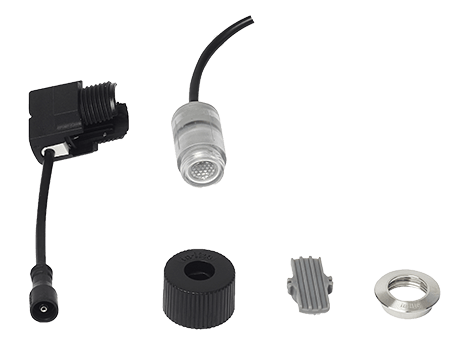

Hyve, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable

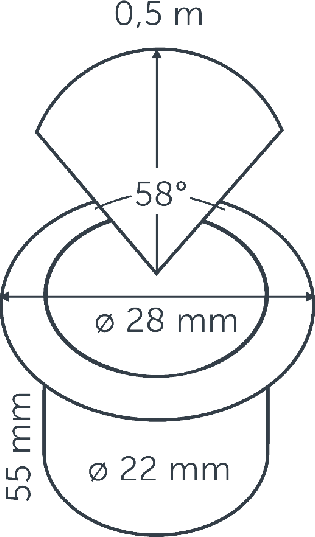

Hyve projection diagram

Specifications

Part Number 10104000
Application Concrete, Grass, Gravel, Natural stone, Wood
Installation Deck, Driveway, Path, Stairs
Mounting Depth 55 mm | 2.1654 in
Diameter 28 mm | 1.1024 in
Height 37 mm | 1.4567 in
Colour stainless steel
Housing -
Voltage 12 V
Power .2 W
Energy label G
Light Type Diffuse
Light angle 58°
Light direction Upward adjustment
Lighting reach 0.5 m | 1.64 ft
Light color warm white
Color temperature 3000
Net luminous flux 2 lm
Efficiency 25 lm/W
Luminous intensity [Cd] 1.6
VA Value 0.2
