The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm. Tip: Think of an extension cable

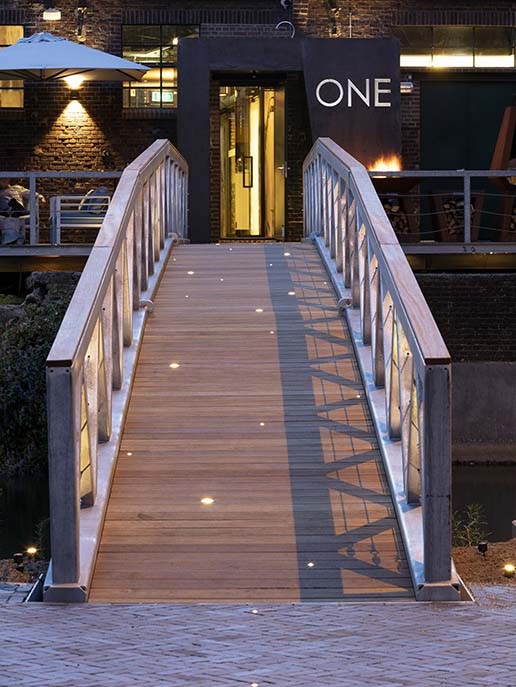

A FUSION 22 Black every 1½ to 2 meters
Installation Instructions:
This ground light is installed in a 22.4 mm diameter hole in stone (cooled diamond-tipped drill). When installing in wood, we recommend using the FUSION 22 stainless steel. A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
| Part Number | 10104190 |
| Application | Deck, Driveway, Path, Stairs |
| Mounting /Recessed Depth | 5 cm | 1.9685 in |
| Diameter | 2.8 cm | 1.1024 in |
| Height | 3.2cm | 1.2598 in |
| Colour | Black |
| Housing | - |
| Voltage | 12 V |
| Power | 0.2 W |
| Energy label | G |
| Light Type | Diffuse |
| Light angle | - |
| Light direction | Upward |
| Lighting reach | - |
| Light color | - |
| Color temperature | 2750 |
| Net luminous flux | 1 lm |
| Luminous Efficacy | 5 lm/W |
| Luminous intensity [Cd] | 0.6 |
| VA Value | 0.2 |
