in-lite recessed lighting

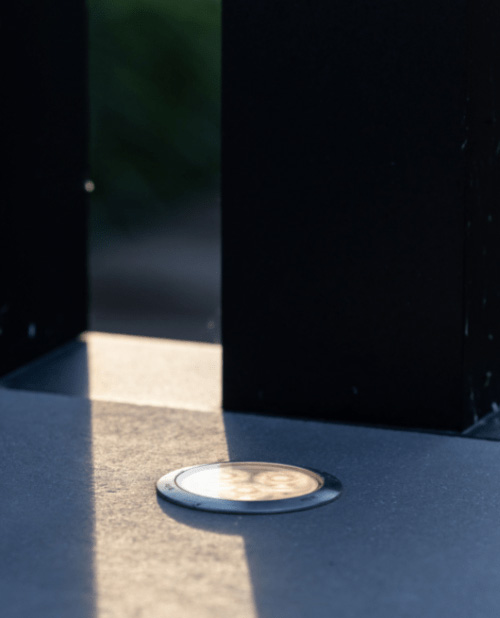

Flux light installed in concrete

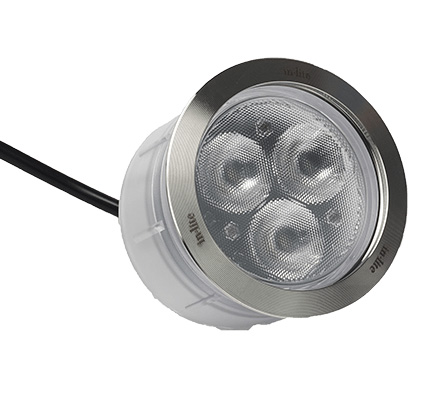

Flux 12V

The FLUX LED ground light is finished with an elegant stainless steel ring and provides a beam of Warm White light.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Hedge: A FLUX every 1 to 1½ meters

  • Produces a strong and focused light
  • Designed for illuminating tall elements up to 5 meters
  • Drive-over

Installation Instructions:

This ground light is installed in a 60 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.

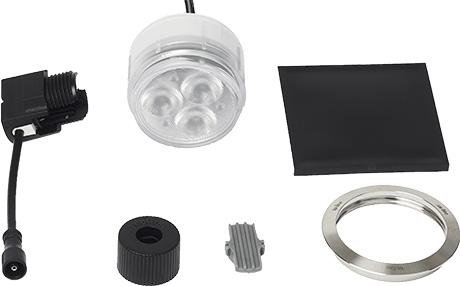

Flux, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Baffle plate
  • Ring 68

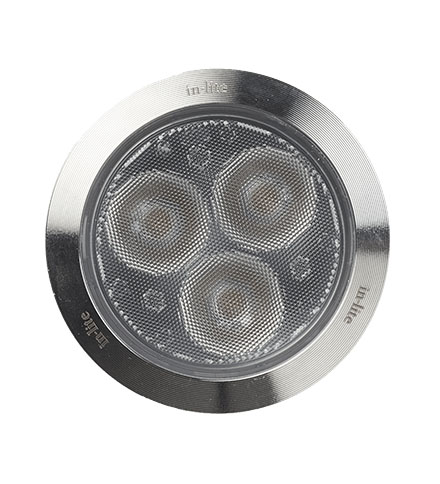

DB-LED front view

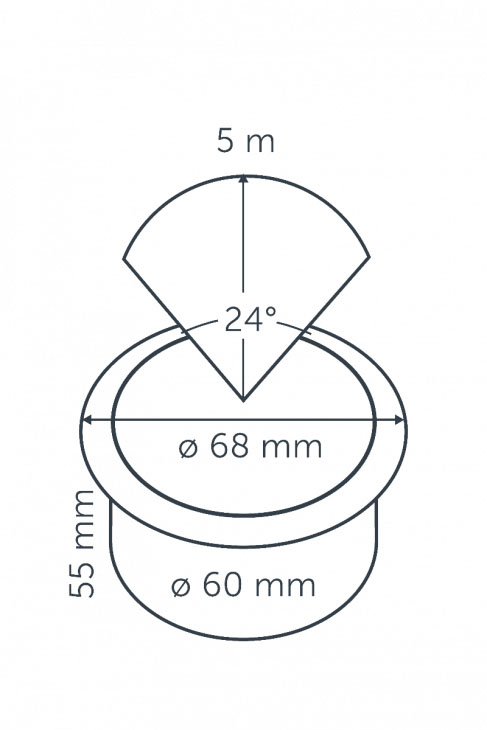

Flux projection diagram
DB-LED front view

Specifications

Part Number 10103201
Application Deck, Driveway, Facade, Hedge, Path, Stairs, Tree
Installation Concrete, Grass, Gravel, Natural stone, Wood
Mounting Depth 55 mm | 2.1654 in
Diameter 68 mm | 2.6772 in
Height 42mm | 1.6535 in
Colour stainless steel
Housing -
Voltage 12 V
Power 0.6 W
Energy label G
Light Type Accent
Light angle -
Light direction Up
Lighting reach -
Light color -
Color temperature 3000
Net luminous flux 99 lm
Efficiency 66 lm/W
Luminous intensity [Cd] 459
VA Value 2.5
