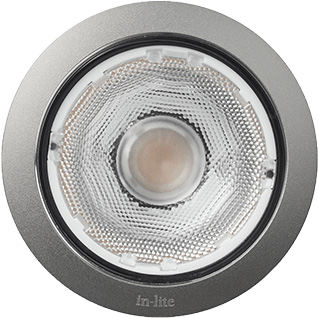

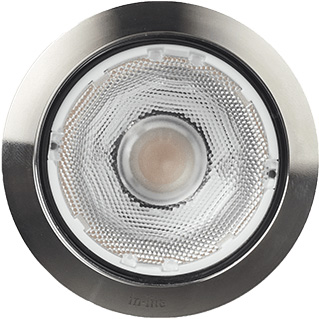

Big Flux

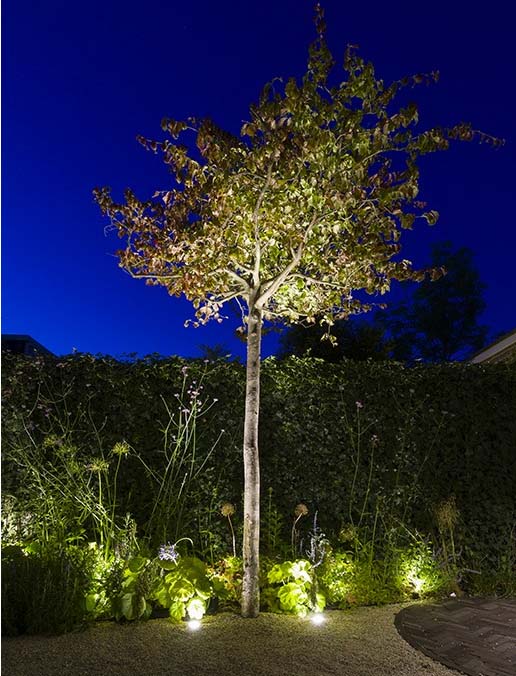

BIG FLUX in Pearl Grey or stainless steel, is the best choice for lighting tall multi-trunked trees incorporated into decking, for example, or for lighting wide facades from the pavement. BIG FLUX produces a lighting angle of 26 degrees and a lighting range of 7.5 meters high.

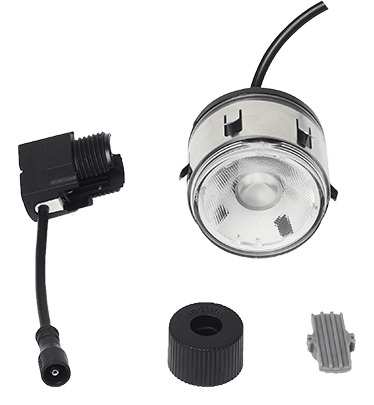

This fixture consists of BIG FLUX and RING 68 Pearl Grey. The ring is made of high quality anodized aluminum.

The EASY-LOCK is supplied as standard with this fixture. The cable length on this luminaire is 60 cm.

Install a BIG FLUX every 2 to 2.5 meters

• Provides a powerful and bundled light
• Suitable for illuminating tall elements up to 7.5 meters
• Crossable

Installation Notes/Instructions:

Big Flux & ring 68 Installation Manual

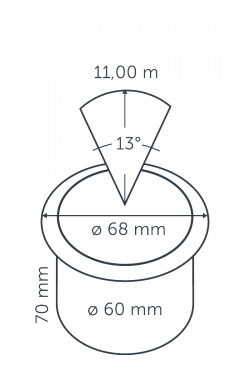

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60 mm. An in-lite dealer or landscaper can take care of this. Please note, only install the fixture in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.

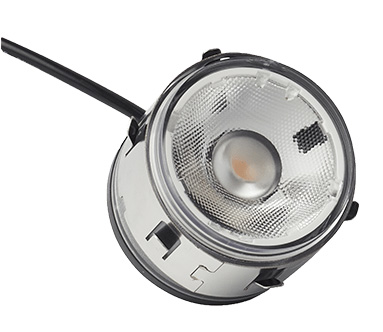

BIG FLUX features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX and is not available separately.

If you want to incorporate BIG FLUX into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX in SPIKE and prick the whole thing into the ground. BIG FLUX is also suitable for processing in accessory BOX-1.
