Big Flux Narrow

BIG FLUX NARROW, with its 13-degree angle of illumination and a light range of 11 meters, is ideally suited for illuminating narrow tall elements. BIG FLUX NARROW can be perfectly combined with the SPIKE accessory. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.

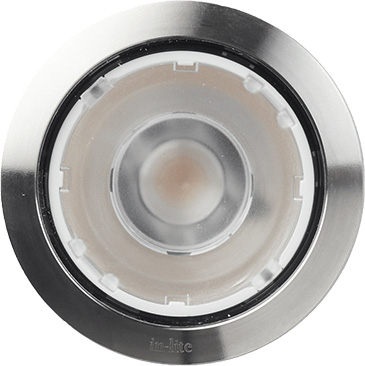

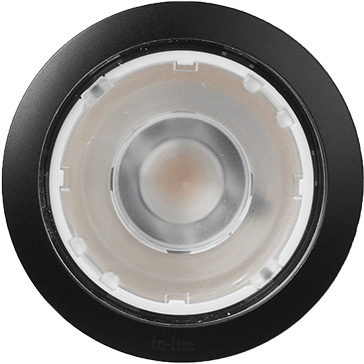

Available in 3 finishes. Black, Stainless Steel and Pearl Grey

The EASY-LOCK is supplied as standard with this fixture. The cable length on this luminaire is 60 cm.

Install a BIG FLUX NARROW every 2 to 2.5 meters

• Provides a powerful and narrow focused light

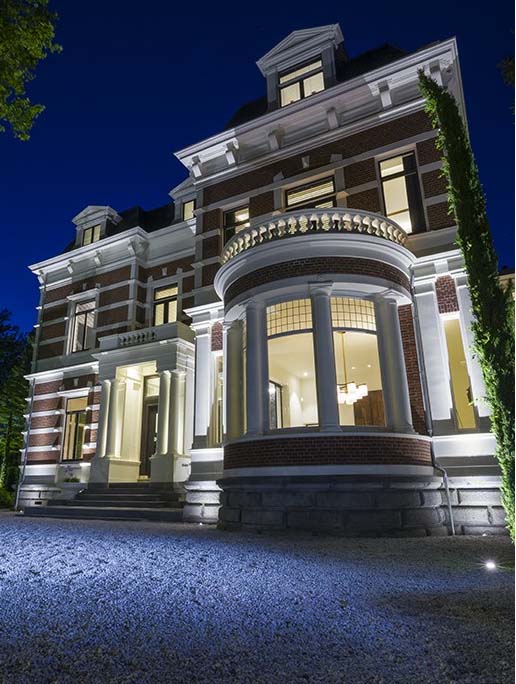

• Suitable for illuminating tall elements up to 11 meters
• Surmountable

Installation Notes/Instructions:

Big Flux & ring 68 Installation Manual

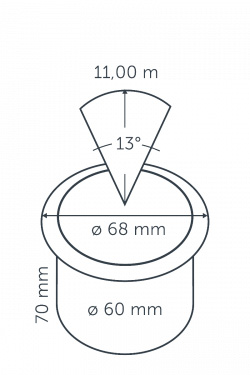

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60 mm. An in-lite dealer or landscaper can take care of this. Please note, only install the fixture in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.

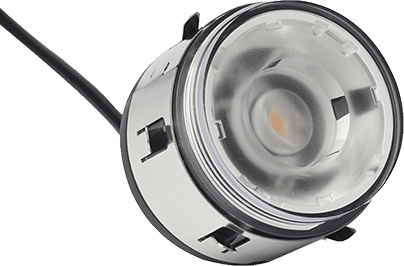

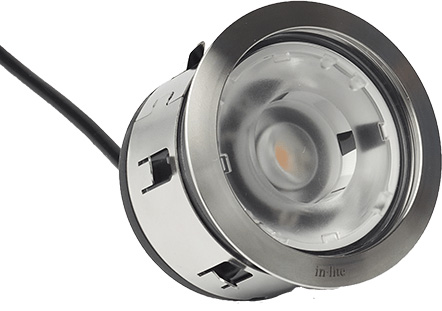

BIG FLUX NARROW features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX NARROW and is not available separately.
