Big Flux Asymmetric

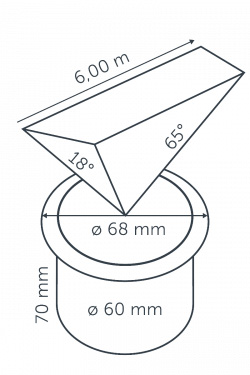

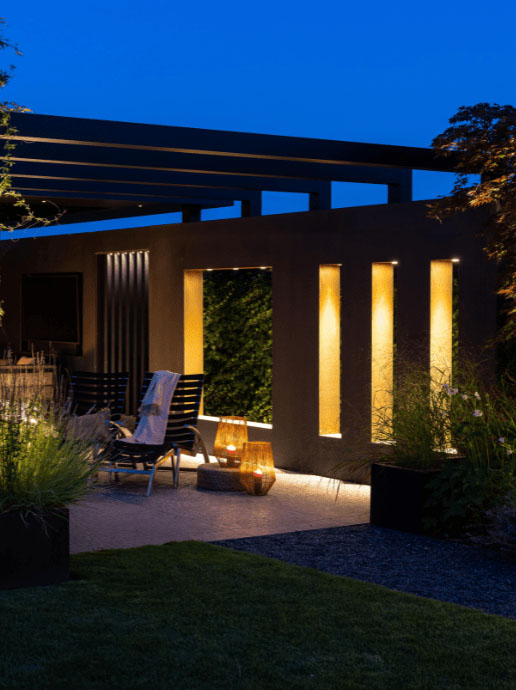

BIG FLUX ASYMMETRIC produces two different light images with its asymmetrical lens. In one direction, the light image is a wide fan with a light angle of 65 degrees and a light range of 6 meters. Turning the fixture 90 degrees creates a narrow stripe with and angle of light of 18 degrees and a light range of 6 meters high. Thus, this fixture uniquely illuminates the beams of a pergola, wide alcoves or passageways.

BIG FLUX ASYMMETRIC can be perfectly combined with accessory SPIKE. With this ground stake you easily place the ground spotlight in a loose surface such as earth, gravel or grass.

This fixture consists of BIG FLUX ASYMMETRIC and RING 68 (colour is based on light choice). The ring is made of high-quality anodized aluminum. BIG FLUX ASYMMETRIC is also suitable for incorporation into accessory BOX-1.

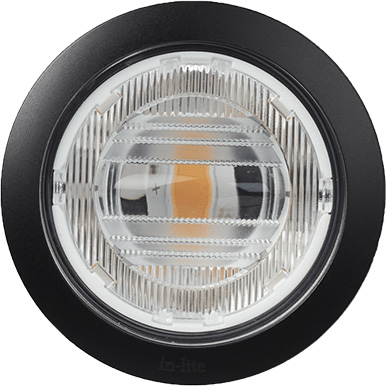

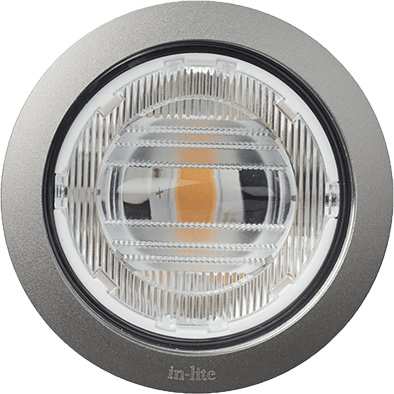

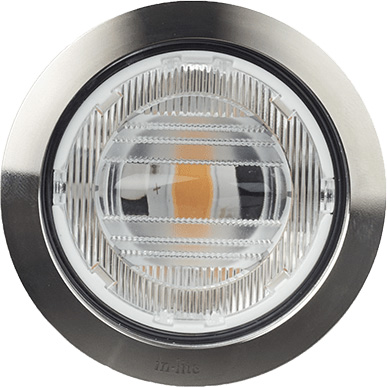

Available in 3 finishes. Black, Stainless Steel and Pearl Grey

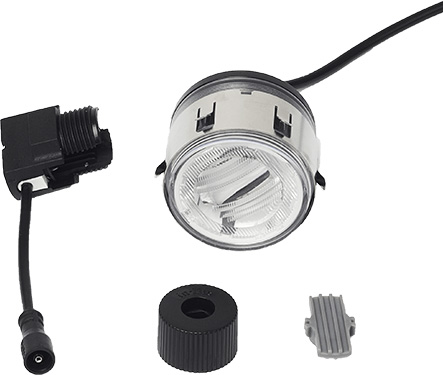

The EASY-LOCK is supplied as standard with this fixture. The cable length on this luminaire is 60 cm.

• Gives a wide streak of light
• Suitable for illuminating walls and pergolas
• Surmountable

Installation Notes/Instructions:

Big Flux & ring 68 Installation Manual

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60 mm. An in-lite dealer or landscaper can take care of this. Please note, install the fixture only in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.

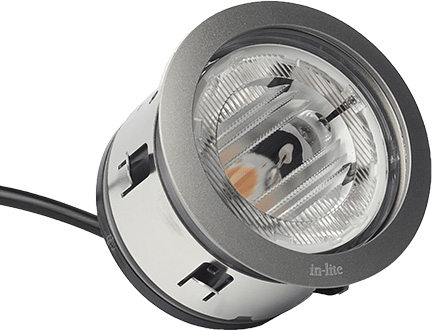

The BIG FLUX ASYMMETRIC features a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, no hammer is needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage.

The cup comes standard with the BIG FLUX ASYMMETRIC and is not available separately. If you want to incorporate BIG FLUX ASYMMETRIC into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX ASYMMETRIC in SPIKE and prick the whole thing into the ground.
