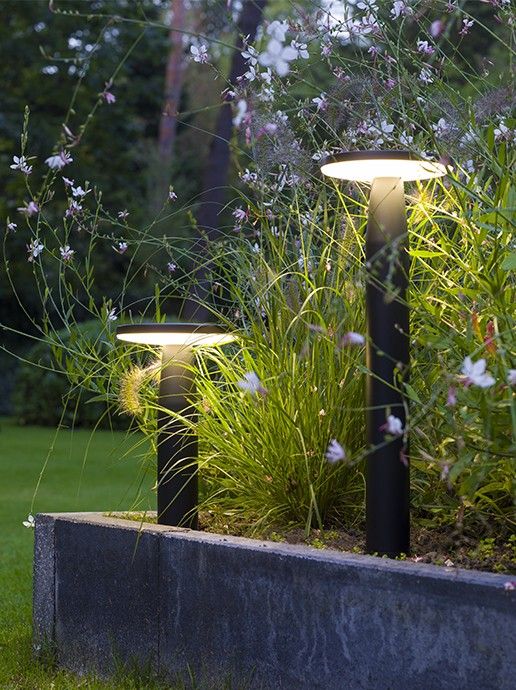

disc path 12V Bollard light installed in garden.

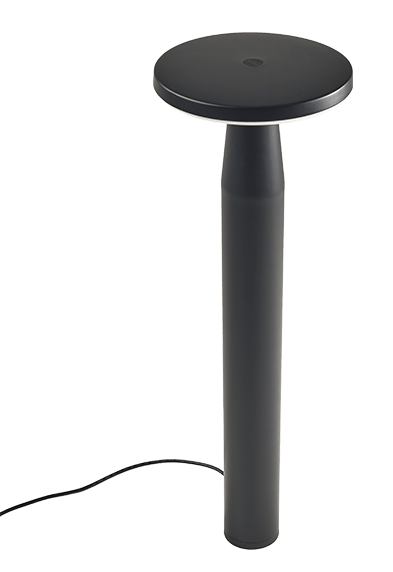

Disc 12V

New bollard from the DISC concept. The DISC is available with a height of 60 cm

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

At a height of 60 cm, the DISC is perfect for creating ambiance in borders and for use as indication lighting along paths
Made of aluminum with high-quality FCBV coating in the color Black
Easy to install in soil, grass or gravel using a ground pin

The DISC is a 60 cm bollard from the DISC concept. The DISC produces a downward shining diffuse lighting effect and can be connected to one of the in-lite 12V HUB transformers.

This product is multi-component and the components are packaged separately.

Installation Instructions:

Disc 12V Path light, installation guide

The DISC comes with a glass fiber-reinforced ground pin for easy installation in soil, grass or gravel. The TUBE bollard can also be screwed to a hard surface. The DISC can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.

Available Colours:

Black

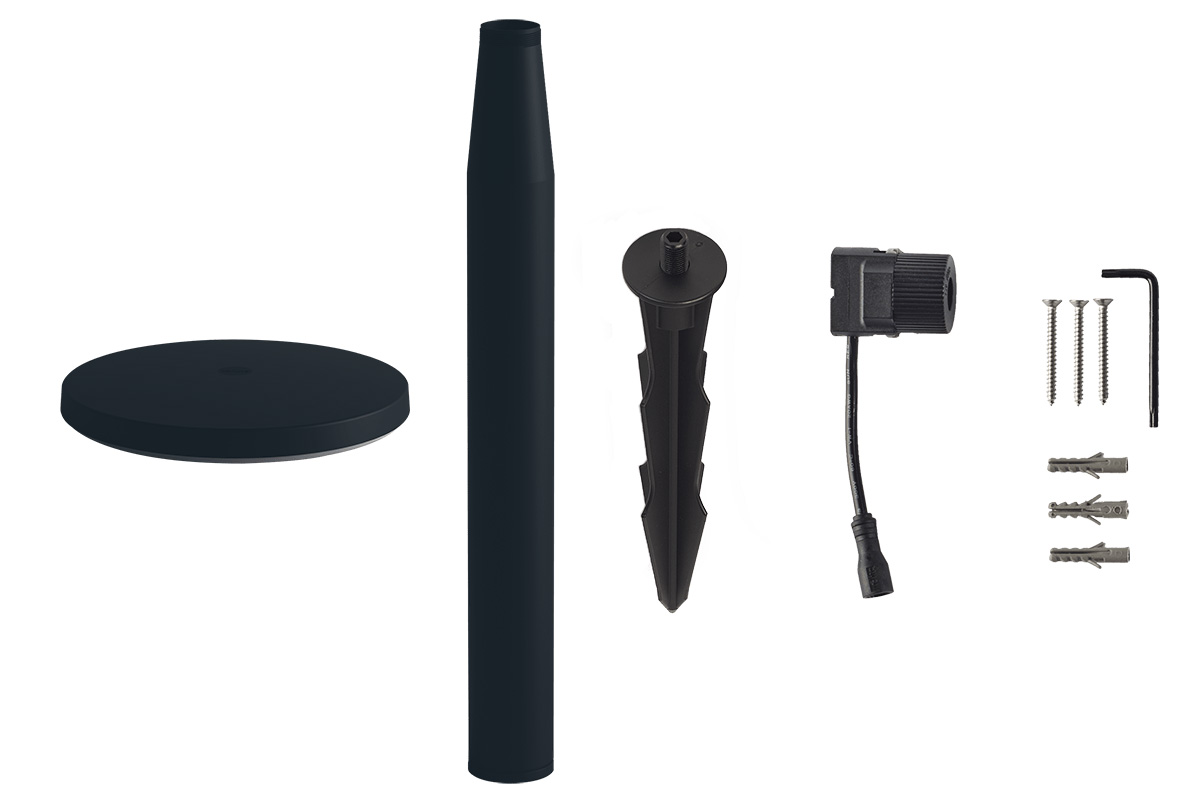

disc Bollard 12v light, package contents

Included, In the Box:

PART NO. 1: DISC LIGHT HEAD
730 mm Fixture cable
1x EASY-LOCK
PART NO. 2: 1x DISC TUBE
1x Ground pin
3x Nylon plug
3x Screw

Alternate Height Available:

DISC LIGHT HEAD #10202600

Combine with DISC TUBE LOW Black #10202640

Diameter	200mm \| 7.87 in
Height	36 mm \| 1.42 in
Housing Material	Aluminium FCBV
Dimmable	No
Voltage	12 V
Colours	Black
Application	Border
Power	2,9 W
Energy label	G
Electric potential	4,9 VA
Light source	LED
Burn time	25000
Light direction	Ambient
Lighting reach	3 m \| 9.84 ft
Light color	Warm white
Color temperature	2900 K
Net luminous flux	211 lm
Luminous Efficacy	70 lm/W
IP-class	55
CRI	98
Processing	Grass, Gravel, Soil
