in-lite Path Bollard lighting

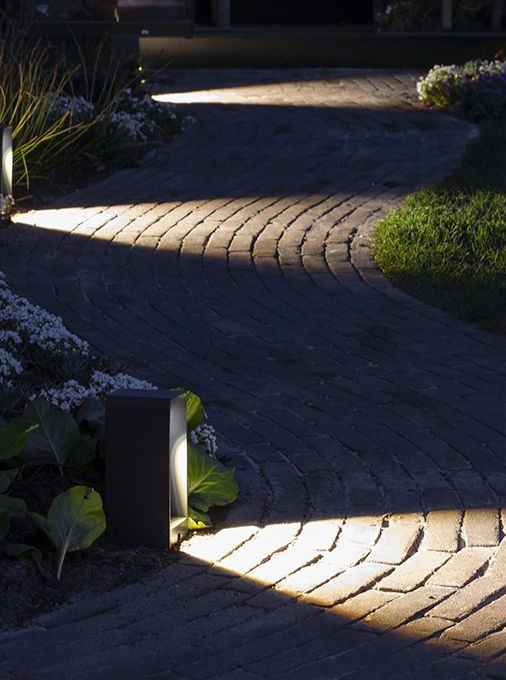

Ace path 12V Bollard light installed along walkway.

Ace Bollard 12V

The ACE  bollard provides a soft light that can be used to illuminate a path or driveway.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable.

  • Produces an attractive soft light
  • Designed for illuminating a driveway or walkway
  • Tilting light source

The light source in the fixture can be tilted. This makes the ACE perfect for highlighting a border, fence or other specific yard features.

Installation advice: Every 2 to 3 meters an ACE

Installation Instructions:

PDF Image icon Ace 12V Path light, installation guide

Use screws to mount on a hard surface or a stake to install in soft ground (both included).

Available Colours:

White, Rosé Silver, Dark Grey, Light Grey and Corten

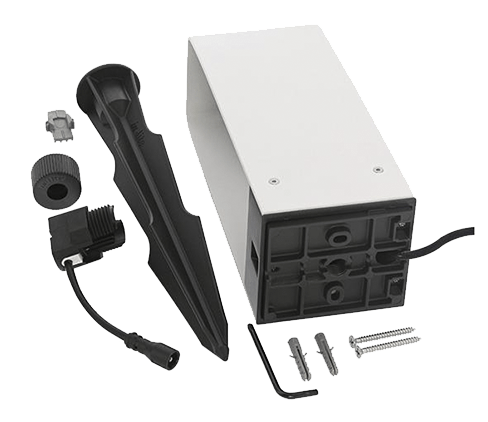

Ace Bollard 12v light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 1x Ground pin
  • 2x Screw
  • 2x Nylon plug
  • 1x Torx wrench
diagram of the Ace bollard light projection
Ace Bollard 12v light, package contents

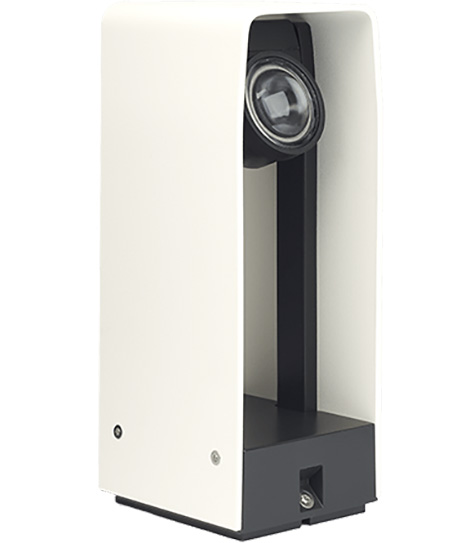

Ace bollard in White

white

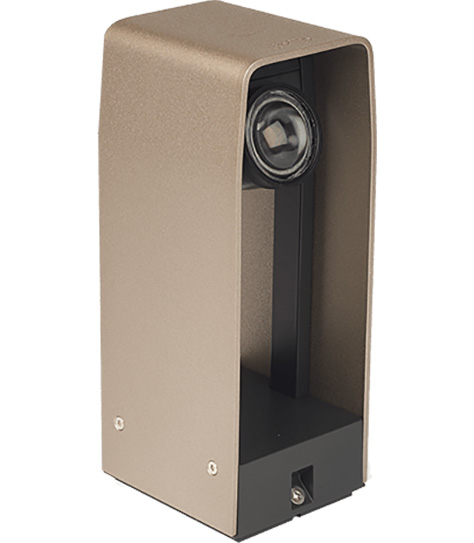

Ace bollard in Rose Silver

Rosé Silver

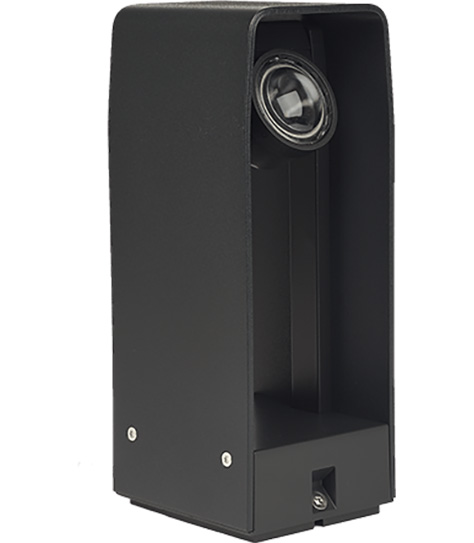

Ace bollard in Dark Grey

Dark Grey

Ace bollard Flat Grey, on

Flate Grey

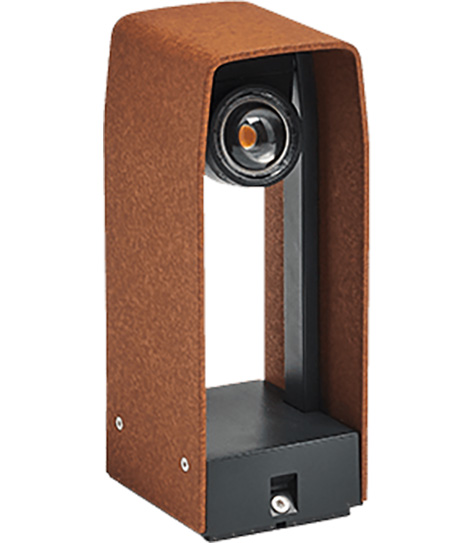

Ace bollard in Corten

Corten

Ace bollard in Corten

Specifications

length 86 mm | 3.39 in
Width 78 mm | 3.07 in
Height 205 mm | 8.07in
Housing Material Aluminum
Dimmable No
Voltage 12V
Colours White, Rosé Silver, Dark Grey, Light Grey and Corten
Application Border, Driveway, Deck
Power 3W
Energy label G
Electric potential 5.3VA
Light source LED
Burn time 25000
Light angle 63°
Light direction Adjustable
Lighting reach 3.5 m | 11.48 ft
Light color Warm white
Color temperature 3000K
Net luminous flux 173lm
Luminous Efficacy 58lm/W
IP-class 55
CRI 91
