in-lite Path Bollard lighting

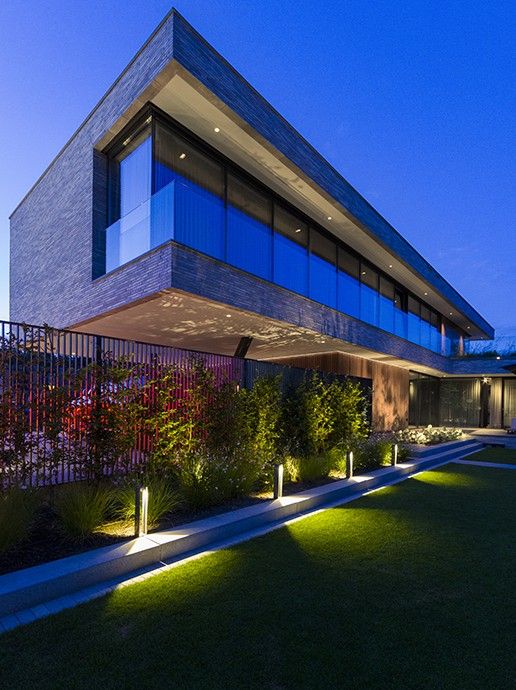

Ace high path 12V Bollard light installed along walkway.

Ace High Bollard 12V

The ACE HIGH bollard produces a downward dispersed light on two sides, making it perfect for use between plants and ornamental grasses.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

  • Produces an attractive downward light
  • Designed for illuminating vegetation, a driveway or walkway
  • Tilting light source

The fixture is around 50 cm high and has a light source that can be tilted 10 degrees. This lets you easily accent specific areas of the border without the light source being visible. ACE HIGH can easily be combined with the other outdoor lights in the ACE series.

Installation advice: Every 2 to 3 meters an ACE HIGH

Installation Instructions:

PDF Image icon Ace 12V Path light, installation guide

Installed with screws on hard surfaces or with a peg in a soft surfaces (both included). Important: The ACE HIGH produces a downward light on two sides. The light source in the fixture is can be tilted slightly (10 degrees). For a 90-degree tiltable soft light on one side, we recommend the ACE bollard.

Available Colours:

White, Rosé Silver, Dark Grey, Light Grey and Corten

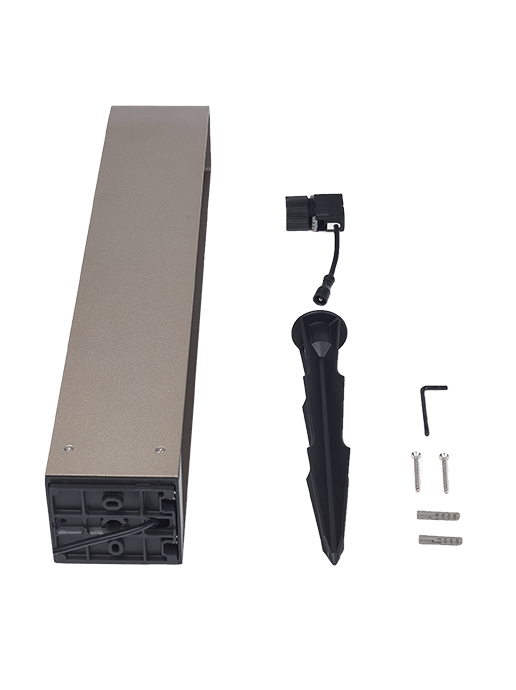

Ace High Bollard 12v light, package contents
Included, In the Box:
  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 1x Ground pin
  • 2x Screw
  • 2x Nylon plug
  • 1x Torx wrench

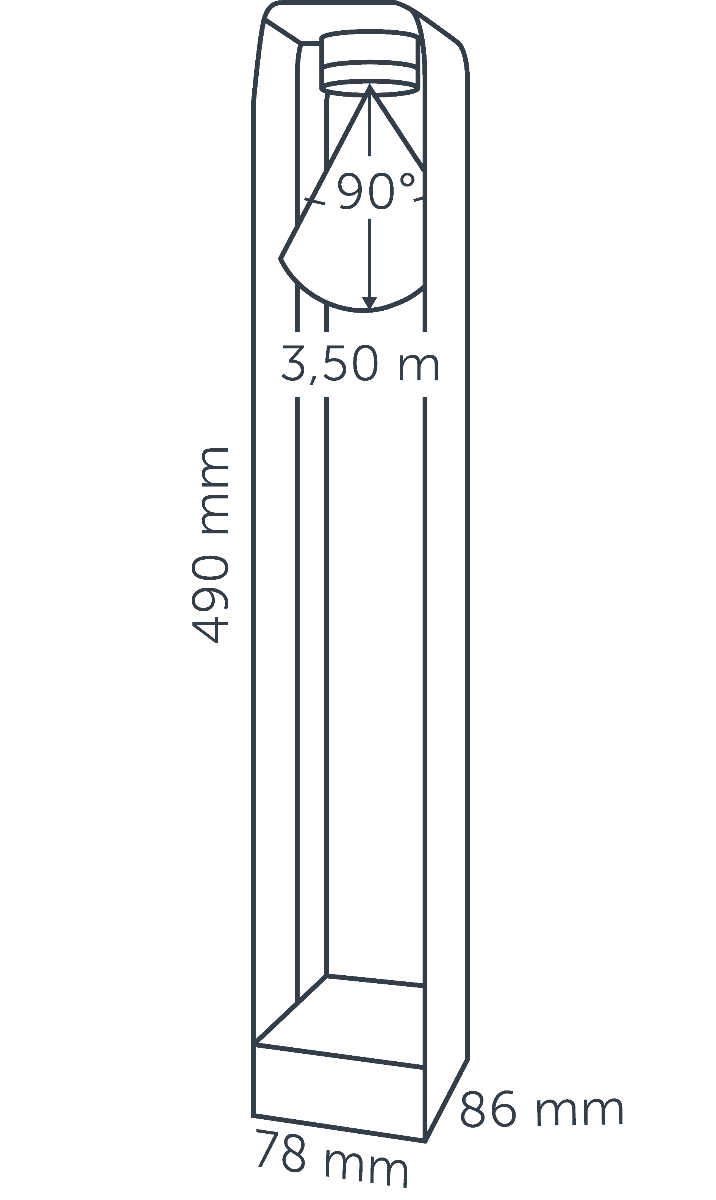

diagram of the Ace high bollard light projection

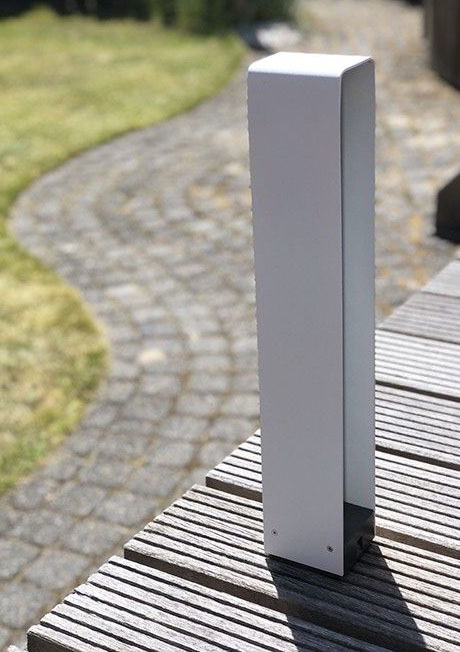

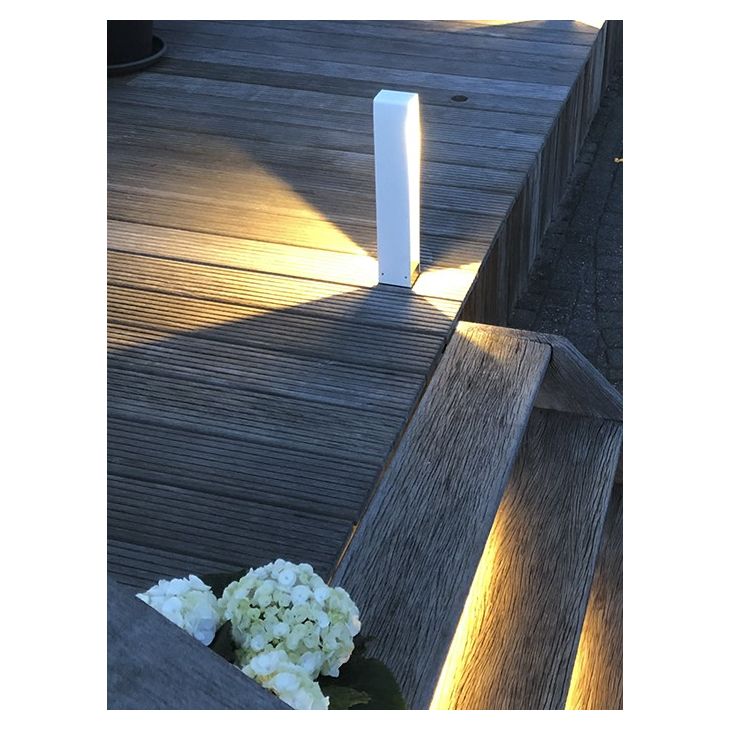

Ace High Bollard 12v light, fastened to deck, and illuminated

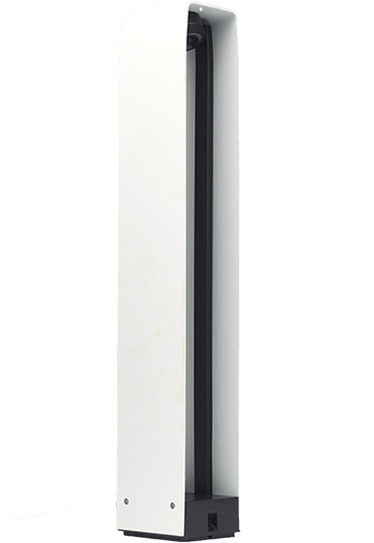

Ace high bollard in White

white

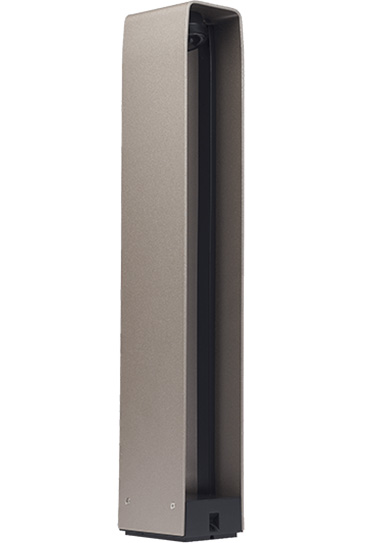

Ace high bollard in Rose Silver

Rosé Silver

Ace high bollard in Dark Grey

Dark Grey

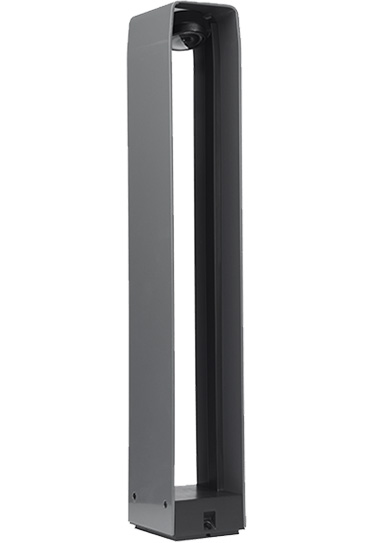

Ace high bollard Flat Grey, on

Flate Grey

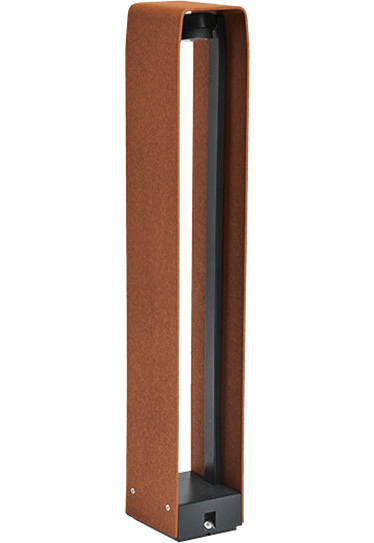

Ace high bollard in Corten

Corten

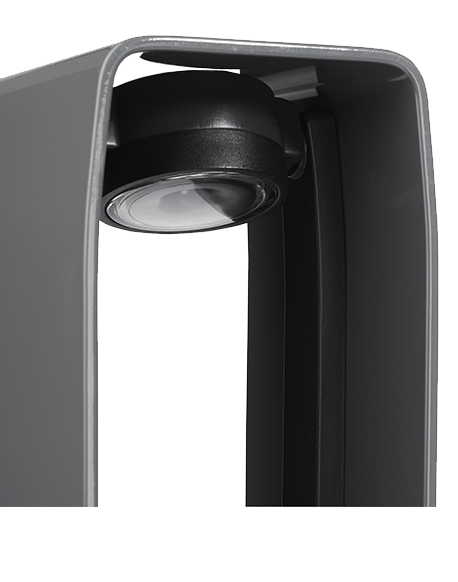

Ace high bollard in flat grey highlighting the lens

lens detail

Ace high bollard in flat grey highlighting the lens

White Ace high

Specifications

Product Number 10201810
length 86 mm | 3.39 in
Width 78 mm | 3.07 in
Height 490 mm | 19.29 in
Housing Material Aluminum
Dimmable No
Voltage 12V
Colours White, Rosé Silver, Dark Grey, Light Grey and Corten
Application Border, Driveway, Deck
Power 3W
Energy label G
Electric potential 5,3VA
Light source LED
Burn time 25000
Light angle 90°
Light direction Adjustable
Lighting reach 3,5 m | 9.84ft
Light color Warm white
Color temperature 3000K
Net luminous flux 85lm
Luminous Efficacy 28lm/W
IP-class 55
CRI 94
Processing Concrete, Grass, Gravel, Natural stone, Soil, Wood
EAN code 18717051005107
