pro plug fascia plugs & screws for Trex
Application
Hidden fastening system that securely fastens deck fascia and cladding while also allowing boards to expand and contract freely. Precision cut plugs are made from actual fascia material. Installation is a three-step process utilizing a predrilling tool and a setting tool (sold as a tool set) and screws and plugs. All components must be used together as instructed to ensure proper function.
Available Sizes

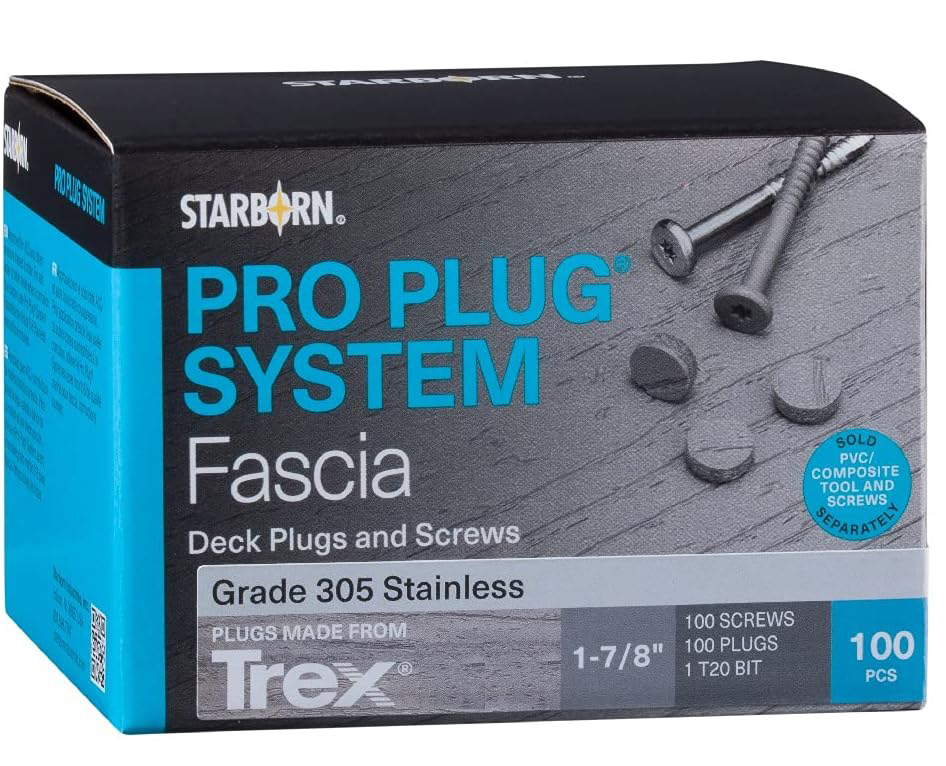

PRO PLUG® SYSTEM FASCIA - Epoxy Coated, grade 305- #9 x 1-7/8"
- 100pc
- Special order marine grade 316 stainless 100pcs
Fascia Screws, Plugs and Fascia Bit
T-20 Star Drive
Plugs made from actual fascia material to match perfectly.
Fascia Plug Tool for pre-drilling and PVC/Composite Tool for screw setting. (Sold Separately)
Starborn Industries Guide to Deck & Trim FasteningPro Plug Fascia Installation Guide
Features
- Fascia Plug Tool predrills an over-sized hole so that the board can expand and contract freely and provides a pre-set countersink that matches the diameter and depth of screw and plug
- Free spinning stop collar on Fascia Plug Tool prevents damage to the board surface
- PVC/Composite Tool with Fascia Bit sets screw to proper depth and eliminates overdriving screw
- Screws feature Type 17 auger tip for faster, easier insertion and to help prevent splitting
- Kit packaging includes screws and plugs (Fascia Plug Tool Set sold separately)
Installation - tool sold separately
Follow all fascia manufacturer instructions, including specifications for screw spacing, edge/ end distances, and gapping.
- Fit setting tool with application specific driver bit, marked “FSCA”.

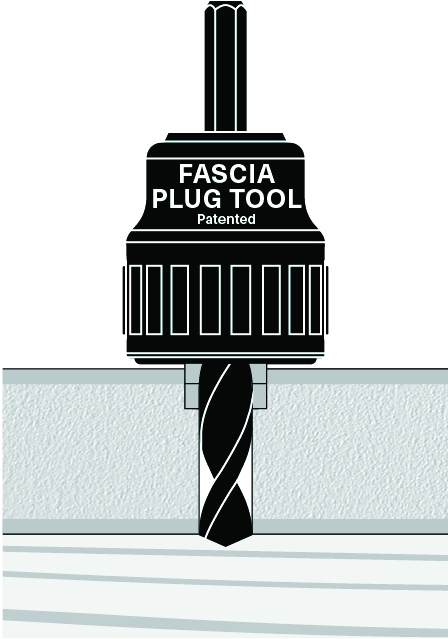

- Predrill with the Fascia Plug Tool until the collar stops spinning.

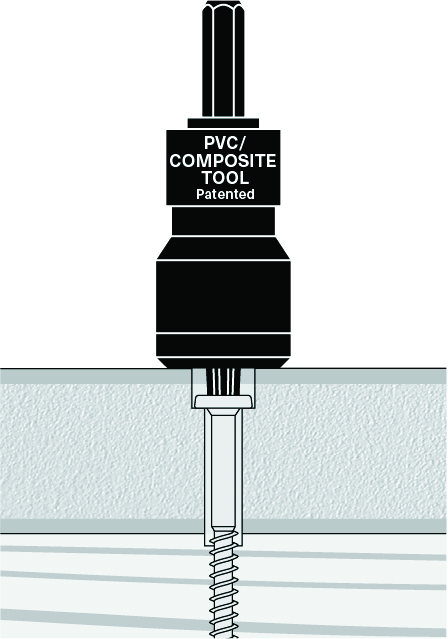

- Drive the screw with the PVC/Composite Tool using a standard drill on high speed.
- Do not use impact driver with setting tool.
- The setting tool’s Auto-Stop™ mechanism will make a “pop” sound when the screw is set to the correct depth. (Do not hesitate or slow down while driving.)

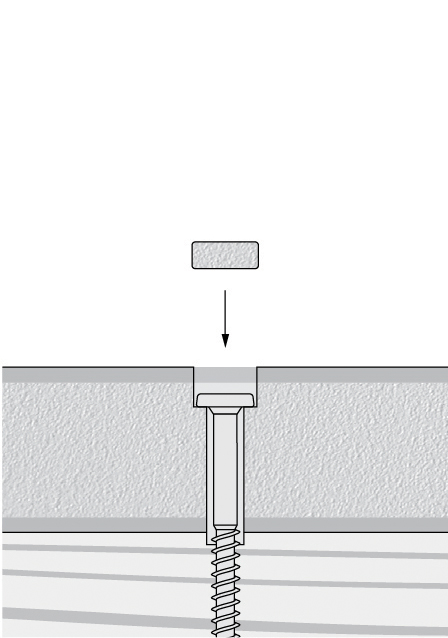

- Insert plug into hole and tap with a smooth-faced hammer until the plug is flush with board.
